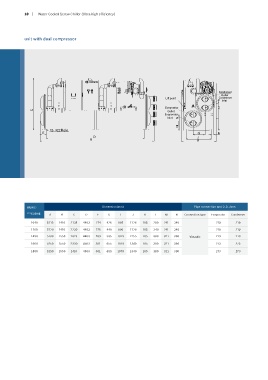

10 | Water Cooled Screw Chiller (Ultra-high efficiency)
unit with dual compressor
Condenser
Outlet
Lift point Condenser
Inlet
L
Evaporator
C Outlet
Evaporator
Inlet N I
M
12-Ф22Hole
E G K
D J
A B
WLWC- Dimension(mm) Pipe connection and O.D. /mm
***C3BHE A B C D E G I J K L M N Connection type Evaporator Condenser
1040 5115 1410 2135 4403 274 426 885 1128 105 280 241 340 219 219
1160 5120 1410 2230 4403 276 440 900 1128 105 340 241 340 219 219
1490 5130 1550 2325 4403 289 535 1019 1255 105 380 321 380 Victaulic 219 219
1660 5250 1550 2330 4503 301 655 1019 1340 105 380 321 380 273 273
1800 5250 1550 2410 4503 301 655 1079 1340 105 380 321 380 273 273
