Water Cooled Screw Chiller (Ultra-high efficiency) | 9

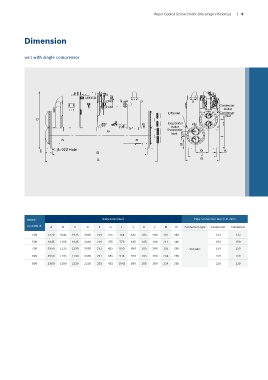

Dimension
unit with single compressor
Condenser
Outlet
Lift point Condenser
Inlet
C L
Evaporator
Outlet
Evaporator
Inlet
I
N
M
E 8-Ф22 Hole D G K
J
A B
WLWC- Dimension(mm) Pipe connection and O.D. /mm
xxxC3BHE A B C D E G I J K L M N Connection type Evaporator Condenser
500 3720 1045 1935 3030 239 375 764 835 105 240 201 240 133 133
590 3945 1105 1935 3330 239 375 775 835 105 240 212 240 159 159
730 3950 1115 2130 3330 251 425 853 890 105 240 191 280 Victaulic 159 159
800 3950 1195 2130 3330 251 385 916 920 105 280 234 280 159 159
890 3960 1200 2130 3330 251 455 1042 990 105 280 234 280 219 219
