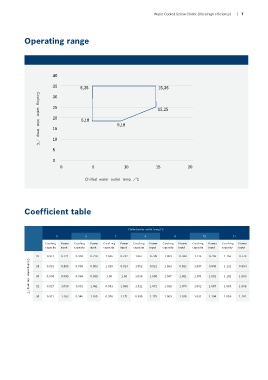

Water Cooled Screw Chiller (Ultra-high efficiency) | 7
Operating range
40
35 5,35 15,35
30
25 15,25
20 5,18
9,18
15
10
Cooling water inlet temp /℃
5
0
0 5 10 15 20
Chilled water outlet temp /℃
Coefficient table
Chilled water outlet temp/ ℃
5 6 7 8 9 10 11
Cooling Power Cooling Power C o o ling Power Cooling Power Cooling Power Cooling Power C o oling Power
capacity input capacity input capacity input capacity input capacity input capacity input capacity input
25 0.971 0.721 0.993 0.728 1.035 0.732 1.067 0.739 1.089 0.743 1.115 0.759 1.156 0.773
28 0.951 0.895 0.989 0.903 1.020 0.914 1.052 0.921 1.063 0.932 1.097 0.940 1.131 0.954
30 0.938 0.995 0.966 0.998 1.00 1.00 1.036 1.000 1.047 1.001 1.074 1.002 1.102 1.003
32 0.927 1.059 0.951 1.061 0.981 1.068 1.011 1.072 1.028 1.079 1.052 1.087 1.085 1.096
Cooling water inlet temp /℃
35 0.911 1.163 0.946 1.165 0.976 1.171 0.995 1.179 1.009 1.185 1.031 1.194 1.056 1.201
