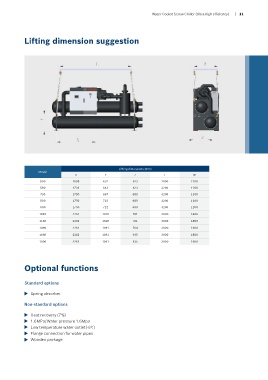

Water Cooled Screw Chiller (Ultra-high efficiency) | 11
Lifting dimension suggestion
Lifting dimensions (mm)
Model
X Y Z L W
500 1605 632 623 2800 1100
590 1726 643 623 3200 1200
730 1750 667 689 3200 1200
800 1750 722 689 3200 1200
890 1750 722 689 3200 1200
1040 2262 1018 701 3800 1600
1160 2262 1018 701 3800 1600
1490 2262 1091 764 3800 1600
1660 2262 1091 935 3800 1600
1800 2262 1091 935 3800 1600
Optional functions
Standard options
Spring absorber
Non-standard options
Heat recovery (7%)
1.6MPa/Water pressure 1.6Mpa
Low temperature water outlet(-6 ℃ )
Flange connection for water pipes
Wooden package
