iglidur M250 iglidur M250
®
®
+80°C +80°C
210MPa 210MPa

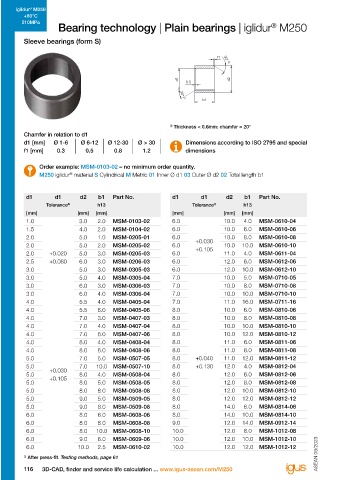

Bearing technology | Plain bearings | iglidur M250 Product range
®
Sleeve bearings (form S) d1 d1 d2 b1 Part No. d1 d1 d2 b1 Part No.

Tolerance 3) h13 Tolerance 3) h13
f1 30°
[mm] [mm] [mm] [mm] [mm] [mm]
10.0 12.0 15.0 MSM-1012-15 16.0 21.0 7.0 MSM-1621-07
10.0 12.0 20.0 MSM-1012-20 16.0 22.0 12.0 MSM-1622-12
d1 0.5 d2 10.0 14.0 6.0 MSM-1014-06 16.0 22.0 15.0 MSM-1622-15
10.0 14.0 8.0 MSM-1014-08 16.0 22.0 16.0 MSM-1622-16
30°
b1 10.0 +0.040 14.0 10.0 MSM-1014-10 16.0 22.0 20.0 MSM-1622-20
10.0 +0.130 14.0 16.0 MSM-1014-16 16.0 +0.050 22.0 25.0 MSM-1622-25
10.0 16.0 6.0 MSM-1016-06 18.0 +0.160 20.0 15.0 MSM-1820-15
10.0 16.0 8.0 MSM-1016-08 18.0 20.0 20.0 MSM-1820-20
2) Thickness < 0.6mm: chamfer = 20°
Chamfer in relation to d1 10.0 16.0 10.0 MSM-1016-10 18.0 20.0 25.0 MSM-1820-25
d1 [mm] Ø 1-6 Ø 6-12 Ø 12-30 Ø > 30 Dimensions according to ISO 2795 and special 10.0 16.0 16.0 MSM-1016-16 18.0 24.0 12.0 MSM-1824-12
f1 [mm] 0.3 0.5 0.8 1.2 dimensions 10.0 16.0 50.0 MSM-1016-50 18.0 24.0 20.0 MSM-1824-20
12.0 14.0 10.0 MSM-1214-10 18.0 24.0 30.0 MSM-1824-30
Order example: MSM-0103-02 – no minimum order quantity. 12.0 14.0 12.0 MSM-1214-12 18.0 24.0 40.0 MSM-1824-40
M250 iglidur material S Cylindrical M Metric 01 Inner Ø d1 03 Outer Ø d2 02 Total length b1 12.0 14.0 15.0 MSM-1214-15 20.0 23.0 10.0 MSM-2023-10
®
12.0 14.0 20.0 MSM-1214-20 20.0 23.0 15.0 MSM-2023-15
12.0 16.0 15.0 MSM-1216-15 20.0 23.0 20.0 MSM-2023-20
d1 d1 d2 b1 Part No. d1 d1 d2 b1 Part No. 12.0 16.0 20.0 MSM-1216-20 20.0 23.0 25.0 MSM-2023-25
Tolerance 3) h13 Tolerance 3) h13 12.0 18.0 8.0 MSM-1218-08 20.0 23.0 30.0 MSM-2023-30
[mm] [mm] [mm] [mm] [mm] [mm] 12.0 18.0 10.0 MSM-1218-10 20.0 25.0 14.0 MSM-2025-14
1.0 3.0 2.0 MSM-0103-02 6.0 10.0 4.0 MSM-0610-04 12.0 18.0 15.0 MSM-1218-15 20.0 25.0 20.0 MSM-2025-20
1.5 4.0 2.0 MSM-0104-02 6.0 10.0 6.0 MSM-0610-06 12.0 18.0 20.0 MSM-1218-20 20.0 25.0 30.0 MSM-2025-30
2.0 5.0 1.0 MSM-0205-01 6.0 +0.030 10.0 8.0 MSM-0610-08 13.0 15.0 10.0 MSM-1315-10 20.0 26.0 12.0 MSM-2026-12
2.0 5.0 2.0 MSM-0205-02 6.0 +0.105 10.0 10.0 MSM-0610-10 13.0 15.0 20.0 MSM-1315-20 20.0 26.0 15.0 MSM-2026-15
2.0 +0.020 5.0 3.0 MSM-0205-03 6.0 11.0 4.0 MSM-0611-04 14.0 16.0 8.5 MSM-1416-085 20.0 26.0 20.0 MSM-2026-20
2.5 +0.080 6.0 3.0 MSM-0206-03 6.0 12.0 6.0 MSM-0612-06 14.0 16.0 10.0 MSM-1416-10 20.0 26.0 30.0 MSM-2026-30
3.0 5.0 3.0 MSM-0305-03 6.0 12.0 10.0 MSM-0612-10 14.0 16.0 15.0 MSM-1416-15 22.0 24.0 8.0 MSM-2224-08
3.0 5.0 4.0 MSM-0305-04 7.0 10.0 5.0 MSM-0710-05 14.0 16.0 20.0 MSM-1416-20 22.0 25.0 15.0 MSM-2225-15
3.0 6.0 3.0 MSM-0306-03 7.0 10.0 8.0 MSM-0710-08 14.0 16.0 25.0 MSM-1416-25 22.0 25.0 20.0 MSM-2225-20
3.0 6.0 4.0 MSM-0306-04 7.0 10.0 10.0 MSM-0710-10 14.0 +0.050 16.0 29.0 MSM-1416-29 22.0 25.0 25.0 MSM-2225-25
4.0 5.5 4.0 MSM-0405-04 7.0 11.0 16.0 MSM-0711-16 14.0 +0.160 18.0 20.0 MSM-1418-20 22.0 +0.065 25.0 30.0 MSM-2225-30
4.0 5.5 6.0 MSM-0405-06 8.0 10.0 6.0 MSM-0810-06 14.0 20.0 10.0 MSM-1420-10 22.0 +0.195 26.0 15.0 MSM-2226-15
4.0 7.0 3.0 MSM-0407-03 8.0 10.0 8.0 MSM-0810-08 14.0 20.0 15.0 MSM-1420-15 22.0 28.0 10.0 MSM-2228-10
4.0 7.0 4.0 MSM-0407-04 8.0 10.0 10.0 MSM-0810-10 14.0 20.0 20.0 MSM-1420-20 22.0 28.0 15.0 MSM-2228-15
4.0 7.0 6.0 MSM-0407-06 8.0 10.0 12.0 MSM-0810-12 15.0 17.0 10.0 MSM-1517-10 22.0 28.0 20.0 MSM-2228-20
4.0 8.0 4.0 MSM-0408-04 8.0 11.0 6.0 MSM-0811-06 15.0 17.0 15.0 MSM-1517-15 22.0 28.0 30.0 MSM-2228-30
4.0 8.0 6.0 MSM-0408-06 8.0 11.0 8.0 MSM-0811-08 15.0 17.0 20.0 MSM-1517-20 24.0 27.0 15.0 MSM-2427-15
5.0 7.0 5.0 MSM-0507-05 8.0 +0.040 11.0 12.0 MSM-0811-12 15.0 17.0 25.0 MSM-1517-25 24.0 27.0 20.0 MSM-2427-20
5.0 +0.030 7.0 10.0 MSM-0507-10 8.0 +0.130 12.0 4.0 MSM-0812-04 15.0 21.0 10.0 MSM-1521-10 24.0 27.0 25.0 MSM-2427-25
5.0 +0.105 8.0 4.0 MSM-0508-04 8.0 12.0 6.0 MSM-0812-06 15.0 21.0 15.0 MSM-1521-15 24.0 27.0 30.0 MSM-2427-30
5.0 8.0 5.0 MSM-0508-05 8.0 12.0 8.0 MSM-0812-08 15.0 21.0 20.0 MSM-1521-20 24.0 30.0 15.0 MSM-2430-15
5.0 8.0 8.0 MSM-0508-08 8.0 12.0 10.0 MSM-0812-10 15.0 21.0 23.0 MSM-1521-23 24.0 30.0 20.0 MSM-2430-20
5.0 9.0 5.0 MSM-0509-05 8.0 12.0 12.0 MSM-0812-12 16.0 18.0 12.0 MSM-1618-12 24.0 30.0 30.0 MSM-2430-30
5.0 9.0 8.0 MSM-0509-08 8.0 14.0 6.0 MSM-0814-06 16.0 18.0 15.0 MSM-1618-15 25.0 28.0 12.0 MSM-2528-12
6.0 8.0 6.0 MSM-0608-06 8.0 14.0 10.0 MSM-0814-10 16.0 18.0 20.0 MSM-1618-20 25.0 28.0 15.0 MSM-2528-15
6.0 8.0 8.0 MSM-0608-08 9.0 12.0 14.0 MSM-0912-14 16.0 18.0 25.0 MSM-1618-25 25.0 28.0 20.0 MSM-2528-20
6.0 8.0 10.0 MSM-0608-10 10.0 12.0 8.0 MSM-1012-08 16.0 20.0 20.0 MSM-1620-20 25.0 28.0 25.0 MSM-2528-25
6.0 9.0 6.0 MSM-0609-06 10.0 12.0 10.0 MSM-1012-10 16.0 20.0 25.0 MSM-1620-25 25.0 28.0 30.0 MSM-2528-30
6.0 10.0 2.5 MSM-0610-02 10.0 12.0 12.0 MSM-1012-12 16.0 20.0 30.0 MSM-1620-30 25.0 30.0 20.0 MSM-2530-20

3) After press-fit. Testing methods, page 61 ASEAN 09/2023 ASEAN 09/2023 3) After press-fit. Testing methods, page 61
116 3D-CAD, finder and service life calculation ... www.igus-asean.com/M250 Lubrication-free made easy ... from stock ... no minimum order quantity 117
