iglidur M250
®
+80°C
210MPa
Bearing technology | Plain bearings | iglidur M250
®

d1 d1 d2 d3 b1 b2 Part No. d1 d1 d2 d3 b1 b2 Part No.
Tolerance 3) d13 3) h13 h13 Tolerance 3) d13 3) h13 h13
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]
12.0 14.0 20.0 7.0 1.00 MFM-1214-07 19.0 24.0 27.0 12.0 2.00 MFM-192427-12
12.0 14.0 20.0 9.0 1.00 MFM-1214-09 20.0 23.0 30.0 11.5 1.50 MFM-2023-11
12.0 14.0 20.0 12.0 1.00 MFM-1214-12 20.0 23.0 30.0 16.5 1.50 MFM-2023-16
12.0 14.0 20.0 17.0 1.00 MFM-1214-17 20.0 23.0 30.0 21.5 1.50 MFM-2023-21
12.0 16.0 22.0 10.0 2.00 MFM-1216-10 20.0 26.0 28.0 12.0 3.00 MFM-202628-12
12.0 16.0 22.0 20.0 2.00 MFM-1216-20 20.0 26.0 32.0 15.0 3.00 MFM-2026-15
12.0 18.0 24.0 8.0 3.00 MFM-1218-08 20.0 26.0 32.0 20.0 3.00 MFM-2026-20
12.0 18.0 22.0 10.0 3.00 MFM-1218-10 20.0 26.0 32.0 30.0 3.00 MFM-2026-30
12.0 18.0 24.0 12.0 3.00 MFM-1218-12 22.0 28.0 34.0 15.0 3.00 MFM-2228-15
12.0 18.0 22.0 15.0 3.00 MFM-1218-15 22.0 28.0 34.0 20.0 3.00 MFM-2228-20
12.0 18.0 22.0 20.0 3.00 MFM-1218-20 22.0 28.0 34.0 30.0 3.00 MFM-2228-30
13.0 15.0 20.0 14.0 2.00 MFM-1315-14 24.0 30.0 36.0 15.0 3.00 MFM-2430-15
13.0 16.0 24.0 8.0 2.00 MFM-131624-08 24.0 30.0 36.0 20.0 3.00 MFM-2430-20

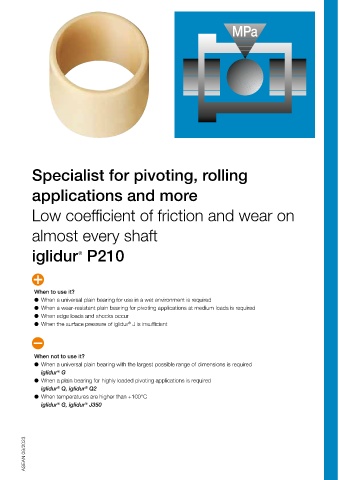

14.0 16.0 22.0 12.0 1.00 MFM-1416-12 24.0 30.0 36.0 30.0 3.00 MFM-2430-30 Specialist for pivoting, rolling
14.0 16.0 22.0 17.0 1.00 MFM-1416-17 25.0 28.0 35.0 11.5 1.50 MFM-2528-11
14.0 20.0 25.0 7.0 3.00 MFM-1420-07 25.0 28.0 35.0 16.5 1.50 MFM-2528-16
14.0 20.0 25.0 10.0 3.00 MFM-1420-10 25.0 +0.065 28.0 35.0 21.5 1.50 MFM-2528-21 applications and more
14.0 20.0 25.0 15.0 3.00 MFM-1420-15 25.0 +0.195 32.0 38.0 12.0 4.00 MFM-2532-12
14.0 20.0 25.0 20.0 3.00 MFM-1420-20 25.0 32.0 38.0 15.0 4.00 MFM-2532-15 Low coefficient of friction and wear on
15.0 17.0 23.0 9.0 1.00 MFM-1517-09 25.0 32.0 38.0 20.0 4.00 MFM-2532-20
15.0 +0.050 17.0 23.0 12.0 1.00 MFM-1517-12 25.0 32.0 38.0 30.0 4.00 MFM-2532-30
15.0 +0.160 17.0 23.0 17.0 1.00 MFM-1517-17 25.0 32.0 38.0 40.0 4.00 MFM-2532-40 almost every shaft
15.0 21.0 27.0 10.0 3.00 MFM-1521-10 27.0 34.0 40.0 20.0 4.00 MFM-2734-20
15.0 21.0 27.0 15.0 3.00 MFM-1521-15 27.0 34.0 40.0 30.0 4.00 MFM-2734-30 iglidur P210
®
15.0 21.0 27.0 20.0 3.00 MFM-1521-20 27.0 34.0 40.0 40.0 4.00 MFM-2734-40
15.0 21.0 27.0 25.0 3.00 MFM-1521-25 28.0 36.0 42.0 20.0 4.00 MFM-2836-20
16.0 18.0 28.0 8.0 2.00 MFM-1618-08/02 28.0 36.0 42.0 30.0 4.00 MFM-2836-30
16.0 18.0 24.0 12.0 1.00 MFM-1618-12 28.0 36.0 42.0 40.0 4.00 MFM-2836-40
16.0 18.0 24.0 17.0 1.00 MFM-1618-17 30.0 34.0 42.0 16.0 2.00 MFM-3034-16 When to use it?
16.0 22.0 28.0 12.0 3.00 MFM-1622-12 30.0 34.0 42.0 26.0 2.00 MFM-3034-26 ● When a universal plain bearing for use in a wet environment is required
16.0 22.0 28.0 15.0 3.00 MFM-1622-15 30.0 35.0 44.0 20.0 4.00 MFM-3035-20 ● When a wear-resistant plain bearing for pivoting applications at medium loads is required
16.0 22.0 28.0 20.0 3.00 MFM-1622-20 30.0 38.0 44.0 20.0 4.00 MFM-3038-20 ● When edge loads and shocks occur
®
16.0 22.0 28.0 25.0 3.00 MFM-1622-25 30.0 38.0 44.0 30.0 4.00 MFM-3038-30 ● When the surface pressure of iglidur J is insufficient
18.0 20.0 26.0 12.0 1.00 MFM-1820-12 30.0 38.0 44.0 40.0 4.00 MFM-3038-40
18.0 20.0 26.0 17.0 1.00 MFM-1820-17 32.0 40.0 46.0 20.0 4.00 MFM-3240-20
18.0 20.0 26.0 22.0 1.00 MFM-1820-22 32.0 40.0 46.0 30.0 4.00 MFM-3240-30
18.0 24.0 26.0 7.8 3.00 MFM-182426-078 32.0 40.0 46.0 40.0 4.00 MFM-3240-40 When not to use it?
18.0 24.0 30.0 8.0 3.00 MFM-1824-08 35.0 +0.080 39.0 47.0 16.0 2.00 MFM-3539-16 ● When a universal plain bearing with the largest possible range of dimensions is required
®
18.0 24.0 30.0 12.0 3.00 MFM-1824-12 35.0 +0.240 39.0 47.0 26.0 2.00 MFM-3539-26 iglidur G
18.0 24.0 30.0 18.0 3.00 MFM-1824-18 40.0 44.0 52.0 30.0 2.00 MFM-4044-30 ● When a plain bearing for highly loaded pivoting applications is required
®
®
18.0 24.0 30.0 20.0 3.00 MFM-1824-20 40.0 44.0 52.0 40.0 2.00 MFM-4044-40 iglidur Q, iglidur Q2
18.0 24.0 30.0 30.0 3.00 MFM-1824-30 45.0 50.0 58.0 50.0 2.00 MFM-4550-50 ● When temperatures are higher than +100°C
®
®
iglidur G, iglidur J350
3) After press-fit. Testing methods, page 61

ASEAN 09/2023 ASEAN 09/2023

120 3D-CAD, finder and service life calculation ... www.igus-asean.com/M250
