iglidur P210 iglidur P210
®
®
+100°C +100°C
50MPa 50MPa

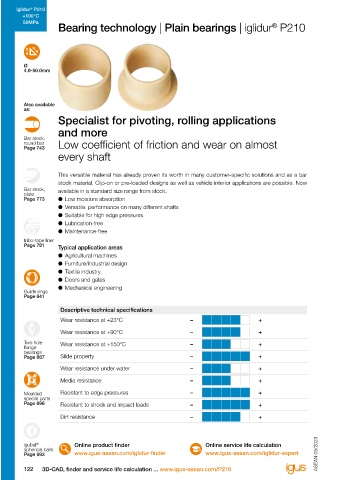

Bearing technology | Plain bearings | iglidur P210 Technical data
®
General properties Testing method

Density g/cm³ 1.40 -40°C up to
Ø Colour yellow +100°C
4.0-50.0mm
Max. moisture absorption at +23°C/50% r.h. % weight 0.3 DIN 53495
Max. moisture absorption % weight 0.5
Coefficient of friction, dynamic, against steel µ 0.07-0.19 50MPa
pv value, max. (dry) MPa · m/s 0.40
Also available
as: Mechanical properties
Specialist for pivoting, rolling applications Flexural modulus MPa 2,500 DIN 53457
Flexural strength at +20°C
DIN 53452
70
MPa
and more Compressive strength MPa 50
Bar stock, Max. permissible surface pressure (+20°C) MPa 50
round bar Low coefficient of friction and wear on almost
Page 743 Shore D hardness 75 DIN 53505
every shaft Physical and thermal properties
Max. application temperature long-term °C +100
FOOD
This versatile material has already proven its worth in many customer-specific solutions and as a bar Max. application temperature short-term °C +160
stock material. Clip-on or pre-loaded designs as well as vehicle interior applications are possible. Now Min. application temperature °C -40
Bar stock, available in a standard size range from stock. Thermal conductivity W/m · K 0.25 ASTM C 177
plate -1 -5
Page 773 ● Low moisture absorption Coefficient of thermal expansion (at +23°C) K · 10 8 DIN 53752
● Versatile: performance on many different shafts Electrical properties
● Suitable for high edge pressures Specific transitional resistance Ωcm > 10 12 DIN IEC 93
● Lubrication-free Surface resistance Ω > 10 11 DIN 53482
● Maintenance-free Table 01: Material properties
tribo-tape liner
Page 781 Typical application areas iglidur P210 plain bearings provide the user with versatile Resistance to weathering
®
®
● Agricultural machines all-round bearings, which have proven to have above iglidur P210 plain bearings are continuously resistant
● Furniture/Industrial design average service life, primarily in pivoting applications at to weathering. The material properties are only slightly
● Textile industry medium loads of up to 20MPa. affected. Possible discolourations are only superficial.
● Doors and gates
● Mechanical engineering Moisture absorption Mechanical properties
Guide rings
®
Page 641 The humidity absorption of iglidur P210 bearings amounts With increasing temperatures, the compressive strength of
to about 0.3 % weight in standard climatic conditions. iglidur P210 plain bearings decreases. Diagram 02 shows
®
Descriptive technical specifications The saturation limit submerged in water is 0.5% weight. this inverse relationship. The maximum recommended
Wear resistance at +23°C – + This low moisture absorption is well below the values of surface pressure is a mechanical material parameter. No
iglidur G. conclusions regarding the tribological properties can be
®
Wear resistance at +90°C – +
drawn from this.
Two hole Wear resistance at +150°C – + Vacuum Diagram 03 shows the elastic deformation of iglidur P210
®
flange
bearings In vacuum, any present moisture is released as vapour. as a function of radial pressure. At the recommended
Page 667 Slide property – +
The use in vacuum is only possible to a limited extent. maximum surface pressure of 50MPa the deformation is
Wear resistance under water – + less than 3% at room temperature.
Radiation resistance Surface pressure, page 45
Media resistance – +
Plain bearings made from iglidur P210 have limited use
®
Moulded Resistant to edge pressures – + under radioactive radiation. They are resistant up to a
special parts radiation intensity of 3 - 10² Gy.
Page 696 Resistant to shock and impact loads – +

Dirt resistance – +

®
igubal Online product finder Online service life calculation
spherical balls
Page 993 www.igus-asean.com/iglidur-finder www.igus-asean.com/iglidur-expert ASEAN 09/2023 ASEAN 09/2023
122 3D-CAD, finder and service life calculation ... www.igus-asean.com/P210 Lubrication-free made easy ... from stock ... no minimum order quantity 123
