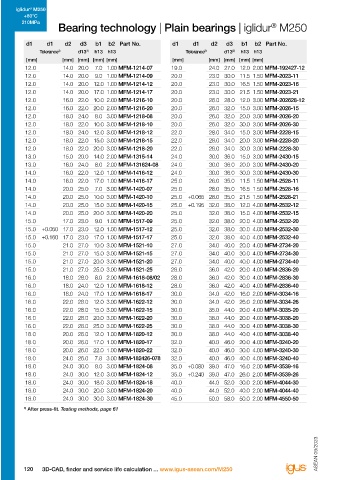

iglidur  M250
            ®
          +80°C
         210MPa
                      Bearing technology | Plain bearings | iglidur  M250
                                                                                                 ®

           d1     d1    d2    d3   b1   b2 Part No.           d1     d1    d2    d3   b1   b2 Part No.
               Tolerance 3)  d13 3)  h13  h13                      Tolerance 3)  d13 3)  h13  h13
           [mm]        [mm] [mm] [mm] [mm]                    [mm]         [mm] [mm] [mm] [mm]
          12.0          14.0 20.0  7.0 1.00 MFM-1214-07       19.0         24.0 27.0 12.0 2.00 MFM-192427-12
          12.0          14.0 20.0  9.0 1.00 MFM-1214-09       20.0         23.0 30.0 11.5 1.50 MFM-2023-11
          12.0          14.0 20.0 12.0 1.00 MFM-1214-12       20.0         23.0 30.0 16.5 1.50 MFM-2023-16
          12.0          14.0 20.0 17.0 1.00 MFM-1214-17       20.0         23.0 30.0 21.5 1.50 MFM-2023-21
          12.0          16.0 22.0 10.0 2.00 MFM-1216-10       20.0         26.0 28.0 12.0 3.00 MFM-202628-12
          12.0          16.0 22.0 20.0 2.00 MFM-1216-20       20.0         26.0 32.0 15.0 3.00 MFM-2026-15
          12.0          18.0 24.0  8.0 3.00 MFM-1218-08       20.0         26.0 32.0 20.0 3.00 MFM-2026-20
          12.0          18.0 22.0 10.0 3.00 MFM-1218-10       20.0         26.0 32.0 30.0 3.00 MFM-2026-30
          12.0          18.0 24.0 12.0 3.00 MFM-1218-12       22.0         28.0 34.0 15.0 3.00 MFM-2228-15
          12.0         18.0 22.0 15.0 3.00 MFM-1218-15        22.0         28.0 34.0 20.0 3.00 MFM-2228-20
          12.0         18.0 22.0 20.0 3.00 MFM-1218-20        22.0         28.0 34.0 30.0 3.00 MFM-2228-30
          13.0         15.0 20.0 14.0 2.00 MFM-1315-14        24.0         30.0 36.0 15.0 3.00 MFM-2430-15
          13.0         16.0 24.0   8.0 2.00 MFM-131624-08     24.0         30.0 36.0 20.0 3.00 MFM-2430-20
          14.0         16.0 22.0 12.0 1.00 MFM-1416-12        24.0         30.0 36.0 30.0 3.00 MFM-2430-30                          Specialist for pivoting, rolling
          14.0         16.0 22.0 17.0 1.00 MFM-1416-17       25.0          28.0 35.0 11.5 1.50 MFM-2528-11
          14.0         20.0 25.0   7.0 3.00 MFM-1420-07      25.0          28.0 35.0 16.5 1.50 MFM-2528-16
          14.0         20.0 25.0 10.0 3.00 MFM-1420-10       25.0  +0.065  28.0 35.0 21.5 1.50 MFM-2528-21                          applications and more
          14.0         20.0 25.0 15.0 3.00 MFM-1420-15       25.0  +0.195 32.0 38.0 12.0 4.00 MFM-2532-12
          14.0         20.0 25.0 20.0 3.00 MFM-1420-20       25.0          32.0 38.0 15.0 4.00 MFM-2532-15                          Low coefficient of friction and wear on
          15.0         17.0 23.0   9.0 1.00 MFM-1517-09      25.0          32.0 38.0 20.0 4.00 MFM-2532-20
          15.0  +0.050  17.0 23.0 12.0 1.00 MFM-1517-12      25.0          32.0 38.0 30.0 4.00 MFM-2532-30
          15.0  +0.160 17.0 23.0 17.0 1.00 MFM-1517-17       25.0          32.0 38.0 40.0 4.00 MFM-2532-40                          almost every shaft
          15.0         21.0 27.0 10.0 3.00 MFM-1521-10       27.0          34.0 40.0 20.0 4.00 MFM-2734-20
          15.0         21.0 27.0 15.0 3.00 MFM-1521-15       27.0          34.0 40.0 30.0 4.00 MFM-2734-30                          iglidur  P210
                                                                                                                                                    ®
          15.0         21.0 27.0 20.0 3.00 MFM-1521-20       27.0          34.0 40.0 40.0 4.00 MFM-2734-40
          15.0         21.0 27.0 25.0 3.00 MFM-1521-25       28.0          36.0 42.0 20.0 4.00 MFM-2836-20
          16.0         18.0 28.0   8.0 2.00 MFM-1618-08/02   28.0          36.0 42.0 30.0 4.00 MFM-2836-30
          16.0         18.0 24.0 12.0 1.00 MFM-1618-12       28.0          36.0 42.0 40.0 4.00 MFM-2836-40
          16.0         18.0 24.0 17.0 1.00 MFM-1618-17       30.0          34.0 42.0 16.0 2.00 MFM-3034-16                          When to use it?
          16.0         22.0 28.0 12.0 3.00 MFM-1622-12       30.0          34.0 42.0 26.0 2.00 MFM-3034-26                          ●  When a universal plain bearing for use in a wet environment is required
          16.0         22.0 28.0 15.0 3.00 MFM-1622-15       30.0          35.0 44.0 20.0 4.00 MFM-3035-20                          ●  When a wear-resistant plain bearing for pivoting applications at medium loads is required
          16.0         22.0 28.0 20.0 3.00 MFM-1622-20       30.0          38.0 44.0 20.0 4.00 MFM-3038-20                          ●  When edge loads and shocks occur
                                                                                                                                                                      ®
          16.0         22.0 28.0 25.0 3.00 MFM-1622-25       30.0          38.0 44.0 30.0 4.00 MFM-3038-30                          ●  When the surface pressure of iglidur  J is insufficient
          18.0         20.0 26.0 12.0 1.00 MFM-1820-12       30.0          38.0 44.0 40.0 4.00 MFM-3038-40
          18.0         20.0 26.0 17.0 1.00 MFM-1820-17       32.0          40.0 46.0 20.0 4.00 MFM-3240-20
          18.0         20.0 26.0 22.0 1.00 MFM-1820-22       32.0          40.0 46.0 30.0 4.00 MFM-3240-30
          18.0         24.0 26.0   7.8 3.00 MFM-182426-078   32.0          40.0 46.0 40.0 4.00 MFM-3240-40                          When not to use it?
          18.0          24.0 30.0  8.0 3.00 MFM-1824-08      35.0  +0.080  39.0 47.0 16.0 2.00 MFM-3539-16                          ●  When a universal plain bearing with the largest possible range of dimensions is required
                                                                                                                                             ®
          18.0          24.0 30.0 12.0 3.00 MFM-1824-12      35.0  +0.240 39.0 47.0 26.0 2.00 MFM-3539-26                              iglidur  G
          18.0          24.0 30.0 18.0 3.00 MFM-1824-18      40.0          44.0 52.0 30.0 2.00 MFM-4044-30                          ●  When a plain bearing for highly loaded pivoting applications is required
                                                                                                                                                      ®
                                                                                                                                             ®
          18.0          24.0 30.0 20.0 3.00 MFM-1824-20      40.0          44.0 52.0 40.0 2.00 MFM-4044-40                             iglidur  Q, iglidur  Q2
          18.0          24.0 30.0 30.0 3.00 MFM-1824-30      45.0          50.0 58.0 50.0 2.00 MFM-4550-50                          ●  When temperatures are higher than +100°C
                                                                                                                                             ®
                                                                                                                                                      ®
                                                                                                                                       iglidur  G, iglidur  J350
          3)  After press-fit. Testing methods, page 61
