Page 299 - IGUS Bearing

iglidur X iglidur X
®
®
+250°C +250°C
150MPa 150MPa

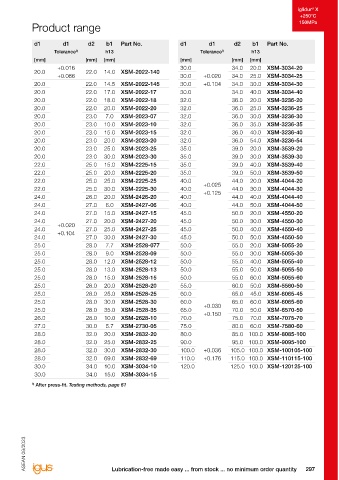

Bearing technology | Plain bearings | iglidur X Product range
®
Sleeve bearings (form S) d1 d1 d2 b1 Part No. d1 d1 d2 b1 Part No.

Tolerance 3) h13 Tolerance 3) h13
f1 30°
[mm] [mm] [mm] [mm] [mm] [mm]
+0.016 30.0 34.0 20.0 XSM-3034-20
20.0 22.0 14.0 XSM-2022-140
d1 0.5 d2 20.0 +0.086 22.0 14.5 XSM-2022-145 30.0 +0.020 34.0 25.0 XSM-3034-25
30.0
XSM-3034-30
30.0
34.0
+0.104
20.0 22.0 17.0 XSM-2022-17 30.0 34.0 40.0 XSM-3034-40
30°
b1 20.0 22.0 18.0 XSM-2022-18 32.0 36.0 20.0 XSM-3236-20
20.0 22.0 20.0 XSM-2022-20 32.0 36.0 25.0 XSM-3236-25
20.0 23.0 7.0 XSM-2023-07 32.0 36.0 30.0 XSM-3236-30
20.0 23.0 10.0 XSM-2023-10 32.0 36.0 35.0 XSM-3236-35
2) Thickness < 0.6mm: chamfer = 20°
Chamfer in relation to d1 20.0 23.0 15.0 XSM-2023-15 32.0 36.0 40.0 XSM-3236-40
d1 [mm] Ø 1-6 Ø 6-12 Ø 12-30 Ø > 30 Dimensions according to ISO 3547-1 and 20.0 23.0 20.0 XSM-2023-20 32.0 36.0 54.0 XSM-3236-54
f1 [mm] 0.3 0.5 0.8 1.2 special dimensions 20.0 23.0 25.0 XSM-2023-25 35.0 39.0 20.0 XSM-3539-20
20.0 23.0 30.0 XSM-2023-30 35.0 39.0 30.0 XSM-3539-30
Order example: XSM-0203-03 – no minimum order quantity. 22.0 25.0 15.0 XSM-2225-15 35.0 39.0 40.0 XSM-3539-40
X iglidur material S Cylindrical M Metric 02 Inner Ø d1 03 Outer Ø d2 03 Total length b1 22.0 25.0 20.0 XSM-2225-20 35.0 39.0 50.0 XSM-3539-50
®
22.0 25.0 25.0 XSM-2225-25 40.0 44.0 20.0 XSM-4044-20
22.0 25.0 30.0 XSM-2225-30 40.0 +0.025 44.0 30.0 XSM-4044-30
d1 d1 d2 b1 Part No. d1 d1 d2 b1 Part No. 24.0 26.0 20.0 XSM-2426-20 40.0 +0.125 44.0 40.0 XSM-4044-40
Tolerance 3) h13 Tolerance 3) h13 24.0 27.0 6.0 XSM-2427-06 40.0 44.0 50.0 XSM-4044-50
[mm] [mm] [mm] [mm] [mm] [mm] 24.0 27.0 15.0 XSM-2427-15 45.0 50.0 20.0 XSM-4550-20
2.0 +0.006 3.5 3.0 XSM-0203-03 12.0 14.0 3.5 XSM-1214-035 24.0 +0.020 27.0 20.0 XSM-2427-20 45.0 50.0 30.0 XSM-4550-30
3.0 +0.046 4.5 3.0 XSM-0304-03 12.0 14.0 6.0 XSM-1214-06 24.0 +0.104 27.0 25.0 XSM-2427-25 45.0 50.0 40.0 XSM-4550-40
3.0 4.5 6.0 XSM-0304-06 12.0 14.0 8.0 XSM-1214-08 24.0 27.0 30.0 XSM-2427-30 45.0 50.0 50.0 XSM-4550-50
4.0 5.5 4.0 XSM-0405-04 12.0 14.0 10.0 XSM-1214-10 25.0 28.0 7.7 XSM-2528-077 50.0 55.0 20.0 XSM-5055-20
4.0 5.5 6.0 XSM-0405-06 12.0 14.0 12.0 XSM-1214-12 25.0 28.0 9.0 XSM-2528-09 50.0 55.0 30.0 XSM-5055-30
4.0 5.5 9.0 XSM-0405-09 12.0 14.0 15.0 XSM-1214-15 25.0 28.0 12.0 XSM-2528-12 50.0 55.0 40.0 XSM-5055-40
4.0 5.5 10.0 XSM-0405-10 12.0 14.0 20.0 XSM-1214-20 25.0 28.0 13.0 XSM-2528-13 50.0 55.0 50.0 XSM-5055-50
5.0 7.0 3.5 XSM-0507-035 12.0 14.0 25.0 XSM-1214-25 25.0 28.0 15.0 XSM-2528-15 50.0 55.0 60.0 XSM-5055-60
5.0 +0.010 7.0 5.0 XSM-0507-05 13.0 15.0 10.0 XSM-1315-10 25.0 28.0 20.0 XSM-2528-20 55.0 60.0 50.0 XSM-5560-50
5.0 +0.058 7.0 8.0 XSM-0507-08 13.0 15.0 20.0 XSM-1315-20 25.0 28.0 25.0 XSM-2528-25 60.0 65.0 45.0 XSM-6065-45
5.0 7.0 10.0 XSM-0507-10 14.0 16.0 12.0 XSM-1416-12 25.0 28.0 30.0 XSM-2528-30 60.0 +0.030 65.0 60.0 XSM-6065-60
6.0 8.0 6.0 XSM-0608-06 14.0 16.0 15.0 XSM-1416-15 25.0 28.0 35.0 XSM-2528-35 65.0 +0.150 70.0 50.0 XSM-6570-50
6.0 8.0 8.0 XSM-0608-08 14.0 16.0 20.0 XSM-1416-20 26.0 28.0 10.0 XSM-2628-10 70.0 75.0 70.0 XSM-7075-70
6.0 8.0 10.0 XSM-0608-10 14.0 +0.016 16.0 25.0 XSM-1416-25 27.0 30.0 5.7 XSM-2730-05 75.0 80.0 60.0 XSM-7580-60
6.0 8.0 13.8 XSM-0608-13 15.0 +0.086 17.0 7.0 XSM-1517-07 28.0 32.0 20.0 XSM-2832-20 80.0 85.0 100.0 XSM-8085-100
7.0 9.0 10.0 XSM-0709-10 15.0 17.0 10.0 XSM-1517-10 28.0 32.0 25.0 XSM-2832-25 90.0 95.0 100.0 XSM-9095-100
7.0 9.0 12.0 XSM-0709-12 15.0 17.0 15.0 XSM-1517-15 28.0 32.0 30.0 XSM-2832-30 100.0 +0.036 105.0 100.0 XSM-100105-100
8.0 10.0 6.0 XSM-0810-06 15.0 17.0 20.0 XSM-1517-20 28.0 32.0 69.0 XSM-2832-69 110.0 +0.176 115.0 100.0 XSM-110115-100
8.0 10.0 8.0 XSM-0810-08 15.0 17.0 25.0 XSM-1517-25 30.0 34.0 10.0 XSM-3034-10 120.0 125.0 100.0 XSM-120125-100
8.0 10.0 10.0 XSM-0810-10 16.0 18.0 10.0 XSM-1618-10 30.0 34.0 15.0 XSM-3034-15
8.0 10.0 12.0 XSM-0810-12 16.0 18.0 12.0 XSM-1618-12 3) After press-fit. Testing methods, page 61
8.0 +0.013 10.0 15.0 XSM-0810-15 16.0 18.0 15.0 XSM-1618-15
10.0 +0.071 12.0 3.5 XSM-1012-035 16.0 18.0 20.0 XSM-1618-20
10.0 12.0 6.0 XSM-1012-06 16.0 18.0 25.0 XSM-1618-25
10.0 12.0 8.0 XSM-1012-08 16.0 18.0 35.0 XSM-1618-35
10.0 12.0 10.0 XSM-1012-10 17.0 19.0 20.0 XSM-1719-20
10.0 12.0 12.0 XSM-1012-12 18.0 20.0 15.0 XSM-1820-15
10.0 12.0 15.0 XSM-1012-15 18.0 20.0 20.0 XSM-1820-20
10.0 12.0 20.0 XSM-1012-20 18.0 20.0 25.0 XSM-1820-25

3) After press-fit. Testing methods, page 61 ASEAN 09/2023 ASEAN 09/2023
296 3D-CAD, finder and service life calculation ... www.igus-asean.com/X Lubrication-free made easy ... from stock ... no minimum order quantity 297
