iglidur X
®
+250°C
150MPa
Bearing technology | Plain bearings | iglidur X
®
Thrust washer (form T)
d1

s
d2

d5

d4
d6
h
Dimensions according to ISO 3547-1 and
special dimensions

Order example: XTM-0620-015 – no minimum order quantity.

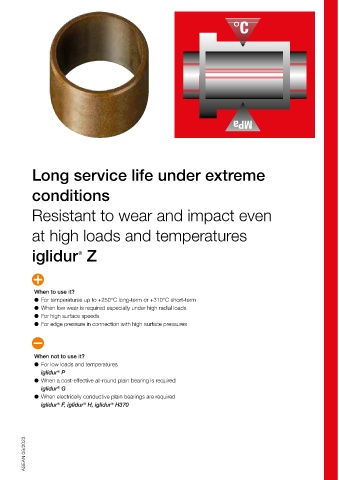

X iglidur material T Thrust washer M Metric 06 Inner Ø d1 20 Outer Ø d2 015 Height s Long service life under extreme
®
conditions
d1 d2 d4 d5 h d6 Øs Part No.
+0.25 -0.25 -0.12 +0.375 +0.2/-0.2 +0.12 -0.05
+0.12 +0.125 Resistant to wear and impact even
[mm] [mm] [mm] [mm] [mm] [mm] [mm]
6 20 13 1.5 1 20 1.5 XTM-0620-015
8 18 13 1.5 1 18 1.5 XTM-0818-015 at high loads and temperatures
8 29 4) 4) 1 29 1.5 XTM-0829-015
8 30 4) 4) 1 30 1.5 XTM-0830-015 iglidur Z
®
10 18 4) 4) 0.7 18 1 XTM-1018-010
12 24 18 1.5 1 24 1.5 XTM-1224-015
14 26 20 2 1 26 1.5 XTM-1426-015
15 22 4) 4) 0.5 22 0.8 XTM-1522-008
15 24 19.5 1.5 1 24 1.5 XTM-1524-015 When to use it?
16 30 22 2 1 30 1.5 XTM-1630-015 ● For temperatures up to +250°C long-term or +310°C short-term
18 32 25 2 1 32 1.5 XTM-1832-015 ● When low wear is required especially under high radial loads
20 36 28 3 1 36 1.5 XTM-2036-015 ● For high surface speeds
22 38 30 3 1 38 1.5 XTM-2238-015 ● For edge pressure in connection with high surface pressures
24 42 33 3 1 42 1.5 XTM-2442-015
26 44 35 3 1 44 1.5 XTM-2644-015
28 48 38 4 1 48 1.5 XTM-2848-015
32 54 43 4 1 54 1.5 XTM-3254-015 When not to use it?
38 62 50 4 1 62 1.5 XTM-3862-015 ● For low loads and temperatures
®
42 66 54 4 1 66 1.5 XTM-4266-015 iglidur P
48 74 61 4 1.5 74 2 XTM-4874-020 ● When a cost-effective all-round plain bearing is required
®
52 78 65 4 1.5 78 2 XTM-5278-020 iglidur G
62 90 76 4 1.5 90 2 XTM-6290-020 ● When electrically conductive plain bearings are required
®
®
®
iglidur F, iglidur H, iglidur H370
4) Design without fixing hole
