Page 300 - IGUS Bearing

iglidur X iglidur X
®
®
+250°C +250°C
150MPa 150MPa

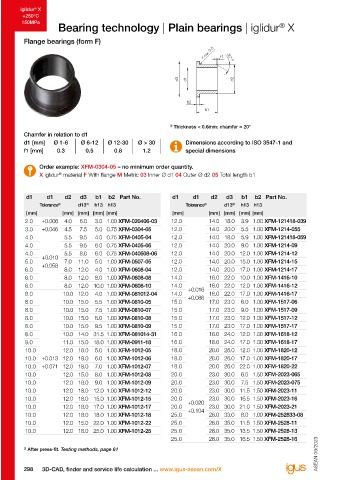

Bearing technology | Plain bearings | iglidur X Product range
®
Flange bearings (form F) d1 d1 d2 d3 b1 b2 Part No. d1 d1 d2 d3 b1 b2 Part No.
r max. 0.5 Tolerance 3) d13 3) h13 h13 Tolerance 3) d13 3) h13 h13
f1
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]
30°
25.0 28.0 35.0 21.0 1.50 XFM-2528-21 40.0 44.0 52.0 22.0 2.00 XFM-4044-22
27.0 30.0 38.0 20.0 1.50 XFM-2730-20 40.0 44.0 52.0 30.0 2.00 XFM-4044-30
d3 d1 d2 +0.020 +0.025
30.0 +0.104 34.0 42.0 16.0 2.00 XFM-3034-16 40.0 +0.125 44.0 52.0 40.0 2.00 XFM-4044-40
30.0 34.0 42.0 26.0 2.00 XFM-3034-26 45.0 50.0 58.0 50.0 2.00 XFM-4550-50
30.0 34.0 42.0 40.0 2.00 XFM-3034-40 50.0 55.0 63.0 40.0 2.00 XFM-5055-40
b2
b1 32.0 36.0 45.0 15.0 2.00 XFM-3236-15 60.0 +0.030 65.0 73.0 40.0 2.00 XFM-6065-40
32.0 +0.025 36.0 45.0 26.0 2.00 XFM-3236-26 70.0 +0.150 75.0 83.0 40.0 2.00 XFM-7075-40
35.0 +0.125 39.0 47.0 16.0 2.00 XFM-3539-16 75.0 80.0 88.0 50.0 2.00 XFM-7580-50
2) Thickness < 0.6mm: chamfer = 20°
Chamfer in relation to d1 35.0 39.0 47.0 26.0 2.00 XFM-3539-26
d1 [mm] Ø 1-6 Ø 6-12 Ø 12-30 Ø > 30 Dimensions according to ISO 3547-1 and 3) After press-fit. Testing methods, page 61
f1 [mm] 0.3 0.5 0.8 1.2 special dimensions

Order example: XFM-0304-05 – no minimum order quantity.
X iglidur material F With flange M Metric 03 Inner Ø d1 04 Outer Ø d2 05 Total length b1
®

d1 d1 d2 d3 b1 b2 Part No. d1 d1 d2 d3 b1 b2 Part No.
Tolerance 3) d13 3) h13 h13 Tolerance 3) d13 3) h13 h13
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]
2.0 +0.006 4.0 6.0 3.0 1.00 XFM-020406-03 12.0 14.0 18.0 3.9 1.00 XFM-121418-039
3.0 +0.046 4.5 7.5 5.0 0.75 XFM-0304-05 12.0 14.0 20.0 5.5 1.00 XFM-1214-055
4.0 5.5 9.5 4.0 0.75 XFM-0405-04 12.0 14.0 18.0 5.9 1.00 XFM-121418-059
4.0 5.5 9.5 6.0 0.75 XFM-0405-06 12.0 14.0 20.0 9.0 1.00 XFM-1214-09
4.0 +0.010 5.5 8.0 6.0 0.75 XFM-040508-06 12.0 14.0 20.0 12.0 1.00 XFM-1214-12
5.0 +0.058 7.0 11.0 5.0 1.00 XFM-0507-05 12.0 14.0 20.0 15.0 1.00 XFM-1214-15
6.0 8.0 12.0 4.0 1.00 XFM-0608-04 12.0 14.0 20.0 17.0 1.00 XFM-1214-17
6.0 8.0 12.0 8.0 1.00 XFM-0608-08 14.0 16.0 22.0 10.0 1.00 XFM-1416-10
6.0 8.0 12.0 10.0 1.00 XFM-0608-10 14.0 +0.016 16.0 22.0 12.0 1.00 XFM-1416-12
8.0 10.0 12.0 4.0 1.00 XFM-081012-04 14.0 +0.086 16.0 22.0 17.0 1.00 XFM-1416-17
8.0 10.0 15.0 5.5 1.00 XFM-0810-05 15.0 17.0 23.0 6.0 1.00 XFM-1517-06
8.0 10.0 15.0 7.5 1.00 XFM-0810-07 15.0 17.0 23.0 9.0 1.00 XFM-1517-09
8.0 10.0 15.0 8.0 1.00 XFM-0810-08 15.0 17.0 23.0 12.0 1.00 XFM-1517-12
8.0 10.0 15.0 9.5 1.00 XFM-0810-09 15.0 17.0 23.0 17.0 1.00 XFM-1517-17
8.0 10.0 14.0 31.5 1.00 XFM-081014-31 16.0 18.0 24.0 12.0 1.00 XFM-1618-12
9.0 11.0 15.0 18.0 1.00 XFM-0911-18 16.0 18.0 24.0 17.0 1.00 XFM-1618-17
10.0 12.0 18.0 5.0 1.00 XFM-1012-05 18.0 20.0 26.0 12.0 1.00 XFM-1820-12
10.0 +0.013 12.0 18.0 6.0 1.00 XFM-1012-06 18.0 20.0 26.0 17.0 1.00 XFM-1820-17
10.0 +0.071 12.0 18.0 7.0 1.00 XFM-1012-07 18.0 20.0 26.0 22.0 1.00 XFM-1820-22 Available from stock Ordering note
10.0 12.0 15.0 8.0 1.00 XFM-1012-08 20.0 23.0 30.0 6.5 1.50 XFM-2023-065 Detailed information about delivery time online. Our prices are scaled according to order
10.0 12.0 18.0 9.0 1.00 XFM-1012-09 20.0 23.0 30.0 7.5 1.50 XFM-2023-075 www.igus-asean.com/24 quantities, current prices can be found online.
10.0 12.0 18.0 12.0 1.00 XFM-1012-12 20.0 23.0 30.0 11.5 1.50 XFM-2023-11 Order online
10.0 12.0 18.0 15.0 1.00 XFM-1012-15 20.0 +0.020 23.0 30.0 16.5 1.50 XFM-2023-16 including delivery times, prices, online tools Discount scaling
10.0 12.0 18.0 17.0 1.00 XFM-1012-17 20.0 +0.104 23.0 30.0 21.0 1.50 XFM-2023-21 www.igus-asean.com/X 1-9 50-99 500-999
10.0 12.0 18.0 18.0 1.00 XFM-1012-18 25.0 28.0 33.0 8.0 1.00 XFM-252833-08 10-24 100-199 1,000-2,499
10.0 12.0 15.0 22.0 1.00 XFM-1012-22 25.0 28.0 35.0 11.5 1.50 XFM-2528-11 25-49 200-499 2,500-4,999
10.0 12.0 18.0 25.0 1.00 XFM-1012-25 25.0 28.0 35.0 13.5 1.50 XFM-2528-13 No minimum order value.
25.0 28.0 35.0 16.5 1.50 XFM-2528-16 No low-quantity surcharges.
ASEAN 09/2023 ASEAN 09/2023 above €150.
3) After press-fit. Testing methods, page 61 Free shipping within Germany for orders

298 3D-CAD, finder and service life calculation ... www.igus-asean.com/X Lubrication-free made easy ... from stock ... no minimum order quantity 299
