P. 302

iglidur  X
             ®
         +250°C
         150MPa

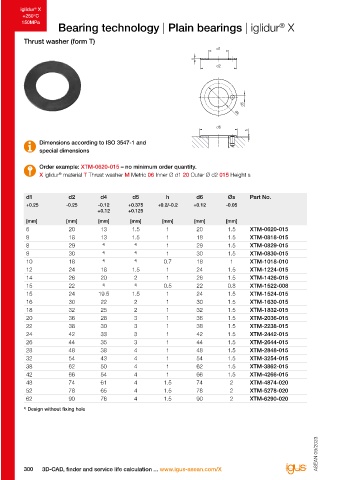

                      Bearing technology | Plain bearings | iglidur  X
                                                                                                    ®
          Thrust washer (form T)
                                                                             d1

                                                                     s
                                                                             d2






                                                                                       d5

                                                                                    d4
                                                                             d6
                                                                                        h
               Dimensions according to ISO 3547-1 and
               special dimensions


               Order example: XTM-0620-015 – no minimum order quantity.
               X iglidur  material T Thrust washer M Metric 06 Inner Ø d1 20 Outer Ø d2 015 Height s                                Long service life under extreme
                      ®
                                                                                                                                    conditions
           d1            d2          d4         d5          h         d6          Øs     Part No.
           +0.25         -0.25      -0.12     +0.375     +0.2/-0.2   +0.12       -0.05
                                    +0.12     +0.125                                                                                Resistant to wear and impact even
           [mm]          [mm]       [mm]       [mm]       [mm]        [mm]       [mm]
           6              20         13         1.5         1         20         1.5     XTM-0620-015
           8              18         13         1.5         1         18         1.5     XTM-0818-015                               at high loads and temperatures
           8              29         4)          4)         1         29         1.5     XTM-0829-015
           8              30         4)          4)         1         30         1.5     XTM-0830-015                               iglidur  Z
                                                                                                                                                    ®
           10             18         4)          4)        0.7        18          1      XTM-1018-010
           12             24         18         1.5         1         24         1.5     XTM-1224-015
           14             26         20          2          1         26         1.5     XTM-1426-015
           15             22         4)          4)        0.5        22         0.8     XTM-1522-008
           15             24        19.5        1.5         1         24         1.5     XTM-1524-015                               When to use it?
           16             30         22          2          1         30         1.5     XTM-1630-015                               ●  For temperatures up to +250°C long-term or +310°C short-term
           18             32         25          2          1         32         1.5     XTM-1832-015                               ●  When low wear is required especially under high radial loads
           20             36         28          3          1         36         1.5     XTM-2036-015                               ●  For high surface speeds
           22             38         30          3          1         38         1.5     XTM-2238-015                               ●  For edge pressure in connection with high surface pressures
           24             42         33          3          1         42         1.5     XTM-2442-015
           26             44         35          3          1         44         1.5     XTM-2644-015
           28             48         38          4          1         48         1.5     XTM-2848-015
           32             54         43          4          1         54         1.5     XTM-3254-015                               When not to use it?
           38             62         50          4          1         62         1.5     XTM-3862-015                               ●  For low loads and temperatures
                                                                                                                                             ®
           42             66         54          4          1         66         1.5     XTM-4266-015                                  iglidur  P
           48             74         61          4         1.5        74          2      XTM-4874-020                               ●  When a cost-effective all-round plain bearing is required
                                                                                                                                             ®
           52             78         65          4         1.5        78          2      XTM-5278-020                                  iglidur  G
           62             90         76          4         1.5        90          2      XTM-6290-020                               ●  When electrically conductive plain bearings are required
                                                                                                                                             ®
                                                                                                                                                               ®
                                                                                                                                                      ®
                                                                                                                                       iglidur  F, iglidur  H, iglidur  H370
          4)  Design without fixing hole
