iglidur ® iglidur clip bearings | Product range iglidur clip bearings | Product range iglidur ®
MYM MYM...K

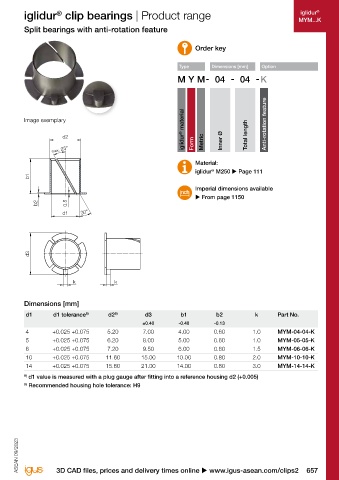

Split bearings (clips2) - easy assembly Split bearings with anti-rotation feature

Order key Order key

Type Dimensions [mm] Type Dimensions [mm] Option

iglidur ® material iglidur ® material
Image exemplary Image exemplary Anti-rotation feature

d2 Inner Ø Total length d2 Inner Ø Total length
d2
max. 25° Form Metric max. 25° Form Metric
max. 25°

Material: Material:
iglidur M250 u Page 111 iglidur M250 u Page 111
®
®
b1 b1 With anti-rotation feature u Page 657 b1
Imperial dimensions available
Imperial dimensions available u From page 1150
b2 b2 0.5 0.5 u From page 1150 b2 0.5
30°
d1 30° d1 30°
d1

d3 d3 d3

r = max. 0.5mm k k

Dimensions [mm] Dimensions [mm]
d1 d1 tolerance 7) d2 9) d3 b1 b2 Part No. d1 d1 tolerance 8) d2 9) d3 b1 b2 k Part No.
±0.40 -0.40 -0.13 ±0.40 -0.40 -0.13
4 +0.025 +0.075 5.2 7.0 4.0 0.6 MYM-04-04 4 +0.025 +0.075 5.20 7.00 4.00 0.60 1.0 MYM-04-04-K
5 +0.025 +0.075 6.2 8.0 5.0 0.6 MYM-05-05 5 +0.025 +0.075 6.20 8.00 5.00 0.60 1.0 MYM-05-05-K
6 +0.025 +0.075 7.2 9.5 6.0 0.6 MYM-06-06 6 +0.025 +0.075 7.20 9.50 6.00 0.60 1.5 MYM-06-06-K
8 +0.025 +0.075 9.6 12.0 8.0 0.8 MYM-08-08 10 +0.025 +0.075 11.60 15.00 10.00 0.80 2.0 MYM-10-10-K
10 +0.025 +0.075 11.6 15.0 10.0 0.8 MYM-10-10 14 +0.025 +0.075 15.60 21.00 14.00 0.80 3.0 MYM-14-14-K
12 +0.025 +0.075 13.6 18.0 12.0 0.8 MYM-12-12 8) d1 value is measured with a plug gauge after fitting into a reference housing d2 (+0.005)
14 +0.025 +0.075 15.6 21.0 14.0 0.8 MYM-14-14 9) Recommended housing hole tolerance: H9
16 +0.025 +0.075 17.6 24.0 16.0 0.8 MYM-16-16
20 +0.025 +0.075 21.6 30.0 16.0 0.8 MYM-20-16
20 +0.025 +0.075 21.6 30.0 20.0 0.8 MYM-20-20
25 +0.025 +0.075 27.4 37.5 25.0 1.2 MYM-25-25
7) d1 value is measured with a plug gauge after fitting into a reference housing d2 (+0.005)
9) Recommended housing hole tolerance: H9
ASEAN 09/2023 ASEAN 09/2023

656 Online tools and more information u www.igus-asean.com/clips2 3D CAD files, prices and delivery times online u www.igus-asean.com/clips2 657
