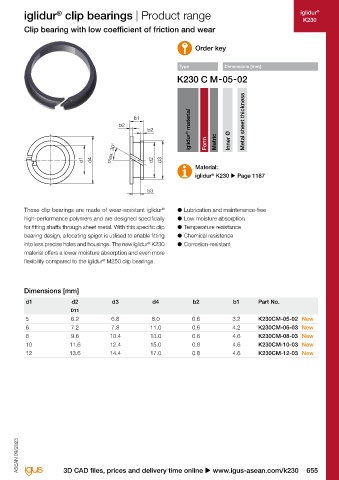

iglidur ® iglidur clip bearings | Product range New iglidur clip bearings | Product range iglidur ®
A230 K230
Clip bearings for sheet metal in the food industry Clip bearing with low coefficient of friction and wear

Order key Order key

Type Dimensions [mm] Type Dimensions [mm]

b1 b1
b2 Metal sheet thickness b2 Metal sheet thickness
b2 iglidur ® material b2 iglidur ® material

30° Form Metric Inner Ø 30° Form Metric Inner Ø
max. max.
d1 d4 d2 d3 d1 d4 d2 d3
Material: Material:
iglidur A230 u Page 1188 iglidur K230 u Page 1187
®
®
b3 b3

®
● FDA and EU10/2011 compliant These clip bearings are made of wear-resistant iglidur ● Lubrication and maintenance-free
● Visually detectable high-performance polymers and are designed specifically ● Low moisture absorption
● Low moisture absorption for fitting shafts through sheet metal. With this specific clip ● Temperature resistance
● Suitable for use in the food industry and medical bearing design, a locating spigot is utilised to enable fitting ● Chemical resistance
technology into less precise holes and housings. The new iglidur K230 ● Corrosion-resistant
®
material offers a lower moisture absorption and even more
flexibility compared to the iglidur M250 clip bearings.
®

Dimensions [mm] Dimensions [mm]
d1 d2 d3 d4 b2 b1 Part No. d1 d2 d3 d4 b2 b1 Part No.
D11 D11
5 6.2 6.8 8.0 0.6 3.2 A230CM-05-02 New 5 6.2 6.8 8.0 0.6 3.2 K230CM-05-02 New
6 7.2 7.8 11.0 0.6 4.2 A230CM-06-03 New 6 7.2 7.8 11.0 0.6 4.2 K230CM-06-03 New
8 9.6 10.4 13.0 0.8 4.6 A230CM-08-03 New 8 9.6 10.4 13.0 0.8 4.6 K230CM-08-03 New
10 11.6 12.4 15.0 0.8 4.6 A230CM-10-03 New 10 11.6 12.4 15.0 0.8 4.6 K230CM-10-03 New
12 13.6 14.4 17.0 0.8 4.6 A230CM-12-03 New 12 13.6 14.4 17.0 0.8 4.6 K230CM-12-03 New

ASEAN 09/2023 ASEAN 09/2023

654 Online tools and more information u www.igus-asean.com/clips 3D CAD files, prices and delivery time online u www.igus-asean.com/k230 655
