iglidur ® iglidur clip bearings | Product range iglidur clip bearings | Product range iglidur ®
MKM MDM

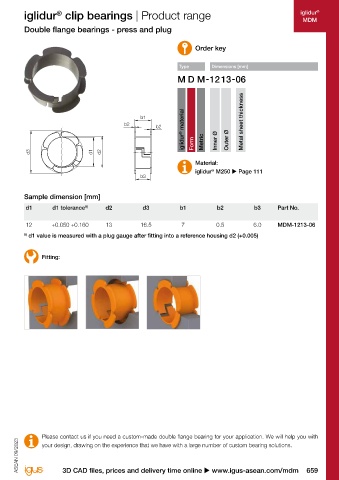

Flanged bearings - press in and fold down Double flange bearings - press and plug

Order key Order key

Type Dimensions [mm] Type Dimensions [mm]

b3 b1
iglidur ® material Metal sheet thickness b2 b2 iglidur ® material Metal sheet thickness

s
d3 d1 d2 Form Metric Inner Ø Outer Ø Form Metric Inner Ø Outer Ø
d3 d1 d2
Material: Material:
®
®
b2 iglidur M250 u Page 111 iglidur M250 u Page 111
b3
b1
Sample dimension [mm] Sample dimension [mm]

d1 d1 tolerance 3) d2 d3 b1 b2 b3 Øs Part No. d1 d1 tolerance 8) d2 d3 b1 b2 b3 Part No.
E10 d13 h13 h13 +0.1/+0.7 ±0.1
10 +0.025 +0.083 12 18 14 1 10 0.4 MKM-1012-10 12 +0.050 +0.160 13 16.5 7 0.5 6.0 MDM-1213-06

3) After press-fit; testing methods u Page 61 8) d1 value is measured with a plug gauge after fitting into a reference housing d2 (+0.005)

Fitting: Fitting:

Press-fit, fold down, ready: axial load on both sides

Please contact us if you need a custom-made double flange bearing for your application. We will help you with Please contact us if you need a custom-made double flange bearing for your application. We will help you with
ASEAN 09/2023 ASEAN 09/2023
your design, drawing on the experience that we have with a large number of custom bearing solutions. your design, drawing on the experience that we have with a large number of custom bearing solutions.

658 Online tools and more information u www.igus-asean.com/mkm 3D CAD files, prices and delivery time online u www.igus-asean.com/mdm 659
