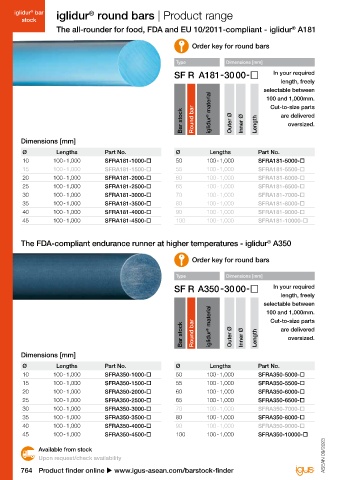

iglidur bar iglidur round bars | Product range iglidur round bars | Product range iglidur bar
®
®
stock stock
The all-rounder for food, FDA and EU 10/2011-compliant - iglidur A181 The media and temperature specialist in the food sector - iglidur A500
®
®
Order key for round bars Order key for round bars
Type Dimensions [mm] Type Dimensions [mm]
In your required In your required
length, freely length, freely
selectable between selectable between
100 and 1,000mm.
100 and 1,000mm.
Bar stock Round bar iglidur ® material Outer Ø Inner Ø Length Cut-to-size parts Bar stock Round bar iglidur ® material Outer Ø Inner Ø Length Cut-to-size parts
are delivered
are delivered
oversized.
oversized.
Dimensions [mm] Dimensions [mm]

Ø Lengths Part No. Ø Lengths Part No. Ø Lengths Part No. Ø Lengths Part No.
10 100 - 1,000 SFRA181-1000- 50 100 - 1,000 SFRA181-5000- 10 100 - 1,000 SFRA500-1000- 50 100 - 1,000 SFRA500-5000-
15 100 - 1,000 SFRA181-1500- 55 100 - 1,000 SFRA181-5500- 15 100 - 1,000 SFRA500-1500- 55 100 - 1,000 SFRA500-5500-
20 100 - 1,000 SFRA181-2000- 60 100 - 1,000 SFRA181-6000- 20 100 - 1,000 SFRA500-2000- 60 100 - 1,000 SFRA500-6000-
25 100 - 1,000 SFRA181-2500- 65 100 - 1,000 SFRA181-6500- 25 100 - 1,000 SFRA500-2500- 65 100 - 1,000 SFRA500-6500-
30 100 - 1,000 SFRA181-3000- 70 100 - 1,000 SFRA181-7000- 30 100 - 1,000 SFRA500-3000- 70 100 - 1,000 SFRA500-7000-
35 100 - 1,000 SFRA181-3500- 80 100 - 1,000 SFRA181-8000- 35 100 - 1,000 SFRA500-3500- 80 100 - 1,000 SFRA500-8000-
40 100 - 1,000 SFRA181-4000- 90 100 - 1,000 SFRA181-9000- 40 100 - 1,000 SFRA500-4000- 90 100 - 1,000 SFRA500-9000-
45 100 - 1,000 SFRA181-4500- 100 100 - 1,000 SFRA181-10000- 45 100 - 1,000 SFRA500-4500- 100 100 - 1,000 SFRA500-10000-

The FDA-compliant endurance runner at higher temperatures - iglidur A350 The all-rounder for food - iglidur A180
®
®
Order key for round bars Order key for round bars

Type Dimensions [mm] Type Dimensions [mm]
In your required In your required
length, freely length, freely
selectable between selectable between
100 and 1,000mm.
100 and 1,000mm.
Bar stock Round bar iglidur ® material Outer Ø Inner Ø Length Cut-to-size parts Bar stock Round bar iglidur ® material Outer Ø Inner Ø Length Cut-to-size parts
are delivered
are delivered
oversized.
oversized.
Dimensions [mm] Dimensions [mm]

Ø Lengths Part No. Ø Lengths Part No. Ø Lengths Part No. Ø Lengths Part No.
10 100 - 1,000 SFRA350-1000- 50 100 - 1,000 SFRA350-5000- 10 100 - 1,000 SFRA180-1000- 50 100 - 1,000 SFRA180-5000-
15 100 - 1,000 SFRA350-1500- 55 100 - 1,000 SFRA350-5500- 15 100 - 1,000 SFRA180-1500- 55 100 - 1,000 SFRA180-5500-
20 100 - 1,000 SFRA350-2000- 60 100 - 1,000 SFRA350-6000- 20 100 - 1,000 SFRA180-2000- 60 100 - 1,000 SFRA180-6000-
25 100 - 1,000 SFRA350-2500- 65 100 - 1,000 SFRA350-6500- 25 100 - 1,000 SFRA180-2500- 65 100 - 1,000 SFRA180-6500-
30 100 - 1,000 SFRA350-3000- 70 100 - 1,000 SFRA350-7000- 30 100 - 1,000 SFRA180-3000- 70 100 - 1,000 SFRA180-7000-
35 100 - 1,000 SFRA350-3500- 80 100 - 1,000 SFRA350-8000- 35 100 - 1,000 SFRA180-3500- 80 100 - 1,000 SFRA180-8000-
40 100 - 1,000 SFRA350-4000- 90 100 - 1,000 SFRA350-9000- 40 100 - 1,000 SFRA180-4000- 90 100 - 1,000 SFRA180-9000-
45 100 - 1,000 SFRA350-4500- 100 100 - 1,000 SFRA350-10000- 45 100 - 1,000 SFRA180-4500- 100 100 - 1,000 SFRA180-10000-

Available from stock igus constantly expands its range of available materials and dimensions. Please contact us in case the required
®
Upon request/check availability ASEAN 09/2023 ASEAN 09/2023 diameter is not available.
764 Product finder online u www.igus-asean.com/barstock-finder Service life calculation online u www.igus-asean.com/barstock-expert 765
