iglidur bar iglidur round bars | Product range iglidur round bars | Product range iglidur bar
®
®
stock stock

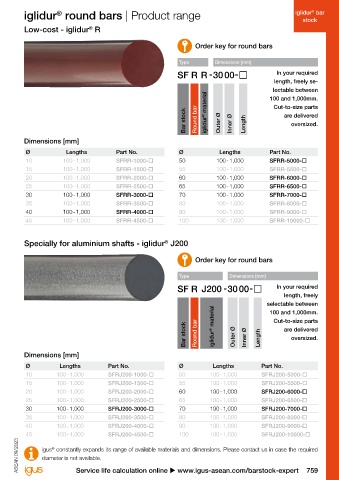

Endurance runner with high dimensional stability at high temperature - iglidur J350 Low-cost - iglidur R
®
®
Order key for round bars Order key for round bars
Type Dimensions [mm] Type Dimensions [mm]
In your required In your required
length, freely length, freely se-
lectable between
selectable between 100 and 1,000mm.
100 and 1,000mm.

Bar stock Round bar iglidur ® material Outer Ø Inner Ø Length Cut-to-size parts Bar stock Round bar iglidur ® material Outer Ø Inner Ø Length Cut-to-size parts
are delivered
are delivered
oversized.
oversized.
Dimensions [mm] Dimensions [mm]

Ø Lengths Part No. Ø Lengths Part No. Ø Lengths Part No. Ø Lengths Part No.
10 100 - 1,000 SFRJ350-1000- 50 100 - 1,000 SFRJ350-5000- 10 100 - 1,000 SFRR-1000- 50 100 - 1,000 SFRR-5000-
15 100 - 1,000 SFRJ350-1500- 55 100 - 1,000 SFRJ350-5500- 15 100 - 1,000 SFRR-1500- 55 100 - 1,000 SFRR-5500-
20 100 - 1,000 SFRJ350-2000- 60 100 - 1,000 SFRJ350-6000- 20 100 - 1,000 SFRR-2000- 60 100 - 1,000 SFRR-6000-
25 100 - 1,000 SFRJ350-2500- 65 100 - 1,000 SFRJ350-6500- 25 100 - 1,000 SFRR-2500- 65 100 - 1,000 SFRR-6500-
30 100 - 1,000 SFRJ350-3000- 70 100 - 1,000 SFRJ350-7000- 30 100 - 1,000 SFRR-3000- 70 100 - 1,000 SFRR-7000-
35 100 - 1,000 SFRJ350-3500- 80 100 - 1,000 SFRJ350-8000- 35 100 - 1,000 SFRR-3500- 80 100 - 1,000 SFRR-8000-
40 100 - 1,000 SFRJ350-4000- 90 100 - 1,000 SFRJ350-9000- 40 100 - 1,000 SFRR-4000- 90 100 - 1,000 SFRR-9000-
45 100 - 1,000 SFRJ350-4500- 100 100 - 1,000 SFRJ350-10000- 45 100 - 1,000 SFRR-4500- 100 100 - 1,000 SFRR-10000-

Ideal for plastic shafts - iglidur J260 Specially for aluminium shafts - iglidur J200
®
®
Order key for round bars Order key for round bars

Type Dimensions [mm] Type Dimensions [mm]
In your required In your required
length, freely length, freely
selectable between selectable between
100 and 1,000mm.
100 and 1,000mm.
Bar stock Round bar iglidur ® material Outer Ø Inner Ø Length Cut-to-size parts Bar stock Round bar iglidur ® material Outer Ø Inner Ø Length Cut-to-size parts
are delivered
are delivered
oversized.
oversized.
Dimensions [mm] Dimensions [mm]

Ø Lengths Part No. Ø Lengths Part No. Ø Lengths Part No. Ø Lengths Part No.
10 100 - 1,000 SFRJ260-1000- 50 100 - 1,000 SFRJ260-5000- 10 100 - 1,000 SFRJ200-1000- 50 100 - 1,000 SFRJ200-5000-
15 100 - 1,000 SFRJ260-1500- 55 100 - 1,000 SFRJ260-5500- 15 100 - 1,000 SFRJ200-1500- 55 100 - 1,000 SFRJ200-5500-
20 100 - 1,000 SFRJ260-2000- 60 100 - 1,000 SFRJ260-6000- 20 100 - 1,000 SFRJ200-2000- 60 100 - 1,000 SFRJ200-6000-
25 100 - 1,000 SFRJ260-2500- 65 100 - 1,000 SFRJ260-6500- 25 100 - 1,000 SFRJ200-2500- 65 100 - 1,000 SFRJ200-6500-
30 100 - 1,000 SFRJ260-3000- 70 100 - 1,000 SFRJ260-7000- 30 100 - 1,000 SFRJ200-3000- 70 100 - 1,000 SFRJ200-7000-
35 100 - 1,000 SFRJ260-3500- 80 100 - 1,000 SFRJ260-8000- 35 100 - 1,000 SFRJ200-3500- 80 100 - 1,000 SFRJ200-8000-
40 100 - 1,000 SFRJ260-4000- 90 100 - 1,000 SFRJ260-9000- 40 100 - 1,000 SFRJ200-4000- 90 100 - 1,000 SFRJ200-9000-
45 100 - 1,000 SFRJ260-4500- 100 100 - 1,000 SFRJ260-10000- 45 100 - 1,000 SFRJ200-4500- 100 100 - 1,000 SFRJ200-10000-

Available from stock igus constantly expands its range of available materials and dimensions. Please contact us in case the required
®
Upon request/check availability ASEAN 09/2023 ASEAN 09/2023 diameter is not available.
758 Product finder online u www.igus-asean.com/barstock-finder Service life calculation online u www.igus-asean.com/barstock-expert 759
