_FM iglidur standards | Product range iglidur standards | Product range _FM

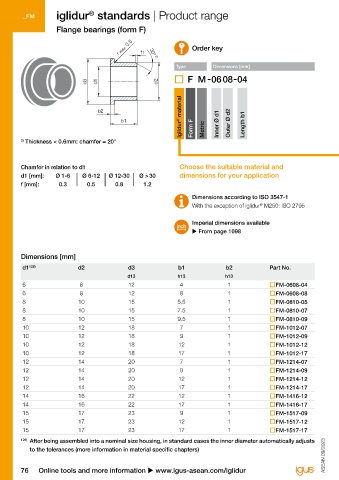

Flange bearings (form F) Absolute flexibility: all iglidur standard sizes available from stock
®
r max. 0.5 f1 30° Order key G1 The classic all-rounder
G

More universal
Type Dimensions [mm] M(250) The robust all-rounder according to ISO 2795
P210 Specialist for pivoting, rolling applications and more
d3 d1 d2
P The cost-effective outdoor all-rounder

J
The versatile endurance runner
iglidur ® material
b2 W(300) The classic endurance runner up to 30MPa
b1 Form F Metric Inner Ø d1 Outer Ø d2 Length b1 J3 The new endurance runner: specialist for pivoting applications and pulsating loads

X
The chemical and temperature specialist
2) Thickness < 0.6mm: chamfer = 20° J350 Endurance runner with high dimensional stability at high temperature
Z Long service life under extreme conditions
H1 Endurance runner with high media resistance
Chamfer in relation to d1 Choose the suitable material and
d1 [mm]: Ø 1-6 Ø 6-12 Ø 12-30 Ø > 30 dimensions for your application H370 Long service life under water
f [mm]: 0.3 0.5 0.8 1.2 A181 The universal bearing for food contact
Dimensions according to ISO 3547-1 A350 The endurance runner at higher temperatures in the food sector
With the exception of iglidur M250: ISO 2795 A500 The media and temperature specialist in the food sector
®
Q2 The durable heavy-duty bearing
Imperial dimensions available
u From page 1098

Dimensions [mm] Dimensions [mm]

d1 126) d2 d3 b1 b2 Part No. d1 126) d2 d3 b1 b2 Part No.
d13 h13 h13 d13 h13 h13
6 8 12 4 1 FM-0608-04 16 18 24 12 1 FM-1618-12
6 8 12 8 1 FM-0608-08 16 18 24 17 1 FM-1618-17
8 10 15 5.5 1 FM-0810-05 18 20 26 12 1 FM-1820-12
8 10 15 7.5 1 FM-0810-07 18 20 26 17 1 FM-1820-17
8 10 15 9.5 1 FM-0810-09 18 20 26 22 1 FM-1820-22
10 12 18 7 1 FM-1012-07 20 23 30 11.5 1.5 FM-2023-11
10 12 18 9 1 FM-1012-09 20 23 30 16.5 1.5 FM-2023-16
10 12 18 12 1 FM-1012-12 20 23 30 21.5 1.5 FM-2023-21
10 12 18 17 1 FM-1012-17 25 28 35 11.5 1.5 FM-2528-11
12 14 20 7 1 FM-1214-07 25 28 35 16.5 1.5 FM-2528-16
12 14 20 9 1 FM-1214-09 25 28 35 21.5 1.5 FM-2528-21
12 14 20 12 1 FM-1214-12 30 34 42 16 2 FM-3034-16
12 14 20 17 1 FM-1214-17 30 34 42 26 2 FM-3034-26
14 16 22 12 1 FM-1416-12 35 39 47 16 2 FM-3539-16
14 16 22 17 1 FM-1416-17 35 39 47 26 2 FM-3539-26
15 17 23 9 1 FM-1517-09 40 44 52 30 2 FM-4044-30
15 17 23 12 1 FM-1517-12 40 44 52 40 2 FM-4044-40
15 17 23 17 1 FM-1517-17 45 50 58 50 2 FM-4550-50
126) After being assembled into a nominal size housing, in standard cases the inner diameter automatically adjusts 126) After being assembled into a nominal size housing, in standard cases the inner diameter automatically adjusts
to the tolerances (more information in material specific chapters) ASEAN 09/2023 ASEAN 09/2023 to the tolerances (more information in material specific chapters)
