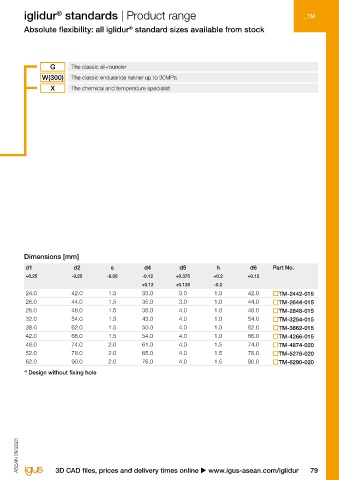

_TM iglidur standards | Product range iglidur standards | Product range _TM
Thrust washer (form T) Absolute flexibility: all iglidur standard sizes available from stock
®

Order key

Type Dimensions [mm] G The classic all-rounder
W(300) The classic endurance runner up to 30MPa
X The chemical and temperature specialist

iglidur ® material Form T Metric Inner Ø d1 Outer Ø d2 Length b1

Dimensions according to ISO 3547-1
and special dimensions
Choose the suitable material and
Imperial dimensions available dimensions for your application

Dimensions [mm] Dimensions [mm]

d1 d2 s d4 d5 h d6 Part No. d1 d2 s d4 d5 h d6 Part No.
+0.25 -0.25 -0.05 -0.12 +0.375 +0.2 +0.12 +0.25 -0.25 -0.05 -0.12 +0.375 +0.2 +0.12
+0.12 +0.125 -0.2 +0.12 +0.125 -0.2
6.0 20.0 1.5 13.0 1.5 1.0 20.0 TM-0620-015 24.0 42.0 1.5 33.0 3.0 1.0 42.0 TM-2442-015
8.0 18.0 1.5 13.0 1.5 1.0 18.0 TM-0818-015 26.0 44.0 1.5 35.0 3.0 1.0 44.0 TM-2644-015
10.0 18.0 1.0 4) 4) 0.7 18.0 TM-1018-010 28.0 48.0 1.5 38.0 4.0 1.0 48.0 TM-2848-015
12.0 24.0 1.5 18.0 1.5 1.0 24.0 TM-1224-015 32.0 54.0 1.5 43.0 4.0 1.0 54.0 TM-3254-015
14.0 26.0 1.5 20.0 2.0 1.0 26.0 TM-1426-015 38.0 62.0 1.5 50.0 4.0 1.0 62.0 TM-3862-015
15.0 24.0 1.5 19.5 1.5 1.0 24.0 TM-1524-015 42.0 66.0 1.5 54.0 4.0 1.0 66.0 TM-4266-015
16.0 30.0 1.5 22.0 2.0 1.0 30.0 TM-1630-015 48.0 74.0 2.0 61.0 4.0 1.5 74.0 TM-4874-020
18.0 32.0 1.5 25.0 2.0 1.0 32.0 TM-1832-015 52.0 78.0 2.0 65.0 4.0 1.5 78.0 TM-5278-020
20.0 36.0 1.5 28.0 3.0 1.0 36.0 TM-2036-015 62.0 90.0 2.0 76.0 4.0 1.5 90.0 TM-6290-020
22.0 38.0 1.5 30.0 3.0 1.0 38.0 TM-2238-015 4) Design without fixing hole

4) Design without fixing hole

ASEAN 09/2023 ASEAN 09/2023

78 Online tools and more information u www.igus-asean.com/iglidur 3D CAD files, prices and delivery times online u www.igus-asean.com/iglidur 79
