_SM iglidur standards | Product range iglidur standards | Product range _SM

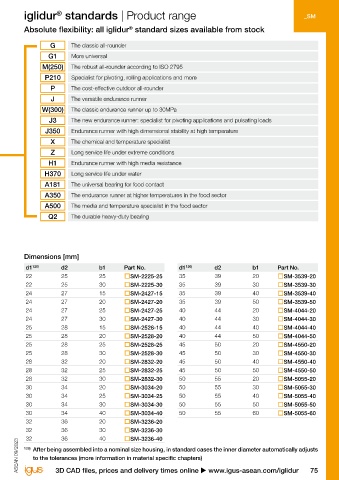

Sleeve bearings (form S) Absolute flexibility: all iglidur standard sizes available from stock
®

Order key G The classic all-rounder
f1 30°
G1 More universal
Type Dimensions [mm] M(250) The robust all-rounder according to ISO 2795
P210 Specialist for pivoting, rolling applications and more
d1 d2
0.5 P The cost-effective outdoor all-rounder

J
iglidur ® material Form S Inner Ø d1 Outer Ø d2 Length b1 J3 The new endurance runner: specialist for pivoting applications and pulsating loads
30°
The classic endurance runner up to 30MPa
b1 W(300) The versatile endurance runner

X
The chemical and temperature specialist
2) Thickness < 0.6mm: chamfer = 20° Metric J350 Endurance runner with high dimensional stability at high temperature
Z Long service life under extreme conditions
H1 Endurance runner with high media resistance
Chamfer in relation to d1 Choose the suitable material and
d1 [mm]: Ø 1-6 Ø 6-12 Ø 12-30 Ø > 30 dimensions for your application H370 Long service life under water
f [mm]: 0.3 0.5 0.8 1.2 A181 The universal bearing for food contact
Dimensions according to ISO 3547-1 A350 The endurance runner at higher temperatures in the food sector
With the exception of iglidur M250: ISO 2795 A500 The media and temperature specialist in the food sector
®
Q2 The durable heavy-duty bearing
Imperial dimensions available
u From page 1096

Dimensions [mm] Dimensions [mm]

d1 126) d2 b1 Part No. d1 126) d2 b1 Part No. d1 126) d2 b1 Part No. d1 126) d2 b1 Part No.
4 5.5 4 SM-0405-04 13 15 20 SM-1315-20 22 25 25 SM-2225-25 35 39 20 SM-3539-20
4 5.5 6 SM-0405-06 14 16 15 SM-1416-15 22 25 30 SM-2225-30 35 39 30 SM-3539-30
5 7 5 SM-0507-05 14 16 20 SM-1416-20 24 27 15 SM-2427-15 35 39 40 SM-3539-40
5 7 10 SM-0507-10 14 16 25 SM-1416-25 24 27 20 SM-2427-20 35 39 50 SM-3539-50
6 8 6 SM-0608-06 15 17 15 SM-1517-15 24 27 25 SM-2427-25 40 44 20 SM-4044-20
6 8 8 SM-0608-08 15 17 20 SM-1517-20 24 27 30 SM-2427-30 40 44 30 SM-4044-30
6 8 10 SM-0608-10 15 17 25 SM-1517-25 25 28 15 SM-2528-15 40 44 40 SM-4044-40
8 10 8 SM-0810-08 16 18 15 SM-1618-15 25 28 20 SM-2528-20 40 44 50 SM-4044-50
8 10 10 SM-0810-10 16 18 20 SM-1618-20 25 28 25 SM-2528-25 45 50 20 SM-4550-20
8 10 12 SM-0810-12 16 18 25 SM-1618-25 25 28 30 SM-2528-30 45 50 30 SM-4550-30
10 12 8 SM-1012-08 18 20 15 SM-1820-15 28 32 20 SM-2832-20 45 50 40 SM-4550-40
10 12 10 SM-1012-10 18 20 20 SM-1820-20 28 32 25 SM-2832-25 45 50 50 SM-4550-50
10 12 12 SM-1012-12 18 20 25 SM-1820-25 28 32 30 SM-2832-30 50 55 20 SM-5055-20
10 12 15 SM-1012-15 20 23 10 SM-2023-10 30 34 20 SM-3034-20 50 55 30 SM-5055-30
10 12 20 SM-1012-20 20 23 15 SM-2023-15 30 34 25 SM-3034-25 50 55 40 SM-5055-40
12 14 10 SM-1214-10 20 23 20 SM-2023-20 30 34 30 SM-3034-30 50 55 50 SM-5055-50
12 14 12 SM-1214-12 20 23 25 SM-2023-25 30 34 40 SM-3034-40 50 55 60 SM-5055-60
12 14 15 SM-1214-15 20 23 30 SM-2023-30 32 36 20 SM-3236-20
12 14 20 SM-1214-20 22 25 15 SM-2225-15 32 36 30 SM-3236-30
13 15 10 SM-1315-10 22 25 20 SM-2225-20 32 36 40 SM-3236-40

126) After being assembled into a nominal size housing, in standard cases the inner diameter automatically adjusts 126) After being assembled into a nominal size housing, in standard cases the inner diameter automatically adjusts
to the tolerances (more information in material specific chapters) ASEAN 09/2023 ASEAN 09/2023 to the tolerances (more information in material specific chapters)
74 Online tools and more information u www.igus-asean.com/iglidur 3D CAD files, prices and delivery times online u www.igus-asean.com/iglidur 75
