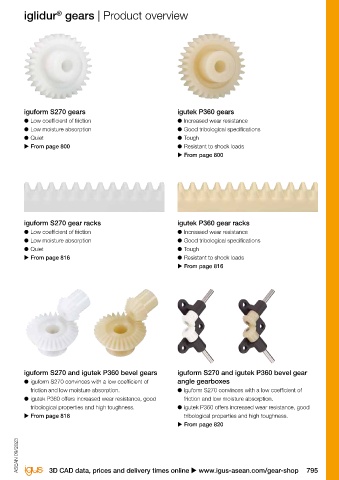

iglidur gears | Advantages iglidur gears | Product overview
®
®
Injection-moulded gears made of iglidur high-performance polymers
®

Lubrication-free

iglidur gears
®

Gears The gears made of the tribologically optimised
8 different modules iglidur high-performance polymers prove that
®
12-150 teeth a significantly longer service life is possible over
u From page 800 gears made of commercially available plastics. By iguform S270 gears igutek P360 gears
precisely adding reinforcing materials and solid ● Low coefficient of friction ● Increased wear resistance
lubricants, you can completely dispense with ● Low moisture absorption ● Good tribological specifications
additional lubricants. ● Quiet ● Tough
● Maintenance-free dry operation u From page 800 ● Resistant to shock loads
● Quiet u From page 800
● Corrosion-free

Racks ● Resistant to dirt
8 different modules
250mm Typical application areas
Rail industry
u From page 816 ●
● Automotive industry
● Medical technology
● Food/beverage industry iguform S270 gear racks igutek P360 gear racks
● Vending machinery ● Low coefficient of friction ● Increased wear resistance
● Packaging industry ● Low moisture absorption ● Good tribological specifications
● Quiet ● Tough
Available from stock u From page 816 ● Resistant to shock loads
Gear wheels Detailed information about delivery time online. u From page 816
6 transmission ratios
7 different modules Price breaks online
u From page 818 No minimum order value. No minimum order
quantity

Max. +250°C
min. -100°C

Service life calculation
u www.igus-asean.com/gear-expert

Angular gearbox
Module 1 Post processing possible iguform S270 and igutek P360 bevel gears iguform S270 and igutek P360 bevel gear
5 transmission ratios ● iguform S270 convinces with a low coefficient of angle gearboxes
u From page 820 friction and low moisture absorption. ● iguform S270 convinces with a low coefficient of
Tolerances for plastic gears
The hole diameters d1 for cylindrical gears made ● igutek P360 offers increased wear resistance, good friction and low moisture absorption.
of plastic are machined with reamers. It should be tribological properties and high toughness. ● igutek P360 offers increased wear resistance, good
noted that due to the behaviour of the material, u From page 818 tribological properties and high toughness.
as well as temperature influences, the holes of the u From page 820
gears may change by 0.02-0.04. The tolerance for
ASEAN 09/2023 ASEAN 09/2023
the bore diameter d1 is given as H10.

794 Online tools and more information u www.igus-asean.com/gears 3D CAD data, prices and delivery times online u www.igus-asean.com/gear-shop 795
