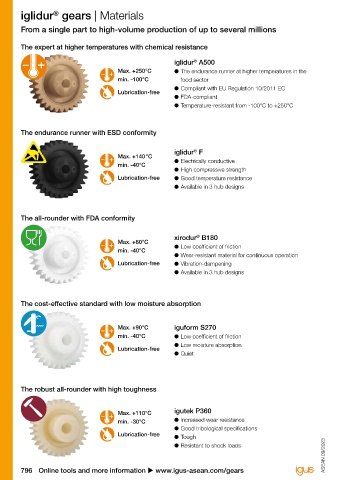

iglidur gears | Materials iglidur gears | Material properties
®
®
From a single part to high-volume production of up to several millions Technical data

®
®
®
The expert at higher temperatures with chemical resistance iguform igutek iglidur iglidur xirodur
S270 P360 A500 F B180
iglidur A500 General properties Unit
®
Max. +250°C ● The endurance runner at higher temperatures in the Density [g/cm ] 1.41 1.24 1.28 1.25 1.41
3
min. -100°C food sector
● Compliant with EU Regulation 10/2011 EC
Lubrication-free Colour white light beige brown black white
● FDA-compliant
● Temperature-resistant from -100°C to +250°C Max. moisture absorption at [% weight] 0.20 0.50 0.30 1.80 0.2
+23°C and 50% relative humidity

Max. water absorption [% weight] 0.65 2.10 0.50 8.40 0.7
The endurance runner with ESD conformity
Mechanical properties
iglidur F
®
Max. +140 °C Flexural modulus [MPa] 2,400 1,300 3,600 11,600 2,500
min. -40°C ● Electrically conductive
● High compressive strength Flexural strength [MPa] 65 50 140 260 68
Lubrication-free ● Good temperature resistance
● Available in 3 hub designs
Shore D hardness – – 83 84 77

Physical and thermal properties

The all-rounder with FDA conformity Max. continuous operating temperature [°C] +90 +110 +250 +140 +80

xirodur B180 Max. short-term operating temperature [°C] +100 +130 +300 +180 +110
®
Max. +80°C
min. -40°C ● Low coefficient of friction
● Wear-resistant material for continuous operation Min. continuous operating temperature [°C] -40 -30 -100 -40 -40
Lubrication-free ● Vibration-dampening
● Available in 3 hub designs Electrical properties

Specific cont act resistance [Ωcm] > 10 12 > 10 13 > 10 14 > 10 3 > 10 14

The cost-effective standard with low moisture absorption Surface resistance [Ω] > 10 14 > 10 13 > 10 13 > 10 2 > 10 14
Possible
FDA-compliant upon request – –
Max. +90°C iguform S270
min. -40°C ● Low coefficient of friction Other materials and desired dimensions upon request
● Low moisture absorption
Lubrication-free
● Quiet Chemicals Resistance
iguform S270 igutek P360 iglidur A500 iglidur F xirodur B180
®
®
®
Alcohols + + + + up to 0 +
Diluted acids 0 up to – + + 0 up to – 0 up to –
The robust all-rounder with high toughness Diluted alkalines + + + + +
Fuels + + + + +
Greases, oils without additives + + + + +
Max. +110°C igutek P360 Strong acids – – + – –
min. -30°C ● Increased wear resistance Strong alkalines + up to 0 + up to 0 + + up to 0 + up to 0
● Good tribological specifications
Lubrication-free + resistant 0 conditionally resistant – unstable All data at room temperature [+20°C]
● Tough
ASEAN 09/2023 ASEAN 09/2023
● Resistant to shock loads Further information on chemicals can be found in the shop u www.igus-asean.com/gear-shop

796 Online tools and more information u www.igus-asean.com/gears 3D CAD data, prices and delivery times online u www.igus-asean.com/gear-shop 797
