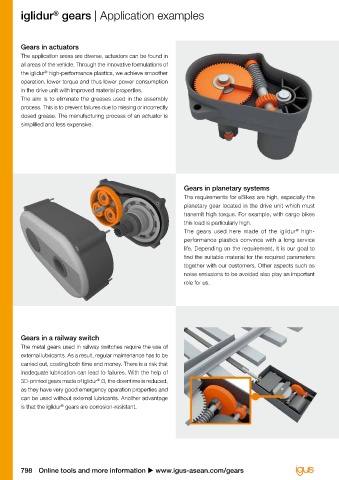

iglidur gears | Application examples iglidur gears | Online tools
®
®
iglidur gear expert
®
Gear service life calculator
Gears in actuators Enter the application parameters of your gear and calculate

The application areas are diverse, actuators can be found in the expected service life with just a few clicks.
all areas of the vehicle. Through the innovative formulations of
the iglidur high -per formance plastics, we achieve smoother u www.igus-asean.com/gear-expert
®
operation, lower tor que and thus lower power consumption
in the drive unit with improved mater ial properties.
The aim is to eliminate the greases used in the assembly
process. This is to prevent failures due to missing or incorrectly Gear/rack configurator
dosed grease. The manufacturing process of an actuator is Gear configurator online for single and double gears from
simplified and less expensive. 8 teeth. No CAD software or knowledge required.

u www.igus-asean.com/gear-configurator
u www.igus-asean.com/gear-rack

Gears in planetary systems Special parts
The requirements for eBikes are high, especially the Do you need gears with special geometries? We will be
planetary gear located in the drive unit which must happy to work with you to find the right manufacturing
transmit high torque. For example, with cargo bikes process and the right material for your project. From a single
this load is particularly high. part to high-volume production of up to several millions.
The gears used here made of the iglidur high -
®
performance plastics convince with a long service u www.igus-asean.com/gear-special-parts
life. Depending on the requirement, it is our goal to
find the suitable material for the required parameters
together with our customers. Other aspects such as
noise emissions to be avoided also play an important
role for us.

Gears in a railway switch Post-processing
The metal gears used in railway switches require the use of Our standard gears can be individually adapted to your
external lubricants. As a result, regular maintenance has to be requirements, e.g.:
carried out, costing both time and money. There is a risk that Hole diameter
inadequate lubrication can lead to failures. With the help of ● Hub design (key, D-Cut, etc.)
3D-printed gears made of iglidur i3, the downtime is reduced, ● Cross holes, grooves
®
as they have very good emergency operation properties and ● Thread
can be used without external lubricants. Another advantage ● …
is that the iglidur gears are corrosion-resistant. ●
®
u www.igus-asean.com/gears
