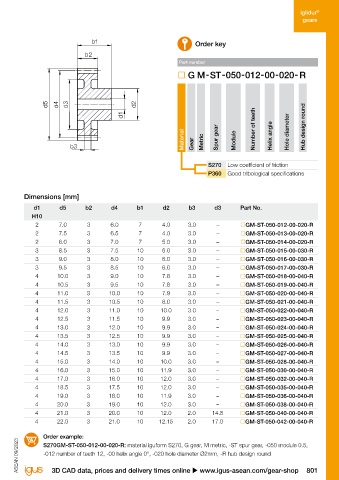

iglidur iglidur gears | Product range iglidur
®
®
gears gears
iguform S270 and igutek P360 gears
b1 Order key

b2
Part number

d5 d4 d3 d2
d1

iguform S270 igutek P360 Spur gear Number of teeth Helix angle Hole diameter Hub design round

b3 Material Gear Metric Module
● Low coefficient of friction ● Increased wear resistance
● Low moisture absorption ● Good tribological specifications S270 Low coefficient of friction
● Quiet ● Tough P360 Good tribological specifications
● Resistant to shock loads

Technical data Dimensions [mm]

Module Number of teeth Helix angle Hub design d1 d5 b2 d4 b1 d2 b3 d3 Part No.
[°] H10
0.5 12 0 Round 2 7.0 3 6.0 7 4.0 3.0 – GM-ST-050-012-00-020-R
0.5 13 0 Round 2 7.5 3 6.5 7 4.0 3.0 – GM-ST-050-013-00-020-R
0.5 14 0 Round 2 8.0 3 7.0 7 5.0 3.0 – GM-ST-050-014-00-020-R
0.5 15 0 Round 3 8.5 3 7.5 10 6.0 3.0 – GM-ST-050-015-00-030-R
0.5 16 0 Round 3 9.0 3 8.0 10 6.0 3.0 – GM-ST-050-016-00-030-R
0.5 17 0 Round 3 9.5 3 8.5 10 6.0 3.0 – GM-ST-050-017-00-030-R
0.5 18 0 Round 4 10.0 3 9.0 10 7.8 3.0 – GM-ST-050-018-00-040-R
0.5 19 0 Round 4 10.5 3 9.5 10 7.8 3.0 – GM-ST-050-019-00-040-R
0.5 20 0 Round 4 11.0 3 10.0 10 7.9 3.0 – GM-ST-050-020-00-040-R
0.5 21 0 Round 4 11.5 3 10.5 10 8.0 3.0 – GM-ST-050-021-00-040-R
0.5 22 0 Round 4 12.0 3 11.0 10 10.0 3.0 – GM-ST-050-022-00-040-R
0.5 23 0 Round 4 12.5 3 11.5 10 9.9 3.0 – GM-ST-050-023-00-040-R
0.5 24 0 Round 4 13.0 3 12.0 10 9.9 3.0 – GM-ST-050-024-00-040-R
0.5 25 0 Round 4 13.5 3 12.5 10 9.9 3.0 – GM-ST-050-025-00-040-R
0.5 26 0 Round 4 14.0 3 13.0 10 9.9 3.0 – GM-ST-050-026-00-040-R
0.5 27 0 Round 4 14.5 3 13.5 10 9.9 3.0 – GM-ST-050-027-00-040-R
0.5 28 0 Round 4 15.0 3 14.0 10 10.0 3.0 – GM-ST-050-028-00-040-R
0.5 30 0 Round 4 16.0 3 15.0 10 11.9 3.0 – GM-ST-050-030-00-040-R
0.5 32 0 Round 4 17.0 3 16.0 10 12.0 3.0 – GM-ST-050-032-00-040-R
0.5 35 0 Round 4 18.5 3 17.5 10 12.0 3.0 – GM-ST-050-035-00-040-R
0.5 36 0 Round 4 19.0 3 18.0 10 11.9 3.0 – GM-ST-050-036-00-040-R
0.5 38 0 Round 4 20.0 3 19.0 10 12.0 3.0 – GM-ST-050-038-00-040-R
0.5 40 0 Round 4 21.0 3 20.0 10 12.0 2.0 14.8 GM-ST-050-040-00-040-R
0.5 42 0 Round 4 22.0 3 21.0 10 12.15 2.0 17.0 GM-ST-050-042-00-040-R
iguform S270 and igutek P360 are available in over 300 variants and customisable according to your requirements
Order example:
ASEAN 09/2023 ASEAN 09/2023 -012 number of teeth 12, -00 helix angle 0°, -020 hole diameter Ø2mm, -R hub design round
S270GM-ST-050-012-00-020-R: material iguform S270, G gear, M metric, -ST spur gear, -050 module 0.5,

800 Online tools and more information u www.igus-asean.com/gears 3D CAD data, prices and delivery times online u www.igus-asean.com/gear-shop 801
