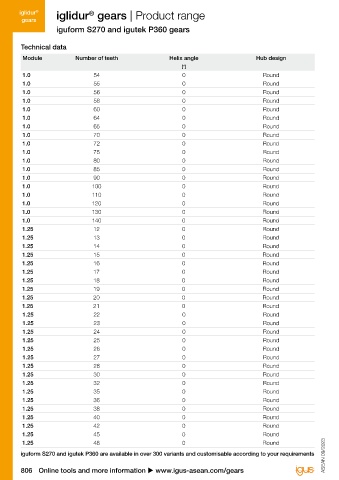

iglidur iglidur gears | Product range iglidur
®
®
gears gears
iguform S270 and igutek P360 gears
Technical data Dimensions [mm]

Module Number of teeth Helix angle Hub design d1 d5 b2 d4 b1 d2 b3 d3 Part No.
[°] H10
1.0 54 0 Round 8 56.0 9 54.0 18 21.0 4.6 46.0 GM-ST-100-054-00-080-R
1.0 55 0 Round 8 57.0 9 55.0 18 21.0 4.6 46.0 GM-ST-100-055-00-080-R
1.0 56 0 Round 8 58.0 9 56.0 18 21.0 4.6 46.0 GM-ST-100-056-00-080-R
1.0 58 0 Round 8 60.0 9 58.0 18 21.0 4.6 46.0 GM-ST-100-058-00-080-R
1.0 60 0 Round 8 62.0 9 60.0 18 21.0 4.6 46.0 GM-ST-100-060-00-080-R
1.0 64 0 Round 10 66.0 9 64.0 18 21.0 4.6 56.5 GM-ST-100-064-00-100-R
1.0 65 0 Round 10 67.0 9 65.0 18 21.0 4.6 56.5 GM-ST-100-065-00-100-R
1.0 70 0 Round 10 72.0 9 70.0 18 21.0 4.6 56.5 GM-ST-100-070-00-100-R
1.0 72 0 Round 10 74.0 9 72.0 18 21.0 4.6 66.0 GM-ST-100-072-00-100-R
1.0 75 0 Round 10 77.0 9 75.0 18 21.0 4.6 66.0 GM-ST-100-075-00-100-R
1.0 80 0 Round 10 82.0 9 80.0 18 21.0 4.6 66.0 GM-ST-100-080-00-100-R
1.0 85 0 Round 10 87.0 9 85.0 18 21.0 4.6 66.0 GM-ST-100-085-00-100-R
1.0 90 0 Round 10 92.0 9 90.0 18 21.0 4.6 76.0 GM-ST-100-090-00-100-R
1.0 100 0 Round 12 102.0 9 100.0 18 24.0 4.6 86.0 GM-ST-100-100-00-120-R
1.0 110 0 Round 12 112.0 9 110.0 18 24.0 4.6 96.0 GM-ST-100-110-00-120-R
1.0 120 0 Round 12 122.0 9 120.0 18 24.0 4.6 105.5 GM-ST-100-120-00-120-R
1.0 130 0 Round 12 132.0 9 130.0 18 24.0 4.6 115.0 GM-ST-100-130-00-120-R
1.0 140 0 Round 12 142.0 9 140.0 18 24.0 4.6 125.0 GM-ST-100-140-00-120-R
1.25 12 0 Round 5 17.5 10 15.0 19 9.0 10.0 – GM-ST-125-012-00-050-R
1.25 13 0 Round 5 18.75 10 16.25 19 9.0 10.0 – GM-ST-125-013-00-050-R
1.25 14 0 Round 5 20.0 10 17.5 19 9.0 10.0 – GM-ST-125-014-00-050-R
1.25 15 0 Round 5 21.25 10 18.75 19 9.0 7.0 13.0 GM-ST-125-015-00-050-R
1.25 16 0 Round 5 22.5 10 20.0 19 9.0 7.0 13.0 GM-ST-125-016-00-050-R
1.25 17 0 Round 5 23.75 10 21.25 19 9.0 7.0 13.0 GM-ST-125-017-00-050-R
1.25 18 0 Round 5 25.0 10 22.5 19 12.0 7.0 16.0 GM-ST-125-018-00-050-R
1.25 19 0 Round 5 26.25 10 23.75 19 12.0 7.0 16.0 GM-ST-125-019-00-050-R
1.25 20 0 Round 5 27.5 10 25.0 19 12.0 7.0 16.0 GM-ST-125-020-00-050-R
1.25 21 0 Round 6 28.75 10 26.25 19 15.0 7.0 18.5 GM-ST-125-021-00-060-R
1.25 22 0 Round 6 30.0 10 27.5 19 15.0 7.0 18.5 GM-ST-125-022-00-060-R
1.25 23 0 Round 6 31.25 10 28.75 19 15.0 7.0 18.5 GM-ST-125-023-00-060-R
1.25 24 0 Round 6 32.5 10 30.0 19 15.0 7.0 21.0 GM-ST-125-024-00-060-R
1.25 25 0 Round 6 33.75 10 31.25 19 15.0 7.0 21.0 GM-ST-125-025-00-060-R
1.25 26 0 Round 6 35.0 10 32.5 19 18.0 5.5 23.5 GM-ST-125-026-00-060-R
1.25 27 0 Round 6 36.25 10 33.75 19 18.0 5.5 23.5 GM-ST-125-027-00-060-R
1.25 28 0 Round 8 37.5 10 35.0 19 18.0 5.5 23.5 GM-ST-125-028-00-080-R
1.25 30 0 Round 8 40.0 10 37.5 19 18.0 5.5 27.0 GM-ST-125-030-00-080-R
1.25 32 0 Round 8 42.5 10 40.0 19 18.0 5.5 27.0 GM-ST-125-032-00-080-R
1.25 35 0 Round 8 46.25 10 43.75 19 18.0 5.5 27.0 GM-ST-125-035-00-080-R
1.25 36 0 Round 8 47.5 10 45.0 19 18.0 5.5 36.0 GM-ST-125-036-00-080-R
1.25 38 0 Round 8 50.0 10 47.5 19 18.0 5.5 36.0 GM-ST-125-038-00-080-R
1.25 40 0 Round 8 52.5 10 50.0 19 18.0 5.5 36.0 GM-ST-125-040-00-080-R
1.25 42 0 Round 8 55.0 10 52.5 19 18.0 5.5 36.0 GM-ST-125-042-00-080-R
1.25 45 0 Round 8 58.75 10 56.25 19 21.0 5.5 46.0 GM-ST-125-045-00-080-R
1.25 48 0 Round 8 62.5 10 60.0 19 21.0 5.5 46.0 GM-ST-125-048-00-080-R

iguform S270 and igutek P360 are available in over 300 variants and customisable according to your requirements ASEAN 09/2023 ASEAN 09/2023 Dimension description see page 801

806 Online tools and more information u www.igus-asean.com/gears 3D CAD data, prices and delivery times online u www.igus-asean.com/gear-shop 807
