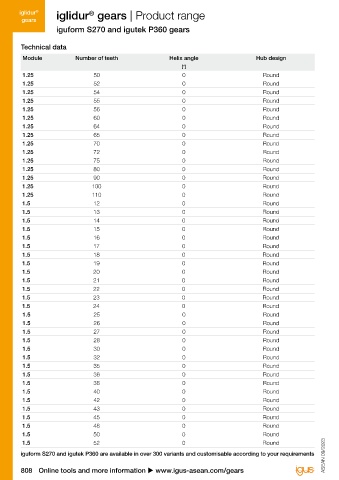

iglidur iglidur gears | Product range iglidur
®
®
gears gears
iguform S270 and igutek P360 gears
Technical data Dimensions [mm]

Module Number of teeth Helix angle Hub design d1 d5 b2 d4 b1 d2 b3 d3 Part No.
[°] H10
1.25 50 0 Round 8 65.0 10 62.5 19 21.0 5.5 46.0 GM-ST-125-050-00-080-R
1.25 52 0 Round 10 67.5 10 65.0 19 21.0 5.5 56.0 GM-ST-125-052-00-100-R
1.25 54 0 Round 10 70.0 10 67.5 19 21.0 5.5 56.0 GM-ST-125-054-00-100-R
1.25 55 0 Round 10 71.25 10 68.75 19 21.0 5.5 56.0 GM-ST-125-055-00-100-R
1.25 56 0 Round 10 72.5 10 70.0 19 21.0 5.5 56.0 GM-ST-125-056-00-100-R
1.25 60 0 Round 10 77.5 10 75.0 19 21.0 5.5 66.0 GM-ST-125-060-00-100-R
1.25 64 0 Round 10 82.5 10 80.0 19 21.0 5.5 66.0 GM-ST-125-064-00-100-R
1.25 65 0 Round 10 83.75 10 81.25 19 21.0 5.5 66.0 GM-ST-125-065-00-100-R
1.25 70 0 Round 10 90.0 10 87.5 19 21.0 5.5 76.0 GM-ST-125-070-00-100-R
1.25 72 0 Round 12 92.5 10 90.0 19 21.0 5.5 76.0 GM-ST-125-072-00-120-R
1.25 75 0 Round 10 96.25 10 93.75 19 21.0 5.5 76.0 GM-ST-125-075-00-100-R
1.25 80 0 Round 12 102.5 10 100.0 19 24.0 5.5 86.0 GM-ST-125-080-00-120-R
1.25 90 0 Round 12 115.0 10 112.5 19 24.0 5.5 95.0 GM-ST-125-090-00-120-R
1.25 100 0 Round 12 127.5 10 125.0 19 24.0 5.5 105.5 GM-ST-125-100-00-120-R
1.25 110 0 Round 12 140.0 10 137.5 19 24.0 5.5 115.0 GM-ST-125-110-00-120-R
1.5 12 0 Round 6 21.0 12 18.0 23 14.0 12.0 – GM-ST-150-012-00-060-R
1.5 13 0 Round 6 22.5 12 19.5 23 14.0 12.0 – GM-ST-150-013-00-060-R
1.5 14 0 Round 6 24.0 12 21.0 23 14.0 10.5 13.0 GM-ST-150-014-00-060-R
1.5 15 0 Round 6 25.5 12 22.5 23 14.0 10.5 16.0 GM-ST-150-015-00-060-R
1.5 16 0 Round 6 27.0 12 24.0 23 14.0 10.5 16.0 GM-ST-150-016-00-060-R
1.5 17 0 Round 6 28.5 12 25.5 23 14.0 10.5 16.0 GM-ST-150-017-00-060-R
1.5 18 0 Round 8 30.0 12 27.0 23 17.0 10.5 18.5 GM-ST-150-018-00-080-R
1.5 19 0 Round 8 31.5 12 28.5 23 17.0 10.5 18.5 GM-ST-150-019-00-080-R
1.5 20 0 Round 8 33.0 12 30.0 23 17.0 9.0 22.5 GM-ST-150-020-00-080-R
1.5 21 0 Round 8 34.5 12 31.5 23 17.0 5.0 22.5 GM-ST-150-021-00-080-R
1.5 22 0 Round 8 36.0 12 33.0 23 17.0 5.0 22.5 GM-ST-150-022-00-080-R
1.5 23 0 Round 8 37.5 12 34.5 23 17.0 5.0 22.5 GM-ST-150-023-00-080-R
1.5 24 0 Round 8 39.0 12 36.0 23 19.0 5.0 26.5 GM-ST-150-024-00-080-R
1.5 25 0 Round 8 40.5 12 37.5 23 19.0 5.0 26.5 GM-ST-150-022-00-080-R
1.5 26 0 Round 8 42.0 12 39.0 23 19.0 5.0 26.5 GM-ST-150-022-00-080-R
1.5 27 0 Round 8 43.5 12 40.5 23 19.0 5.0 25.5 GM-ST-150-027-00-080-R
1.5 28 0 Round 8 45.0 12 42.0 23 19.0 5.0 25.5 GM-ST-150-028-00-080-R
1.5 30 0 Round 10 48.0 12 45.0 23 24.0 5.0 33.5 GM-ST-150-030-00-100-R
1.5 32 0 Round 10 51.0 12 48.0 23 24.0 5.0 33.5 GM-ST-150-032-00-100-R
1.5 35 0 Round 10 55.5 12 52.5 23 24.0 5.0 41.5 GM-ST-150-035-00-100-R
1.5 36 0 Round 10 57.0 12 54.0 23 24.0 5.0 41.5 GM-ST-150-036-00-100-R
1.5 38 0 Round 10 60.0 12 57.0 23 24.0 5.0 41.5 GM-ST-150-038-00-100-R
1.5 40 0 Round 10 63.0 12 60.0 23 24.0 5.0 48.5 GM-ST-150-040-00-100-R
1.5 42 0 Round 10 66.0 12 63.0 23 24.0 5.0 48.5 GM-ST-150-042-00-100-R
1.5 43 0 Round 10 67.5 12 64.5 23 24.0 5.0 48.5 GM-ST-150-043-00-100-R
1.5 45 0 Round 10 70.5 12 67.5 23 24.0 5.0 48.5 GM-ST-150-045-00-100-R
1.5 48 0 Round 10 75.0 12 72.0 23 24.0 5.0 48.5 GM-ST-150-048-00-100-R
1.5 50 0 Round 12 78.0 12 75.0 23 27.0 5.0 63.0 GM-ST-150-050-00-120-R
1.5 52 0 Round 12 81.0 12 78.0 23 27.0 5.0 63.0 GM-ST-150-052-00-120-R

iguform S270 and igutek P360 are available in over 300 variants and customisable according to your requirements ASEAN 09/2023 ASEAN 09/2023 Dimension description see page 801

808 Online tools and more information u www.igus-asean.com/gears 3D CAD data, prices and delivery times online u www.igus-asean.com/gear-shop 809
