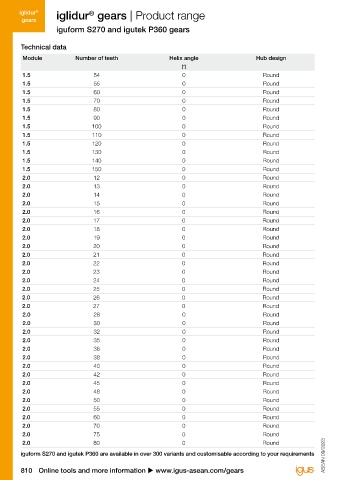

iglidur iglidur gears | Product range iglidur
®
®
gears gears
iguform S270 and igutek P360 gears
Technical data Dimensions [mm]

Module Number of teeth Helix angle Hub design d1 d5 b2 d4 b1 d2 b3 d3 Part No.
[°] H10
1.5 54 0 Round 12 84.0 12 81.0 23 27.0 5.0 63.0 GM-ST-150-054-00-120-R
1.5 55 0 Round 12 85.5 12 82.5 23 27.0 5.0 63.0 GM-ST-150-055-00-120-R
1.5 60 0 Round 12 93.0 12 90.0 23 27.0 5.0 63.0 GM-ST-150-060-00-120-R
1.5 70 0 Round 14 108.0 12 105.0 23 30.0 5.0 88.0 GM-ST-150-070-00-140-R
1.5 80 0 Round 14 123.0 12 120.0 23 30.0 5.0 104.0 GM-ST-150-080-00-140-R
1.5 90 0 Round 14 138.0 12 135.0 23 30.0 5.0 116.0 GM-ST-150-090-00-140-R
1.5 100 0 Round 20 153.0 19 150.0 34 40.0 8.0 133.0 GM-ST-150-100-00-200-R
1.5 110 0 Round 20 168.0 19 165.0 34 40.0 8.0 148.0 GM-ST-150-110-00-200-R
1.5 120 0 Round 20 183.0 19 180.0 34 40.0 8.0 163.0 GM-ST-150-120-00-200-R
1.5 130 0 Round 20 198.0 19 195.0 34 40.0 8.0 178.0 GM-ST-150-130-00-200-R
1.5 140 0 Round 20 213.0 19 210.0 34 40.0 8.0 193.0 GM-ST-150-140-00-200-R
1.5 150 0 Round 20 228.0 19 225.0 34 40.0 8.0 208.0 GM-ST-150-150-00-200-R
2.0 12 0 Round 8 28.0 15 24.0 27 18.5 13.5 16.0 GM-ST-200-012-00-080-R
2.0 13 0 Round 8 30.0 15 26.0 27 18.5 13.5 18.5 GM-ST-200-013-00-080-R
2.0 14 0 Round 8 32.0 15 28.0 27 18.5 13.5 18.5 GM-ST-200-014-00-080-R
2.0 15 0 Round 8 34.0 15 30.0 27 18.5 12.0 22.0 GM-ST-200-015-00-080-R
2.0 16 0 Round 8 36.0 15 32.0 27 17.5 6.0 22.0 GM-ST-200-016-00-080-R
2.0 17 0 Round 8 38.0 15 34.0 27 17.5 6.0 24.0 GM-ST-200-017-00-080-R
2.0 18 0 Round 8 40.0 15 36.0 27 17.5 6.0 25.0 GM-ST-200-018-00-080-R
2.0 19 0 Round 8 42.0 15 38.0 27 17.5 6.0 27.0 GM-ST-200-019-00-080-R
2.0 20 0 Round 10 44.0 15 40.0 27 20.0 6.0 28.0 GM-ST-200-020-00-100-R
2.0 21 0 Round 10 46.0 15 42.0 27 20.0 6.0 28.0 GM-ST-200-021-00-100-R
2.0 22 0 Round 10 48.0 15 44.0 27 20.0 6.0 28.0 GM-ST-200-022-00-100-R
2.0 23 0 Round 10 50.0 15 46.0 27 24.0 6.0 35.0 GM-ST-200-023-00-100-R
2.0 24 0 Round 10 52.0 15 48.0 27 24.0 6.0 35.0 GM-ST-200-024-00-100-R
2.0 25 0 Round 10 54.0 15 50.0 27 24.0 6.0 35.0 GM-ST-200-025-00-100-R
2.0 26 0 Round 10 56.0 15 52.0 27 24.0 6.0 38.5 GM-ST-200-026-00-100-R
2.0 27 0 Round 10 58.0 15 54.0 27 24.0 6.0 38.5 GM-ST-200-027-00-100-R
2.0 28 0 Round 10 60.0 15 56.0 27 24.0 6.0 38.5 GM-ST-200-028-00-100-R
2.0 30 0 Round 10 64.0 15 60.0 27 24.0 6.0 43.5 GM-ST-200-030-00-100-R
2.0 32 0 Round 10 68.0 15 64.0 27 26.0 6.0 44.0 GM-ST-200-032-00-100-R
2.0 35 0 Round 12 74.0 15 70.0 27 26.0 6.0 54.0 GM-ST-200-035-00-120-R
2.0 36 0 Round 12 76.0 15 72.0 27 26.0 6.0 54.0 GM-ST-200-036-00-120-R
2.0 38 0 Round 12 80.0 15 76.0 27 26.0 6.0 61.5 GM-ST-200-038-00-120-R
2.0 40 0 Round 12 84.0 15 80.0 27 26.0 6.0 61.5 GM-ST-200-040-00-120-R
2.0 42 0 Round 12 88.0 15 84.0 27 26.0 6.0 61.5 GM-ST-200-042-00-120-R
2.0 45 0 Round 14 94.0 15 90.0 27 30.0 6.0 68.0 GM-ST-200-045-00-140-R
2.0 48 0 Round 14 100.0 15 96.0 27 30.0 6.0 74.0 GM-ST-200-048-00-140-R
2.0 50 0 Round 14 104.0 15 100.0 27 30.0 6.0 78.0 GM-ST-200-050-00-140-R
2.0 55 0 Round 14 114.0 15 110.0 27 30.0 6.0 87.5 GM-ST-200-055-00-140-R
2.0 60 0 Round 14 124.0 15 120.0 27 30.0 6.0 97.5 GM-ST-200-060-00-140-R
2.0 70 0 Round 14 144.0 15 140.0 27 30.0 6.0 117.0 GM-ST-200-070-00-140-R
2.0 75 0 Round 20 154.0 19 150.0 34 40.0 8.0 133.0 GM-ST-200-075-00-200-R
2.0 80 0 Round 20 164.0 19 160.0 34 40.0 8.0 133.0 GM-ST-200-080-00-200-R

iguform S270 and igutek P360 are available in over 300 variants and customisable according to your requirements ASEAN 09/2023 ASEAN 09/2023 Dimension description see page 801

810 Online tools and more information u www.igus-asean.com/gears 3D CAD data, prices and delivery times online u www.igus-asean.com/gear-shop 811
