iglidur iglidur gears | Product range iglidur
®
®
gears gears
iguform S270 and igutek P360 gears

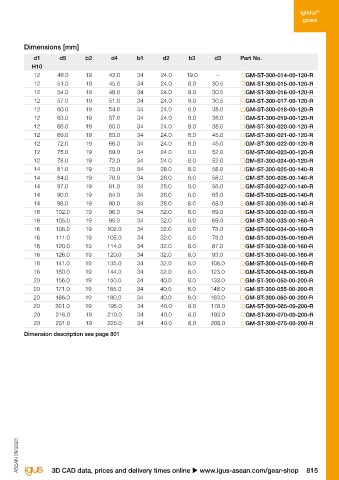

Technical data Dimensions [mm]

Module Number of teeth Helix angle Hub design d1 d5 b2 d4 b1 d2 b3 d3 Part No.
[°] H10
3.0 14 0 Round 12 48.0 19 42.0 34 24.0 19.0 – GM-ST-300-014-00-120-R
3.0 15 0 Round 12 51.0 19 45.0 34 24.0 8.0 30.5 GM-ST-300-015-00-120-R
3.0 16 0 Round 12 54.0 19 48.0 34 24.0 8.0 30.5 GM-ST-300-016-00-120-R
3.0 17 0 Round 12 57.0 19 51.0 34 24.0 8.0 30.5 GM-ST-300-017-00-120-R
3.0 18 0 Round 12 60.0 19 54.0 34 24.0 8.0 38.0 GM-ST-300-018-00-120-R
3.0 19 0 Round 12 63.0 19 57.0 34 24.0 8.0 38.0 GM-ST-300-019-00-120-R
3.0 20 0 Round 12 66.0 19 60.0 34 24.0 8.0 38.0 GM-ST-300-020-00-120-R
3.0 21 0 Round 12 69.0 19 63.0 34 24.0 8.0 45.0 GM-ST-300-021-00-120-R
3.0 22 0 Round 12 72.0 19 66.0 34 24.0 8.0 45.0 GM-ST-300-022-00-120-R
3.0 23 0 Round 12 75.0 19 69.0 34 24.0 8.0 52.0 GM-ST-300-023-00-120-R
3.0 24 0 Round 12 78.0 19 72.0 34 24.0 8.0 52.0 GM-ST-300-024-00-120-R
3.0 25 0 Round 14 81.0 19 75.0 34 28.0 8.0 58.0 GM-ST-300-025-00-140-R
3.0 26 0 Round 14 84.0 19 78.0 34 28.0 8.0 58.0 GM-ST-300-026-00-140-R
3.0 27 0 Round 14 87.0 19 81.0 34 28.0 8.0 58.0 GM-ST-300-027-00-140-R
3.0 28 0 Round 14 90.0 19 84.0 34 28.0 8.0 65.0 GM-ST-300-028-00-140-R
3.0 30 0 Round 14 96.0 19 90.0 34 28.0 8.0 68.0 GM-ST-300-030-00-140-R
3.0 32 0 Round 16 102.0 19 96.0 34 32.0 8.0 69.0 GM-ST-300-032-00-160-R
3.0 33 0 Round 16 105.0 19 99.0 34 32.0 8.0 69.0 GM-ST-300-033-00-160-R
3.0 34 0 Round 16 108.0 19 102.0 34 32.0 8.0 78.0 GM-ST-300-034-00-160-R
3.0 35 0 Round 16 111.0 19 105.0 34 32.0 8.0 78.0 GM-ST-300-035-00-160-R
3.0 38 0 Round 16 120.0 19 114.0 34 32.0 8.0 87.0 GM-ST-300-038-00-160-R
3.0 40 0 Round 16 126.0 19 120.0 34 32.0 8.0 93.0 GM-ST-300-040-00-160-R
3.0 45 0 Round 16 141.0 19 135.0 34 32.0 8.0 108.0 GM-ST-300-045-00-160-R
3.0 48 0 Round 16 150.0 19 144.0 34 32.0 8.0 123.0 GM-ST-300-048-00-160-R
3.0 50 0 Round 20 156.0 19 150.0 34 40.0 8.0 133.0 GM-ST-300-050-00-200-R
3.0 55 0 Round 20 171.0 19 165.0 34 40.0 8.0 148.0 GM-ST-300-055-00-200-R
3.0 60 0 Round 20 186.0 19 180.0 34 40.0 8.0 163.0 GM-ST-300-060-00-200-R
3.0 65 0 Round 20 201.0 19 195.0 34 40.0 8.0 178.0 GM-ST-300-065-00-200-R
3.0 70 0 Round 20 216.0 19 210.0 34 40.0 8.0 193.0 GM-ST-300-070-00-200-R
3.0 75 0 Round 20 231.0 19 225.0 34 40.0 8.0 208.0 GM-ST-300-075-00-200-R
iguform S270 and igutek P360 are available in over 300 variants and customisable according to your requirements Dimension description see page 801
