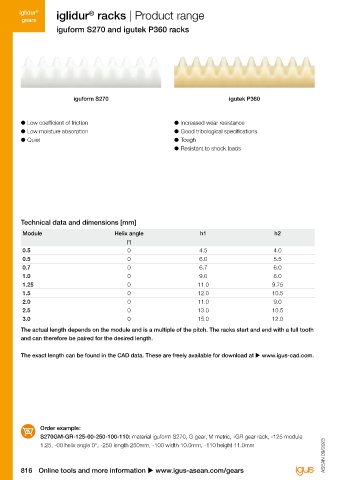

iglidur iglidur racks | Product range iglidur
®
®
gears gears
iguform S270 and igutek P360 racks
Order key

Part number Dimensions [mm]

L

iguform S270 igutek P360
h1 h2 h3

● Low coefficient of friction ● Increased wear resistance b L
● Low moisture absorption ● Good tribological specifications
● Quiet ● Tough h1
● Resistant to shock loads h2 h3 Material Module Helix angle Length
b Gear Metric Rack Width Height

S270 Low coefficient of friction
P360 Good tribological specifications

Technical data and dimensions [mm]
Module Helix angle h1 h2 h3 b L Part No.
[°]
0.5 0 4.5 4.0 3.4 4.0 250 GM-GR-050-00-250-040-045
0.5 0 6.0 5.5 4.9 4.0 250 GM-GR-050-00-250-040-060
0.7 0 6.7 6.0 5.1 6.0 250 GM-GR-070-00-250-060-067
1.0 0 9.0 8.0 6.8 9.0 250 GM-GR-100-00-250-090-090
1.25 0 11.0 9.75 8.3 10.0 250 GM-GR-125-00-250-100-110
1.5 0 12.0 10.5 8.75 12.0 250 GM-GR-150-00-250-120-120
2.0 0 11.0 9.0 6.6 15.4 250 GM-GR-200-00-250-154-110
2.5 0 13.0 10.5 7.7 17.0 250 GM-GR-250-00-250-170-130
3.0 0 15.0 12.0 8.5 19.4 250 GM-GR-300-00-250-194-150

The actual length depends on the module and is a multiple of the pitch. The racks start and end with a full tooth
and can therefore be paired for the desired length.

The exact length can be found in the CAD data. These are freely available for download at u www.igus-cad.com.

Order example:
S270GM-GR-125-00-250-100-110: material iguform S270, G gear, M metric, -GR gear rack, -125 module
ASEAN 09/2023 ASEAN 09/2023
1.25, -00 helix angle 0°, -250 length 250mm, -100 width 10.0mm, -110 height 11.0mm

816 Online tools and more information u www.igus-asean.com/gears 3D CAD data, prices and delivery times online u www.igus-asean.com/gear-shop 817
