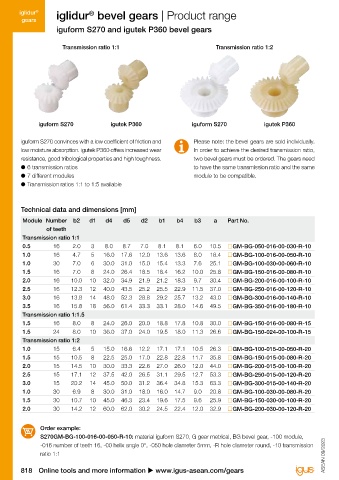

iglidur iglidur bevel gears | Product range iglidur
®
®
gears gears
iguform S270 and igutek P360 bevel gears
Order key
Transmission ratio 1:1 Transmission ratio 1:2

b2
Part number Dimensions [mm]

a b1
b3 b4
iguform S270 igutek P360 iguform S270 igutek P360 mission ratio

iguform S270 convinces with a low coefficient of friction and Please note: the bevel gears are sold individually. d1 Number of teeth Hole diameter Hub design round
low moisture absorption. igutek P360 offers increased wear In order to achieve the desired trans mission ratio, d2 Material Bevel gear Module Helix angle
d4
resistance, good tribological properties and high toughness. two bevel gears must be ordered. The gears need d5 Gear Metric Trans
● 6 transmission ratios to have the same tran smi ssion ratio and the same
● 7 different modules module to be compatible. S270 Low coefficient of friction
● Transmission ratios 1:1 to 1:5 available P360 Good tribological specifications

Technical data and dimensions [mm]

Module Number b2 d1 d4 d5 d2 b1 b4 b3 a Part No. Module Number b2 d1 d4 d5 d2 b1 b4 b3 a Part No.
of teeth of teeth
Transmission ratio 1:1 2.5 30 17.4 16 75.0 77.2 35.8 29.6 27.6 15.2 40.8 GM-BG-250-030-00-160-R-20
0.5 16 2.0 3 8.0 8.7 7.0 8.1 8.1 6.0 10.5 GM-BG-050-016-00-030-R-10 3.0 30 20.3 18 90.0 92.5 45.0 37.5 33.8 19.0 49.9 GM-BG-300-030-00-180-R-20
1.0 16 4.7 5 16.0 17.6 12.0 13.6 13.6 8.0 18.4 GM-BG-100-016-00-050-R-10 Transmission ratio 1:3
1.0 30 7.0 6 30.0 31.0 15.0 15.4 13.3 7.6 25.1 GM-BG-100-030-00-060-R-10 1.0 15 9.0 5 15.0 16.4 12.3 20.5 – 11.4 34.5 GM-BG-100-015-00-050-R-30
1.5 16 7.0 8 24.0 26.4 18.5 18.4 16.2 10.0 25.8 GM-BG-150-016-00-080-R-10 1.5 15 14.0 8 22.5 25.1 17.2 26.6 – 12.3 47.3 GM-BG-150-015-00-080-R-30
2.0 16 10.0 10 32.0 34.9 21.9 21.2 18.3 9.7 30.4 GM-BG-200-016-00-100-R-10 2.0 10 12.2 6 20.0 23.6 15.5 25.0 – 12.0 433. GM-BG-200-010-00-060-R-30
2.5 16 12.3 12 40.0 43.5 25.2 25.5 22.9 11.5 37.0 GM-BG-250-016-00-120-R-10 2.5 10 15.2 8 25.0 29.6 18.8 28.7 – 13.0 52.4 GM-BG-250-010-00-080-R-30
3.0 16 13.8 14 48.0 52.3 28.8 29.2 25.7 13.2 43.0 GM-BG-300-016-00-140-R-10 1.0 45 8.8 10 45.0 45.7 23.4 17.9 16.2 9.6 22.4 GM-BG-100-045-00-100-R-30
3.5 16 15.8 18 56.0 61.4 33.3 33.1 28.0 14.6 49.5 GM-BG-350-016-00-180-R-10 1.5 45 14.0 12 67.5 68.5 30.4 23.2 21.4 11.8 29.7 GM-BG-150-045-00-120-R-30
Transmission ratio 1:1.5 2.0 30 12.5 12 60.0 61.7 30.3 22.5 19.8 11.8 28.0 GM-BG-200-030-00-120-R-30
1.5 16 8.0 8 24.0 26.0 20.0 18.8 17.8 10.8 30.0 GM-BG-150-016-00-080-R-15 2.5 30 15.7 18 75.0 77.2 36.0 29.0 25.0 15.9 35.8 GM-BG-250-030-00-180-R-30
1.5 24 8.0 10 36.0 37.0 24.0 19.5 18.0 11.3 26.6 GM-BG-150-024-00-100-R-15 Transmission ratio 1:4
Transmission ratio 1:2 1.0 10 8.0 4 10.0 12.0 7.9 17.7 – 9.6 30.2 GM-BG-100-010-00-040-R-40
1.0 15 6.4 5 15.0 16.6 12.2 17.1 17.1 10.5 26.3 GM-BG-100-015-00-050-R-20 1.5 10 12.2 5 15.0 18.0 11.3 23.2 – 11.0 41.5 GM-BG-150-010-00-050-R-40
1.5 15 10.5 8 22.5 25.0 17.0 22.8 22.8 11.7 35.8 GM-BG-150-015-00-080-R-20 2.0 10 16.0 6 20.0 23.7 14.0 28.7 – 12.8 53.5 GM-BG-200-010-00-060-R-40
2.0 15 14.5 10 30.0 33.3 22.6 27.0 26.0 12.0 44.0 GM-BG-200-015-00-100-R-20 1.0 40 8.4 10 40.0 41.0 23.4 16.9 15.5 10.8 20.2 GM-BG-100-040-00-100-R-40
2.5 15 17.1 12 37.5 42.0 26.5 31.1 29.5 12.7 53.3 GM-BG-250-015-00-120-R-20 1.5 40 12.3 12 60.0 60.7 30.4 21.0 19.0 12.8 25.2 GM-BG-150-040-00-120-R-40
3.0 15 20.2 14 45.0 50.0 31.2 36.4 34.8 15.3 63.3 GM-BG-300-015-00-140-R-20 2.0 40 16.2 18 80.0 81.2 36.1 27.0 24.4 17.0 32.5 GM-BG-200-040-00-180-R-40
1.0 30 6.9 8 30.0 31.0 18.0 16.0 14.7 9.0 20.8 GM-BG-100-030-00-080-R-20 Transmission ratio 1:5
1.5 30 10.7 10 45.0 46.3 23.4 19.6 17.5 9.6 25.9 GM-BG-150-030-00-100-R-20 1.0 12 9.9 4 12.0 13.7 9.5 20.2 – 10.1 40.6 GM-BG-100-012-00-040-R-50
2.0 30 14.2 12 60.0 62.0 30.2 24.5 22.4 12.0 32.9 GM-BG-200-030-00-120-R-20 1.0 60 9.5 10 60.0 60.3 20.5 17.4 15.3 11.2 21.2 GM-BG-100-060-00-100-R-50

Order example:
S270GM-BG-100-016-00-050-R-10: material iguform S270, G gear metrical, BG bevel gear, -100 module,
-016 number of teeth 16, -00 helix angle 0°, -050 hole diameter 5mm, -R hole diameter round, -10 transmission
ratio 1:1 ASEAN 09/2023 ASEAN 09/2023

818 Online tools and more information u www.igus-asean.com/gears 3D CAD data, prices and delivery times online u www.igus-asean.com/bevel-gear-shop 819
