iglidur iglidur angular gearboxes | Product range iglidur
®
®
gears gears

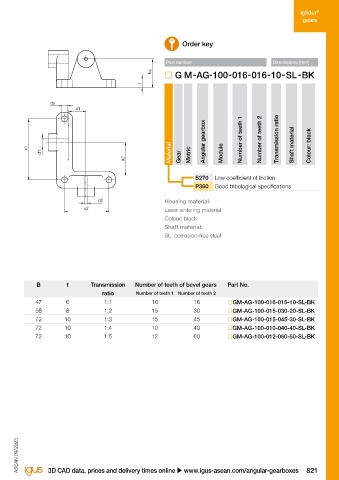

iguform S270 and igutek P360 angular gearboxes with bevel gears
Order key
Transmission ratio 1:1 Transmission ratio 1:5

Part number Dimensions [mm]
ha

t

dx
a1

iguform S270 igutek P360 iguform S270 igutek P360 mission ratio

500 Angular gearbox Number of teeth 1 Number of teeth 2 Shaft material Colour: black
● Module 1 x1 d1 Material Module
● 5 transmission ratios 400 a2 Gear Metric Trans
● Transmission ratios 1:1 to 1:5 available
● The bevel gears are pinned and interchangeable 300 S270 Low coefficient of friction
● When mounting the shafts in the housing, no external 200 P360 Good tribological specifications
lubricants are required
Weight [g] 100 x2 d2 Housing material:
Laser sintering material
0
Polymer Aluminium Steel Colour: black
Shaft material:
Weight savings of up to a factor of 7 with housings
made of plastic compared to steel and aluminium SL: corrosion-free steel

Technical data and dimensions [mm]

Module a1 a2 d1 d2 dx x1 x2 ha L B t Transmission Number of teeth of bevel gears Part No.
ratio Number of teeth 1 Number of teeth 2
1.0 18.4 18.4 5 5 5 34 34 15 47 47 6 1:1 16 16 GM-AG-100-016-016-10-SL-BK
1.0 20.9 26.4 8 5 5 54 44 20 68 58 8 1:2 15 30 GM-AG-100-015-030-20-SL-BK
1.0 22.7 34.3 10 5 7 64 54 25 82 72 10 1:3 15 45 GM-AG-100-015-045-30-SL-BK
1.0 20.1 30.1 10 4 7 64 54 25 82 72 10 1:4 10 40 GM-AG-100-010-040-40-SL-BK
1.0 21.0 40.5 10 4 7 74 54 35 92 72 10 1:5 12 60 GM-AG-100-012-060-50-SL-BK

Order example:
S270GM-AG-100-016-016-10-SL-BK: material iguform S270, G gear, M metrical, -AG angular gearbox,
-100 module 1, -016 number of teeth bevel gear 1, -016 number of teeth bevel gear 2, -10 transmission ratio
1:1, -SL steel shaft, -BK laser sintering material black ASEAN 09/2023 ASEAN 09/2023

820 Online tools and more information u www.igus-asean.com/gears 3D CAD data, prices and delivery times online u www.igus-asean.com/angular-gearboxes 821
