iglidur iglidur gears | Product range iglidur
®
®
gears gears
iguform S270 and igutek P360 gears

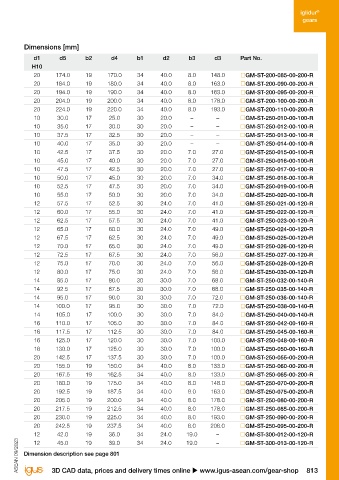

Technical data Dimensions [mm]

Module Number of teeth Helix angle Hub design d1 d5 b2 d4 b1 d2 b3 d3 Part No.
[°] H10
2.0 85 0 Round 20 174.0 19 170.0 34 40.0 8.0 148.0 GM-ST-200-085-00-200-R
2.0 90 0 Round 20 184.0 19 180.0 34 40.0 8.0 163.0 GM-ST-200-090-00-200-R
2.0 95 0 Round 20 194.0 19 190.0 34 40.0 8.0 163.0 GM-ST-200-095-00-200-R
2.0 100 0 Round 20 204.0 19 200.0 34 40.0 8.0 178.0 GM-ST-200-100-00-200-R
2.0 110 0 Round 20 224.0 19 220.0 34 40.0 8.0 193.0 GM-ST-200-110-00-200-R
2.5 10 0 Round 10 30.0 17 25.0 30 20.0 – – GM-ST-250-010-00-100-R
2.5 12 0 Round 10 35.0 17 30.0 30 20.0 – – GM-ST-250-012-00-100-R
2.5 13 0 Round 10 37.5 17 32.5 30 20.0 – – GM-ST-250-013-00-100-R
2.5 14 0 Round 10 40.0 17 35.0 30 20.0 – – GM-ST-250-014-00-100-R
2.5 15 0 Round 10 42.5 17 37.5 30 20.0 7.0 27.0 GM-ST-250-015-00-100-R
2.5 16 0 Round 10 45.0 17 40.0 30 20.0 7.0 27.0 GM-ST-250-016-00-100-R
2.5 17 0 Round 10 47.5 17 42.5 30 20.0 7.0 27.0 GM-ST-250-017-00-100-R
2.5 18 0 Round 10 50.0 17 45.0 30 20.0 7.0 34.0 GM-ST-250-018-00-100-R
2.5 19 0 Round 10 52.5 17 47.5 30 20.0 7.0 34.0 GM-ST-250-019-00-100-R
2.5 20 0 Round 10 55.0 17 50.0 30 20.0 7.0 34.0 GM-ST-250-020-00-100-R
2.5 21 0 Round 12 57.5 17 52.5 30 24.0 7.0 41.0 GM-ST-250-021-00-120-R
2.5 22 0 Round 12 60.0 17 55.0 30 24.0 7.0 41.0 GM-ST-250-022-00-120-R
2.5 23 0 Round 12 62.5 17 57.5 30 24.0 7.0 41.0 GM-ST-250-023-00-120-R
2.5 24 0 Round 12 65.0 17 60.0 30 24.0 7.0 49.0 GM-ST-250-024-00-120-R
2.5 25 0 Round 12 67.5 17 62.5 30 24.0 7.0 49.0 GM-ST-250-025-00-120-R
2.5 26 0 Round 12 70.0 17 65.0 30 24.0 7.0 49.0 GM-ST-250-026-00-120-R
2.5 27 0 Round 12 72.5 17 67.5 30 24.0 7.0 56.0 GM-ST-250-027-00-120-R
2.5 28 0 Round 12 75.0 17 70.0 30 24.0 7.0 56.0 GM-ST-250-028-00-120-R
2.5 30 0 Round 12 80.0 17 75.0 30 24.0 7.0 56.0 GM-ST-250-030-00-120-R
2.5 32 0 Round 14 85.0 17 80.0 30 30.0 7.0 68.0 GM-ST-250-032-00-140-R
2.5 35 0 Round 14 92.5 17 87.5 30 30.0 7.0 68.0 GM-ST-250-035-00-140-R
2.5 36 0 Round 14 95.0 17 90.0 30 30.0 7.0 72.0 GM-ST-250-036-00-140-R
2.5 38 0 Round 14 100.0 17 95.0 30 30.0 7.0 72.0 GM-ST-250-038-00-140-R
2.5 40 0 Round 14 105.0 17 100.0 30 30.0 7.0 84.0 GM-ST-250-040-00-140-R
2.5 42 0 Round 16 110.0 17 105.0 30 30.0 7.0 84.0 GM-ST-250-042-00-160-R
2.5 45 0 Round 16 117.5 17 112.5 30 30.0 7.0 84.0 GM-ST-250-045-00-160-R
2.5 48 0 Round 16 125.0 17 120.0 30 30.0 7.0 100.0 GM-ST-250-048-00-160-R
2.5 50 0 Round 16 130.0 17 125.0 30 30.0 7.0 100.0 GM-ST-250-050-00-160-R
2.5 55 0 Round 20 142.5 17 137.5 30 30.0 7.0 100.0 GM-ST-250-055-00-200-R
2.5 60 0 Round 20 155.0 19 150.0 34 40.0 8.0 133.0 GM-ST-250-060-00-200-R
2.5 65 0 Round 20 167.5 19 162.5 34 40.0 8.0 133.0 GM-ST-250-065-00-200-R
2.5 70 0 Round 20 180.0 19 175.0 34 40.0 8.0 148.0 GM-ST-250-070-00-200-R
2.5 75 0 Round 20 192.5 19 187.5 34 40.0 8.0 163.0 GM-ST-250-075-00-200-R
2.5 80 0 Round 20 205.0 19 200.0 34 40.0 8.0 178.0 GM-ST-250-080-00-200-R
2.5 85 0 Round 20 217.5 19 212.5 34 40.0 8.0 178.0 GM-ST-250-085-00-200-R
2.5 90 0 Round 20 230.0 19 225.0 34 40.0 8.0 193.0 GM-ST-250-090-00-200-R
2.5 95 0 Round 20 242.5 19 237.5 34 40.0 8.0 208.0 GM-ST-250-095-00-200-R
3.0 12 0 Round 12 42.0 19 36.0 34 24.0 19.0 – GM-ST-300-012-00-120-R
3.0 13 0 Round 12 45.0 19 39.0 34 24.0 19.0 – GM-ST-300-013-00-120-R

iguform S270 and igutek P360 are available in over 300 variants and customisable according to your requirements ASEAN 09/2023 ASEAN 09/2023 Dimension description see page 801

812 Online tools and more information u www.igus-asean.com/gears 3D CAD data, prices and delivery times online u www.igus-asean.com/gear-shop 813
