iglidur iglidur gears | Product range iglidur
®
®
gears gears

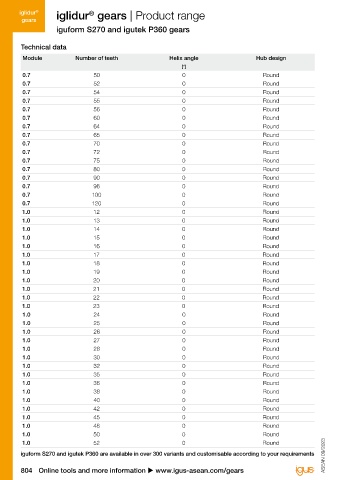

iguform S270 and igutek P360 gears
Technical data Dimensions [mm]

Module Number of teeth Helix angle Hub design d1 d5 b2 d4 b1 d2 b3 d3 Part No.
[°] H10
0.7 50 0 Round 8 36.4 6 35.0 15 18.0 2.0 27.5 GM-ST-070-050-00-080-R
0.7 52 0 Round 8 37.8 6 36.4 15 18.0 2.0 27.5 GM-ST-070-052-00-080-R
0.7 54 0 Round 8 39.2 6 37.8 15 18.0 2.0 27.5 GM-ST-070-054-00-080-R
0.7 55 0 Round 8 39.9 6 38.5 15 18.0 2.0 30.0 GM-ST-070-055-00-080-R
0.7 56 0 Round 8 40.6 6 39.2 15 18.0 2.0 30.0 GM-ST-070-056-00-080-R
0.7 60 0 Round 8 43.4 6 42.0 15 18.0 2.0 30.0 GM-ST-070-060-00-080-R
0.7 64 0 Round 8 46.2 6 44.8 15 18.0 2.0 37.0 GM-ST-070-064-00-080-R
0.7 65 0 Round 8 46.9 6 45.5 15 18.0 2.0 37.0 GM-ST-070-065-00-080-R
0.7 70 0 Round 8 50.4 6 49.0 15 18.0 2.0 37.0 GM-ST-070-070-00-080-R
0.7 72 0 Round 8 51.8 6 50.4 15 18.0 2.0 37.0 GM-ST-070-072-00-080-R
0.7 75 0 Round 10 53.9 6 52.5 15 18.0 2.0 37.0 GM-ST-070-075-00-100-R
0.7 80 0 Round 10 57.4 6 56.0 15 21.0 2.0 46.5 GM-ST-070-080-00-100-R
0.7 90 0 Round 10 64.4 6 63.0 15 21.0 2.0 57.0 GM-ST-070-090-00-100-R
0.7 96 0 Round 10 68.6 6 67.2 15 21.0 2.0 57.0 GM-ST-070-096-00-100-R
0.7 100 0 Round 10 71.4 6 70.0 15 21.0 2.0 57.0 GM-ST-070-100-00-100-R
0.7 120 0 Round 10 85.4 6 84.0 15 21.0 2.0 77.0 GM-ST-070-120-00-100-R
1.0 12 0 Round 4 14.0 9 12.0 17 9.0 9.0 – GM-ST-100-012-00-040-R
1.0 13 0 Round 4 15.0 9 13.0 17 9.0 9.0 – GM-ST-100-013-00-040-R
1.0 14 0 Round 4 16.0 9 14.0 17 9.0 9.0 – GM-ST-100-014-00-040-R
1.0 15 0 Round 4 17.0 9 15.0 17 9.0 9.0 – GM-ST-100-015-00-040-R
1.0 16 0 Round 4 18.0 9 16.0 17 9.0 9.0 – GM-ST-100-016-00-040-R
1.0 17 0 Round 4 19.0 9 17.0 17 9.0 6.0 12.0 GM-ST-100-017-00-040-R
1.0 18 0 Round 4 20.0 9 18.0 17 9.0 6.0 13.0 GM-ST-100-018-00-040-R
1.0 19 0 Round 4 21.0 9 19.0 17 9.0 6.0 13.0 GM-ST-100-019-00-040-R
1.0 20 0 Round 4 22.0 9 20.0 17 9.0 6.0 13.0 GM-ST-100-020-00-040-R
1.0 21 0 Round 5 23.0 9 21.0 17 12.0 6.0 16.0 GM-ST-100-021-00-050-R
1.0 22 0 Round 5 24.0 9 22.0 17 12.0 6.0 16.0 GM-ST-100-022-00-050-R
1.0 23 0 Round 5 25.0 9 23.0 17 12.0 6.0 16.0 GM-ST-100-023-00-050-R
1.0 24 0 Round 6 26.0 9 24.0 18 15.0 6.0 18.5 GM-ST-100-024-00-060-R
1.0 25 0 Round 6 27.0 9 25.0 18 15.0 6.0 18.5 GM-ST-100-025-00-060-R
1.0 26 0 Round 6 28.0 9 26.0 18 15.0 6.0 18.5 GM-ST-100-026-00-060-R
1.0 27 0 Round 6 29.0 9 27.0 18 15.0 6.0 18.5 GM-ST-100-027-00-060-R
1.0 28 0 Round 6 30.0 9 28.0 18 15.0 6.0 21.0 GM-ST-100-028-00-060-R
1.0 30 0 Round 6 32.0 9 30.0 18 15.0 6.0 21.0 GM-ST-100-030-00-060-R
1.0 32 0 Round 6 34.0 9 32.0 18 18.0 4.6 23.5 GM-ST-100-032-00-060-R
1.0 35 0 Round 8 37.0 9 35.0 18 18.0 4.6 23.5 GM-ST-100-035-00-080-R
1.0 36 0 Round 8 38.0 9 36.0 18 18.0 4.6 27.0 GM-ST-100-036-00-080-R
1.0 38 0 Round 8 40.0 9 38.0 18 18.0 4.6 27.0 GM-ST-100-038-00-080-R
1.0 40 0 Round 8 42.0 9 40.0 18 18.0 4.6 27.0 GM-ST-100-040-00-080-R
1.0 42 0 Round 8 44.0 9 42.0 18 18.0 4.6 27.0 GM-ST-100-042-00-080-R
1.0 45 0 Round 8 47.0 9 45.0 18 18.0 4.6 36.5 GM-ST-100-045-00-080-R
1.0 48 0 Round 8 50.0 9 48.0 18 18.0 4.6 36.5 GM-ST-100-048-00-080-R
1.0 50 0 Round 8 52.0 9 50.0 18 18.0 4.6 36.5 GM-ST-100-050-00-080-R
1.0 52 0 Round 8 54.0 9 52.0 18 21.0 4.6 46.0 GM-ST-100-052-00-080-R

iguform S270 and igutek P360 are available in over 300 variants and customisable according to your requirements ASEAN 09/2023 ASEAN 09/2023 Dimension description see page 801

804 Online tools and more information u www.igus-asean.com/gears 3D CAD data, prices and delivery times online u www.igus-asean.com/gear-shop 805
