iglidur iglidur gears | Product range iglidur
®
®
gears gears
iguform S270 and igutek P360 gears

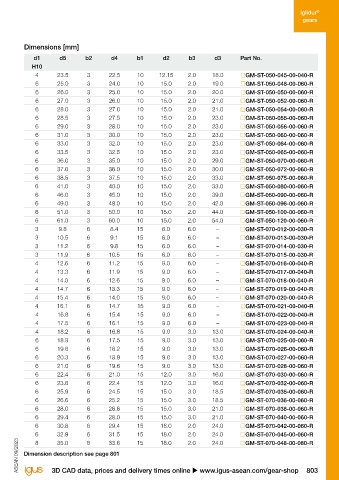

Technical data Dimensions [mm]

Module Number of teeth Helix angle Hub design d1 d5 b2 d4 b1 d2 b3 d3 Part No.
[°] H10
0.5 45 0 Round 4 23.5 3 22.5 10 12.15 2.0 18.0 GM-ST-050-045-00-040-R
0.5 48 0 Round 6 25.0 3 24.0 10 15.0 2.0 19.0 GM-ST-050-048-00-060-R
0.5 50 0 Round 6 26.0 3 25.0 10 15.0 2.0 20.0 GM-ST-050-050-00-060-R
0.5 52 0 Round 6 27.0 3 26.0 10 15.0 2.0 21.0 GM-ST-050-052-00-060-R
0.5 54 0 Round 6 28.0 3 27.0 10 15.0 2.0 21.0 GM-ST-050-054-00-060-R
0.5 55 0 Round 6 28.5 3 27.5 10 15.0 2.0 23.0 GM-ST-050-055-00-060-R
0.5 56 0 Round 6 29.0 3 28.0 10 15.0 2.0 23.0 GM-ST-050-056-00-060-R
0.5 60 0 Round 6 31.0 3 30.0 10 15.0 2.0 23.0 GM-ST-050-060-00-060-R
0.5 64 0 Round 6 33.0 3 32.0 10 15.0 2.0 23.0 GM-ST-050-064-00-060-R
0.5 65 0 Round 6 33.5 3 32.5 10 15.0 2.0 23.0 GM-ST-050-065-00-060-R
0.5 70 0 Round 6 36.0 3 35.0 10 15.0 2.0 29.0 GM-ST-050-070-00-060-R
0.5 72 0 Round 6 37.0 3 36.0 10 15.0 2.0 30.0 GM-ST-050-072-00-060-R
0.5 75 0 Round 6 38.5 3 37.5 10 15.0 2.0 33.0 GM-ST-050-075-00-060-R
0.5 80 0 Round 6 41.0 3 40.0 10 15.0 2.0 33.0 GM-ST-050-080-00-060-R
0.5 90 0 Round 6 46.0 3 45.0 10 15.0 2.0 39.0 GM-ST-050-090-00-060-R
0.5 96 0 Round 6 49.0 3 48.0 10 15.0 2.0 42.0 GM-ST-050-096-00-060-R
0.5 100 0 Round 6 51.0 3 50.0 10 15.0 2.0 44.0 GM-ST-050-100-00-060-R
0.5 120 0 Round 6 61.0 3 60.0 10 15.0 2.0 54.0 GM-ST-050-120-00-060-R
0.7 12 0 Round 3 9.8 6 8.4 15 6.0 6.0 – GM-ST-070-012-00-030-R
0.7 13 0 Round 3 10.5 6 9.1 15 6.0 6.0 – GM-ST-070-013-00-030-R
0.7 14 0 Round 3 11.2 6 9.8 15 6.0 6.0 – GM-ST-070-014-00-030-R
0.7 15 0 Round 3 11.9 6 10.5 15 6.0 6.0 – GM-ST-070-015-00-030-R
0.7 16 0 Round 4 12.6 6 11.2 15 9.0 6.0 – GM-ST-070-016-00-040-R
0.7 17 0 Round 4 13.3 6 11.9 15 9.0 6.0 – GM-ST-070-017-00-040-R
0.7 18 0 Round 4 14.0 6 12.6 15 9.0 6.0 – GM-ST-070-018-00-040-R
0.7 19 0 Round 4 14.7 6 13.3 15 9.0 6.0 – GM-ST-070-019-00-040-R
0.7 20 0 Round 4 15.4 6 14.0 15 9.0 6.0 – GM-ST-070-020-00-040-R
0.7 21 0 Round 4 16.1 6 14.7 15 9.0 6.0 – GM-ST-070-021-00-040-R
0.7 22 0 Round 4 16.8 6 15.4 15 9.0 6.0 – GM-ST-070-022-00-040-R
0.7 23 0 Round 4 17.5 6 16.1 15 9.0 6.0 – GM-ST-070-023-00-040-R
0.7 24 0 Round 4 18.2 6 16.8 15 9.0 3.0 13.0 GM-ST-070-024-00-040-R
0.7 25 0 Round 6 18.9 6 17.5 15 9.0 3.0 13.0 GM-ST-070-025-00-060-R
0.7 26 0 Round 6 19.6 6 18.2 15 9.0 3.0 13.0 GM-ST-070-026-00-060-R
0.7 27 0 Round 6 20.3 6 18.9 15 9.0 3.0 13.0 GM-ST-070-027-00-060-R
0.7 28 0 Round 6 21.0 6 19.6 15 9.0 3.0 13.0 GM-ST-070-028-00-060-R
0.7 30 0 Round 6 22.4 6 21.0 15 12.0 3.0 16.0 GM-ST-070-030-00-060-R
0.7 32 0 Round 6 23.8 6 22.4 15 12.0 3.0 16.0 GM-ST-070-032-00-060-R
0.7 35 0 Round 6 25.9 6 24.5 15 15.0 3.0 18.5 GM-ST-070-035-00-060-R
0.7 36 0 Round 6 26.6 6 25.2 15 15.0 3.0 18.5 GM-ST-070-036-00-060-R
0.7 38 0 Round 6 28.0 6 26.6 15 15.0 3.0 21.0 GM-ST-070-038-00-060-R
0.7 40 0 Round 6 29.4 6 28.0 15 15.0 3.0 21.0 GM-ST-070-040-00-060-R
0.7 42 0 Round 6 30.8 6 29.4 15 18.0 2.0 24.0 GM-ST-070-042-00-060-R
0.7 45 0 Round 6 32.9 6 31.5 15 18.0 2.0 24.0 GM-ST-070-045-00-060-R
0.7 48 0 Round 8 35.0 6 33.6 15 18.0 2.0 24.0 GM-ST-070-048-00-080-R

iguform S270 and igutek P360 are available in over 300 variants and customisable according to your requirements ASEAN 09/2023 ASEAN 09/2023 Dimension description see page 801

802 Online tools and more information u www.igus-asean.com/gears 3D CAD data, prices and delivery times online u www.igus-asean.com/gear-shop 803
