iglidur iglidur
®
®
®
®
®
®
tribo iglidur tribofilament | Product range New iglidur tribofilament | Product range New tribo
3D printing 3D printing
Order key Order key

tribofilament ® Diameter Weight tribofilament ® Diameter Weight

iglidur ® material tribofilament ® Ø [mm · 100] Spool weight [g] iglidur ® material tribofilament ® Ø [mm · 100] Spool weight [g]

®
®
iglidur i190 igumid P190

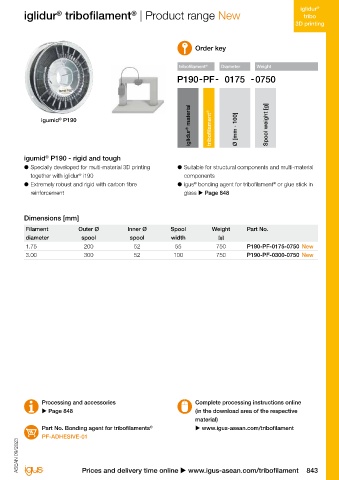

iglidur i190 - strong and abrasion-resistant igumid P190 - rigid and tough
®
®
● Flexural strength 80MPa, the best iglidur ● Can be processed by commercially available 3D printers ● Specially developed for multi-material 3D printing ● Suitable for structural components and multi-material
®
tribofilament for regular 3D printers ● Max. application temperature: +90°C together with iglidur i190 components
®
®
®
®
®
● Excellent service life - 50 times higher abrasion ● igus bonding agent for tribofilament or glue stick in ● Extremely robust and rigid with carbon fibre ● igus bonding agent for tribofilament or glue stick in
®
resistance than ABS glass u Page 848 reinforcement glass u Page 848
Dimensions [mm] Dimensions [mm]
Filament Outer Ø Inner Ø Spool Weight Part No. Filament Outer Ø Inner Ø Spool Weight Part No.
diameter spool spool width [g] diameter spool spool width [g]
1.75 200 52 55 750 I190-PF-0175-0750 New 1.75 200 52 55 750 P190-PF-0175-0750 New
3.00 200 52 55 750 I190-PF-0300-0750 New 3.00 300 52 100 750 P190-PF-0300-0750 New

Material properties

General properties Unit iglidur ® igumid ®
i190 P190
Density g/cm 3 1.30 1.25
Colour beige black
Max. moisture absorption at +23°C and 50% r.h. % weight 1.4 1.4
Max. moisture absorption % weight 6.0 3.7
Mechanical properties
Flexural modulus MPa 2,400 6.34/11.55/2.86GPa 130)
Flexural strength at +20°C MPa 75 130) 163/237/70 189)
Shore D hardness 71 83
Physical and thermal properties
Max. long-term application temperature °C +90 +120
Max. short-term application temperature °C +120 +140
Min. application temperature °C -40 -40
Electrical properties Processing and accessories Complete processing instructions online
Specific transitional resistance Ωcm > 10 12 > 10 10 u Page 848 (in the download area of the respective
Surface resistance Ω > 10 11 > 10 10 material)
Part No. Bonding agent for tribofilaments ® u www.igus-asean.com/tribofilament
130) Printed flat/upright
189) Printed flat, printing lines aligned 45°/-45°; printing lines aligned according to optimum strength/printed PF-ADHESIVE-01
upright ASEAN 09/2023 ASEAN 09/2023

842 Online tools and more information u www.igus-asean.com/idd Prices and delivery time online u www.igus-asean.com/tribofilament 843
