iglidur iglidur
®
®
®
®
®
®
tribo iglidur tribofilament | Product range iglidur tribofilament | Product range tribo
3D printing 3D printing
Order key Order key

tribofilament ® Diameter Weight tribofilament ® Diameter Weight

iglidur ® material tribofilament ® Ø [mm · 100] Spool weight [g] iglidur i180 iglidur ® material tribofilament ® Ø [mm · 100] Spool weight [g]
iglidur i150
®
®

iglidur i150 - makes printing even easier
®
®
● High abrasion resistance at low speeds ● Recommended printing surface: igus adhesive film or
● Good mechanical properties glue-stick on glass
®
● The tribofilament that is easiest to process ● Also to be processed without a heated print bed
®
● Compliant with food requirements according to (EU) (prerequisite: igus adhesive film u Page 848 ) iglidur i180-BL
®
No 10/2011
Dimensions [mm]
®
®

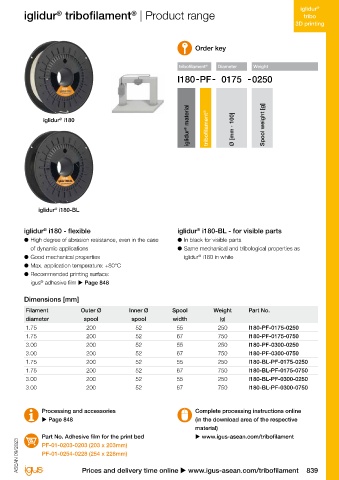

iglidur i180 - flexible iglidur i180-BL - for visible parts
Filament Outer Ø Inner Ø Spool Weight Part No. ● High degree of abrasion resistance, even in the case ● In black for visible parts
diameter spool spool width [g] of dynamic applications ● Same mechanical and tribological properties as
1.75 200 52 55 750 I150-PF-0175-0750 ● Good mechanical properties iglidur i180 in white
®
1.75 335 51 220 8,000 I150-PF-0175-8000 New ● Max. application temperature: +80°C
3.00 200 52 55 750 I150-PF-0300-0750 ● Recommended printing surface:
3.00 335 51 220 8,000 I150-PF-0300-8000 New igus adhesive film u Page 848
®
Material properties
Dimensions [mm]
General properties Unit iglidur ® iglidur ® iglidur ®
i150 i180 i180-BL Filament Outer Ø Inner Ø Spool Weight Part No.
Density g/cm 3 1.30 1.21 1.21 diameter spool spool width [g]
Colour white white black 1.75 200 52 55 250 I180-PF-0175-0250
Max. moisture absorption at +23°C and 50% r.h. % weight 0.3 0.3 0.3 1.75 200 52 67 750 I180-PF-0175-0750
Max. moisture absorption % weight 0.7 0.9 0.9 3.00 200 52 55 250 I180-PF-0300-0250
Mechanical properties 3.00 200 52 67 750 I180-PF-0300-0750
Flexural modulus MPa 1,700 1,700 1,700 1.75 200 52 55 250 I180-BL-PF-0175-0250
Flexural strength at +20°C MPa 54/37 130) 46/33 130) 46/33 130) 1.75 200 52 67 750 I180-BL-PF-0175-0750
Shore D hardness 62 66 66 3.00 200 52 55 250 I180-BL-PF-0300-0250
Physical and thermal properties 3.00 200 52 67 750 I180-BL-PF-0300-0750
Max. long-term application temperature °C +65 +80 +80
Max. short-term application temperature °C +75 +90 +90 Processing and accessories Complete processing instructions online
Min. application temperature °C -30 -40 -40 u Page 848 (in the download area of the respective
Electrical properties material)
Specific transitional resistance Ωcm > 10 13 > 10 12 > 10 12 Part No. Adhesive film for the print bed u www.igus-asean.com/tribofilament
Surface resistance Ω > 10 12 > 10 11 > 10 11 PF-01-0203-0203 (203 x 203mm)

130) Printed flat/upright ASEAN 09/2023 ASEAN 09/2023 PF-01-0254-0228 (254 x 228mm)

838 Online tools and more information u www.igus-asean.com/idd Prices and delivery time online u www.igus-asean.com/tribofilament 839
