iglidur iglidur
®
®
®
®
tribo iglidur SLS | Laser sintering New iglidur triboresin | Product range New tribo
3D printing 3D printing

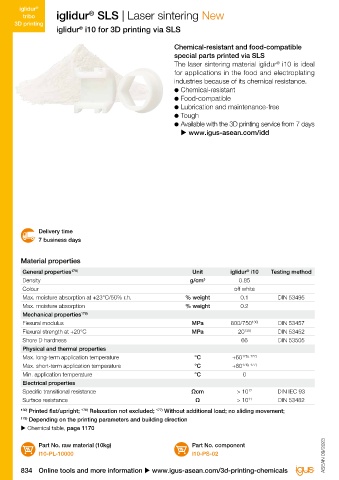

iglidur i10 for 3D printing via SLS iglidur i3000-PR for DLP and LCD printers
®
®
First 3D printing resin for wear-resistant
Chemical-resistant and food-compatible
special parts printed via SLS parts and gears ®
The laser sintering material iglidur i10 is ideal The DLP 3D printing resin iglidur i3000 is suitable for
®
for applications in the food and electroplating DLP and LCD printers and was specifically developed for
industries because of its chemical resistance. printing gears and wear-resistant parts. With a service
life of at least 30 to 60 times longer than conventional 3D
● Chemical-resistant printing resins, iglidur i3000 is suitable for all types of
®
● Food-compatible applications. The high resolution of up to 35μm enables
● Lubrication and maintenance-free the print of very delicate components with the finest details.
● Tough The mechanical properties are largely isotropic due to the
● Available with the 3D printing service from 7 days photopolymerisation process. Start of the beta test phase:
u www.igus-asean.com/idd
please contact igus if you would like to test individual wear-
®
5
resistant parts made from iglidur i3000.
®
Self-lubricating and low maintenance
●
4
Wear rate [µm/1,000 cycles] 3 2 1 ● Inner channels possible
Fine details, 35µm and 43µm resolution
●
Fine tooth module of 0.2 possible
●
Available with the 3D printing service from 5 days
●
u www.igus-asean.com/3d-printing-request
0
iglidur iglidur iglidur DLP material Processing instructions:
®
®
®
i3 i150 i3000 A B C Since skin contact with the liquid resin must be avoided,
Delivery time (SLS) (FDM) (DLP) personal protective equipment is absolutely necessary
7 business days Wear in µm/1,000 cycles p = 0.42N/mm ; during processing.
2
v = 0.32m/s
Material properties Material properties

General properties 178) Unit iglidur i10 Testing method General properties Unit iglidur i3000
®
®
Density g/cm 3 0.85 Density g/cm 3 1.3
Colour off white Colour grey
Max. moisture absorption at +23°C/50% r.h. % weight 0.1 DIN 53495 Max. moisture absorption at +23°C and 50% r.h. % weight 1.8
Max. moisture absorption % weight 0.2 Max. moisture absorption % weight 3.2
Mechanical properties 178) Mechanical properties
Flexural modulus MPa 800/750 130) DIN 53457 Flexural modulus MPa 2,610
Flexural strength at +20°C MPa 20 130) DIN 53452 Flexural strength at +20°C MPa 90
Shore D hardness 66 DIN 53505 Shore D hardness 78
Physical and thermal properties Physical and thermal properties
Max. long-term application temperature °C +60 176), 177) Max. long-term application temperature °C +80
Max. short-term application temperature °C +80 176), 177) Max. short-term application temperature °C +100
Min. application temperature °C 0 Min. application temperature °C -20
Electrical properties Electrical properties
Specific transitional resistance Ωcm > 10 12 DIN IEC 93 Specific transitional resistance Ωcm > 10 12
Surface resistance Ω > 10 11 DIN 53482 Surface resistance Ω > 10 11
130) Printed flat/upright; 176) Relaxation not excluded; 177) Without additional load; no sliding movement; 130) Printed flat/upright
178) Depending on the printing parameters and building direction
u Chemical table, page 1170

Part No. raw material (10kg) Part No. component Part No. raw material (1kg) Part No. component
I10-PL-10000 I10-PS-02 ASEAN 09/2023 ASEAN 09/2023 For parts with the finest details I3000-PR-1000 I3000-PS-06

834 Online tools and more information u www.igus-asean.com/3d-printing-chemicals More information u www.igus-asean.com/dlp 835
