iglidur iglidur
®
®
®
®
tribo iglidur SLS | Laser sintering iglidur SLS | Laser sintering tribo
3D printing 3D printing

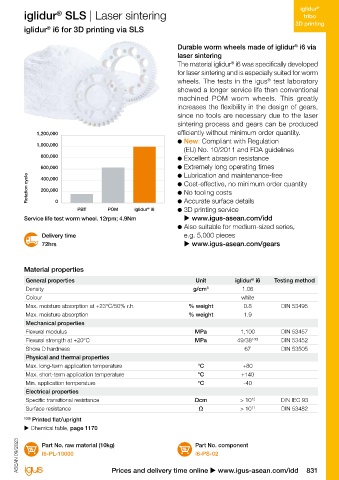

iglidur i3 for 3D printing via SLS iglidur i6 for 3D printing via SLS
®
®
At least 3 times more wear-resistant: Durable worm wheels made of iglidur i6 via
®
iglidur i3 for 3D printing via SLS laser sintering
®
The material iglidur i3, which was specially The material iglidur i6 was specifically developed
®
®
developed for laser sintering, showed a 3 to 30 for laser sintering and is especially suited for worm
times better abrasion resistance than conventional wheels. The tests in the igus test laboratory
®
materials in the igus test lab. This further increases showed a longer service life than conventional
®
design freedom of sliding components prone to machined POM worm wheels. This greatly
wear. iglidur i3 is also suitable for regular gears increases the flexibility in the design of gears,
®
such as spur gears, bevel gears, and planetary since no tools are necessary due to the laser
25
gears. sintering process and gears can be produced
20 ● Lubrication and maintenance-free 1,200,000 efficiently without minimum order quantity.
● Wear-resistant ● New: Compliant with Regulation
15 ● Good mechanical properties 1,000,000 ● Excellent abrasion resistance
(EU) No. 10/2011 and FDA guidelines
Wear rate [µm/km] 10 5 ● Can be processed using the standard 600,000 ● Extremely long operating times
800,000
Accurate surface details
●
Lubrication and maintenance-free
parameter set
●
400,000
●
0
No tooling costs
Automotive-compliant according to
●
● Refresh rate: 75% Rotation cycle 200,000 ● Cost-effective, no minimum order quantity
PA12 PA12 iglidur i3
®
+glass balls FMV SS 302 0 ● Accurate surface details
®
®
Cf53 304 stainless steel ● Most-popular igus 3D-printing material PBT POM iglidur i6 ● 3D printing service
Wear, rotating p = 1MPa; v = 0.3m/s (more than 100,000 parts per year) Service life test worm wheel. 12rpm; 4.9Nm u www.igus-asean.com/idd
● 3D printing service ● Also suitable for medium-sized series,
Delivery time u www.igus-asean.com/idd Delivery time e.g. 5,000 pieces
72hrs ● Gear service life calculation 72hrs u www.igus-asean.com/gears
u www.igus-asean.com/gear-expert
Material properties Material properties
®
General properties Unit iglidur i3 Testing method General properties Unit iglidur i6 Testing method
®
Density g/cm 3 1.05 Density g/cm 3 1.06
Colour yellow Colour white
Max. moisture absorption at +23°C/50% r.h. % weight 0.8 DIN 53495 Max. moisture absorption at +23°C/50% r.h. % weight 0.8 DIN 53495
Max. moisture absorption % weight 1.9 Max. moisture absorption % weight 1.9
Mechanical properties Mechanical properties
Flexural modulus MPa 1,400 DIN 53457 Flexural modulus MPa 1,100 DIN 53457
Flexural strength at +20°C MPa 68/61 130) DIN 53452 Flexural strength at +20°C MPa 49/38 130) DIN 53452
Shore D hardness 70 DIN 53505 Shore D hardness 67 DIN 53505
Physical and thermal properties Physical and thermal properties
Max. long-term application temperature °C +80 Max. long-term application temperature °C +80
Max. short-term application temperature °C +140 Max. short-term application temperature °C +140
Min. application temperature °C -40 Min. application temperature °C -40
Electrical properties Electrical properties
Specific transitional resistance Ωcm > 10 12 DIN IEC 93 Specific transitional resistance Ωcm > 10 12 DIN IEC 93
Surface resistance Ω > 10 11 DIN 53482 Surface resistance Ω > 10 11 DIN 53482
130) Printed flat/upright 130) Printed flat/upright
u Chemical table, page 1170 u Chemical table, page 1170

Part No. raw material (10kg) Part No. component Part No. raw material (10kg) Part No. component
I3-PL-10000 I3-PS-02 ASEAN 09/2023 ASEAN 09/2023 I6-PL-10000 I6-PS-02

830 Online tools and more information u www.igus-asean.com/idd Prices and delivery time online u www.igus-asean.com/idd 831
