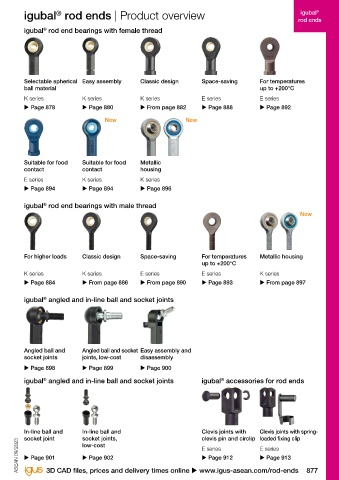

igubal igubal rod ends | Technical data igubal rod ends | Product overview igubal
®
®
rod ends rod ends
igubal rod end bearings with female thread
®
Benefits Coefficient of sliding friction and speed
● Maintenance-free dry operation Shaft rotation takes place directly within the spherical ball
®
● High rigidity made of iglidur W300. The advantage therefore lies in the
● Very high durability under alternating loads plastic vs. steel relationship. Polymer produces lower friction
● Compensation of misalignment errors and permits high speeds, even in dry operation. Taking the Selectable spherical Easy assembly Classic design Space-saving For temperatures
● Compensation of edge loads radial loads into account, maximum surface speeds up to ball material up to +200°C
● Resistant to dirt, dust and lint 0.5m/s rotating can be attained. K series K series K series E series E series
®
● Resistant to corrosion and chemicals The maintenance-free igubal rod end bearings permit linear u Page 878 u Page 880 u From page 882 u Page 888 u Page 892
● Vibration-dampening and oscillating movements of the shaft.
● Suitable for rotating, oscillating and linear movements New New
● Lightweight
● Dimensional K and E series, according to standard Temperatures
DIN ISO 12240 The igubal rod ends can be used in temperatures from
®
®
● Available with stainless steel sleeve for higher -30°C up to +80°C. The igubal rod ends made from
tightening torque HT material are suitable for temperatures up to +200°C Suitable for food Suitable for food Metallic
(E series, female and male threads). contact contact housing
E series K series K series
Product range u Page 894 u Page 894 u Page 896
igubal rod ends are available in the dimensional K and Tolerances
®
E series for shaft diameters of 2 to 30mm according to igubal rod ends can be used with different tolerances igubal rod end bearings with male thread
®
®
standard DIN ISO 12240 according to each application. They are designed with New
a large bearing clearance in the standard product range,
● Form A - with male thread and which enables a secure operation even under high
● Form B - with female thread peripheral speeds. The hole of the spherical ball is produced
to a standard tolerance range E10. The shaft tolerance
should be manufactured between h6 and h9. All values For higher loads Classic design Space-saving For temperatures Metallic housing
Stainless steel sleeve and tolerances according to ISO 2768-m. Please contact up to +200°C
The dimensional K and partially E series are available in us in case you require lower or other bearing tolerances. K series K series E series E series K series
imperial dimensions, as well as a special version containing u Page 884 u From page 886 u From page 890 u Page 893 u From page 897
a stainless steel sleeve in the spherical ball. This allows a
significantly higher tightening torque than for the standard pivot angle igubal angled and in-line ball and socket joints
®
polymer race. Please contact us if you need other dimen-
sions.

α
Loads
igubal rod ends handle high loads at ambient temperatures, Angled ball and Angled ball and socket Easy assembly and
®
have excellent dampening properties and weigh only a fifth of socket joints joints, low-cost disassembly
traditional metallic bearing housings. In applications with high u Page 898 u Page 899 u Page 900
continuous loads and high temperatures, the load capacity igubal angled and in-line ball and socket joints igubal accessories for rod ends
®
®
of igubal rod ends should be tested in an experiment that
®
simulates the application.
u www.igus-asean.com/igubal-finder

In-line ball and In-line ball and Clevis joints with Clevis joints with spring-
socket joint socket joints, clevis pin and circlip loaded fixing clip
ASEAN 09/2023 ASEAN 09/2023 u Page 901 u Page 902 E series E series
low-cost

u Page 913
u Page 912
876 Online tools and more information u www.igus-asean.com/rod-ends 3D CAD files, prices and delivery times online u www.igus-asean.com/rod-ends 877
