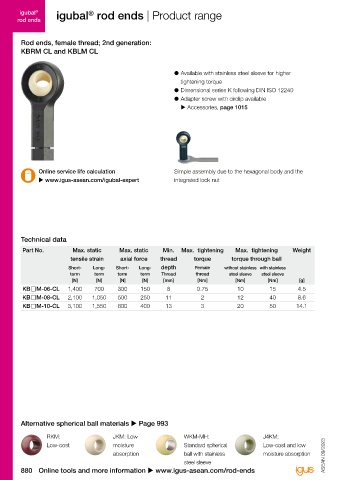

Page 882 - IGUS Bearing

®
®
igubal igubal rod ends | Product range igubal rod ends | Product range igubal
®
®
rod ends rod ends
Rod ends, female thread; 2nd generation: Rod ends, female thread; 2nd generation:
KBRM CL and KBLM CL KBRM CL and KBLM CL Order key

d2 B Type Size Version
● Available with stainless steel sleeve for higher C1
tightening torque
● Dimensional series K following DIN ISO 12240
● Adapter screw with circlip available d1
u Accessories, page 1015
h3
l2
h1 h2 Housing (female thread)

l1 Inner Ø [mm] 2nd generation
K series Thread Metric
m
d3
Online service life calculation Simple assembly due to the hexagonal body and the W Options:
u www.igus-asean.com/igubal-expert integrated lock nut Thread Spherical ball material
L : Left-hand thread Blank : iglidur W300
®
R : Right-hand thread R : iglidur R
®
®
Material: Add-on: J : iglidur J
®
Housing: igumid G u Page 1190 MH : With stainless steel J4 : iglidur J4
®
®
Spherical ball: iglidur W300 u Page 175 sleeve
Technical data Dimensions [mm]
Part No. Max. static Max. static Min. Max. tightening Max. tightening Weight Part No. d1 d2 d3 W B C1 h3 h1 h2 l1 l2 m Max.
tensile strain axial force thread torque torque through ball E10 without with pivot
stainless stainless
Short- Long- Short- Long- depth Female without stainless with stainless steel sleeve steel sleeve angle
term term term term Thread thread steel sleeve steel sleeve +0.2
[N] [N] [N] [N] [mm] [Nm] [Nm] [Nm] [g]
KB M-06-CL 1,400 700 300 150 8 0.75 10 15 4.5 KB M-06-CL 6 20 M6 SW10 9 9.2 7 40 36.5 30 20 46.5 5.7 40°
KB M-08-CL 2,100 1,050 500 250 11 2 12 40 8.6 KB M-08-CL 8 24 M8 SW13 12 12.2 9 48 44.3 36 25 56.3 7.5 35°
KB M-10-CL 3,100 1,550 800 400 13 3 20 50 14.1 KB M-10-CL 10 30 M10 SW15 14 14.2 10.5 58 52.2 43 30 67.2 8.4 35°
Rod ends can be ordered in metric dimensions with stainless steel sleeve with the addition of MH after the part numbers
listed here. Example: KBRM-10-CL-MH (Inner Ø: 10mm).
For another spherical bearing material than iglidur W300, please add "J" to the part number. Example: KBRM -10-CL-J .
®

Alternative spherical ball materials u Page 993

RKM: JKM: Low WKM-MH: J4KM:
Low-cost moisture Standard spherical Low-cost and low
absorption ball with stainless moisture absorption ASEAN 09/2023 ASEAN 09/2023
steel sleeve
880 Online tools and more information u www.igus-asean.com/rod-ends 3D CAD files, prices and delivery times online u www.igus-asean.com/rod-ends 881
