igubal igubal rod ends | Product range igubal rod ends | Product range igubal
®
®
rod ends rod ends

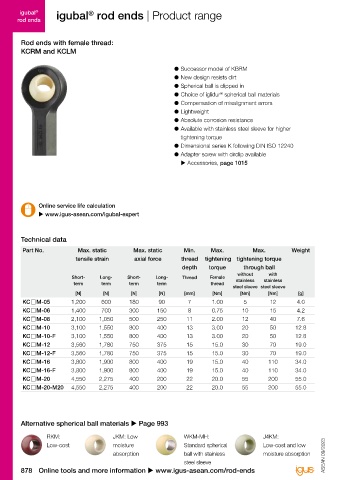

Rod ends with female thread: Rod ends with female thread:
KCRM and KCLM KCRM and KCLM Order key

B
● Successor model of KBRM d2 C1 Type Size Options
● New design resists dirt
● Spherical ball is clipped in
®
● Choice of iglidur spherical ball materials
● Compensation of misalignment errors d1
● Lightweight
● Absolute corrosion resistance l2
● Available with stainless steel sleeve for higher h1 Housing (female thread)
tightening torque
● Dimensional series K following DIN ISO 12240 l1 K series Thread Inner Ø [mm]
● Adapter screw with circlip available Metric
u Accessories, page 1015
d3
Options:
W Thread Spherical ball material
L : Left-hand thread Blank : iglidur W300
®
R : Right-hand thread R : iglidur R
®
®
Online service life calculation Material: Add-on: J : iglidur J
®
®
u www.igus-asean.com/igubal-expert Housing: igumid G u Page 1190 MH : With stainless steel J4 : iglidur J4
®
Spherical ball: iglidur W300 u Page 175 sleeve EK : Stainless steel (AISI 303)
Technical data Dimensions [mm]
Part No. Max. static Max. static Min. Max. Max. Weight Part No. d1 d2 d3 W B C1 h1 l1 l2 Max.
tensile strain axial force thread tightening tightening torque E10 without with pivot
stainless stainless
depth torque through ball steel sleeve steel sleeve angle
without with
Short- Long- Short- Long- Thread Female +0.2
term term term term thread stainless stainless KC M-05 5 18 M5 SW9 8 8.2 6.0 27 12.0 36 43°
steel sleeve steel sleeve
[N] [N] [N] [N] [mm] [Nm] [Nm] [Nm] [g] KC M-06 6 20 M6 SW10 9 9.2 7.0 30 13.5 40 40°
KC M-05 1,200 600 180 90 7 1.00 5 12 4.0 KC M-08 8 24 M8 SW13 12 12.2 9.0 36 17.0 48 35°
KC M-06 1,400 700 300 150 8 0.75 10 15 4.2 KC M-10 10 30 M10 SW15 14 14.2 10.5 43 22.0 58 35°
KC M-08 2,100 1,050 500 250 11 2.00 12 40 7.6 KC M-10-F 10 30 M10 x 1.25 SW15 14 14.2 10.5 43 22.0 58 35°
KC M-10 3,100 1,550 800 400 13 3.00 20 50 12.8 KC M-12 12 34 M12 SW17 16 16.2 12.0 50 25.0 67 35°
KC M-10-F 3,100 1,550 800 400 13 3.00 20 50 12.8 KC M-12-F 12 34 M12 x 1.25 SW17 16 16.2 12.0 50 25.0 67 35°
KC M-12 3,560 1,780 750 375 15 15.0 30 70 19.0 KC M-16 16 42 M16 SW20 21 21.2 15.0 64 30.0 85 35°
KC M-12-F 3,560 1,780 750 375 15 15.0 30 70 19.0 KC M-16-F 16 42 M16 x 1.5 SW20 21 21.2 15.0 64 30.0 85 35°
KC M-16 3,800 1,900 800 400 19 15.0 40 110 34.0 KC M-20 20 50 M20 x 1.5 SW24 25 25.2 18.0 77 35.0 102 35°
KC M-16-F 3,800 1,900 800 400 19 15.0 40 110 34.0 KC M-20-M20 20 50 M20 x 2.5 SW24 25 25.2 18.0 77 35.0 102 35°
KC M-20 4,550 2,275 400 200 22 20.0 55 200 55.0 Rod ends can be ordered in metric dimensions with stainless steel sleeve with the addition of MH after the part numbers
KC M-20-M20 4,550 2,275 400 200 22 20.0 55 200 55.0 listed here. Example: KCRM-10-MH (Inner Ø: 10mm).
For another spherical bearing material than iglidur W300, please add "J" to the part number. Example: KCRM -05-J.
®

Alternative spherical ball materials u Page 993 Alternative spherical ball materials u Page 993

RKM: JKM: Low WKM-MH: J4KM: EK:
Low-cost moisture Standard spherical Low-cost and low Stainless steel
absorption ball with stainless moisture absorption ASEAN 09/2023 ASEAN 09/2023 spherical ball
steel sleeve
878 Online tools and more information u www.igus-asean.com/rod-ends 3D CAD files, prices and delivery times online u www.igus-asean.com/rod-ends 879
