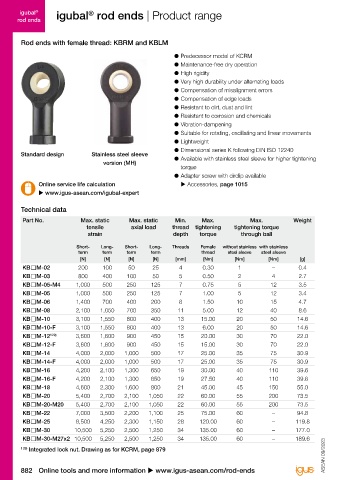

igubal igubal rod ends | Product range igubal rod ends | Product range igubal
®
®
®
rod ends rod ends
Rod ends with female thread: KBRM and KBLM Rod ends with female thread: KBRM and KBLM
Order key
● Predecessor model of KCRM
● Maintenance-free dry operation B Type Size Options
● High rigidity d2 C1
● Very high durability under alternating loads
● Compensation of misalignment errors Thread
● Compensation of edge loads L : Left-hand thread
● Resistant to dirt, dust and lint d1 R : Right-hand thread
● Resistant to corrosion and chemicals
● Vibration-dampening l2 Housing (female thread) Add-on:
● Suitable for rotating, oscillating and linear movements h1 MH : With stainless steel
● Lightweight K series Inner Ø [mm] sleeve
● Dimensional series K following DIN ISO 12240 l1 Thread Metric F : Fine thread
Standard design Stainless steel sleeve
● Available with stainless steel sleeve for higher tightening
version (MH) d4 d3
torque d5 W Material:
®
● Adapter screw with circlip available Housing: igumid G u Page 1190
Online service life calculation u Accessories, page 1015 Spherical ball: iglidur W300 u Page 175
®
u www.igus-asean.com/igubal-expert
Imperial dimensions available
u Page 1154
Technical data
Dimensions [mm]
Part No. Max. static Max. static Min. Max. Max. Weight
tensile axial load thread tightening tightening torque Part No. d1 d2 d3 d4 d5 C1 B h1 l1 l2 W Max.
strain depth torque through ball pivot
E10 without with
stainless stainless angle
Short- Long- Short- Long- Threads Female without stainless with stainless
term term term term thread steel sleeve steel sleeve steel sleeve steel sleeve
[N] [N] [N] [N] [mm] [Nm] [Nm] [Nm] [g] +0.2
KB M-02 200 100 50 25 4 0.30 1 – 0.4 KB M-02 2 9 M2 4.0 4.6 3.0 4 – 12.5 6 17 SW4 30°
KB M-03 800 400 100 50 5 0.50 2 4 2.7 KB M-03 3 13 M3 6.5 8.0 4.5 6 6.2 18.5 8 25 SW6 30°
KB M-05-M4 1,000 500 250 125 7 0.75 5 12 3.5 KB M-05-M4 5 18 M4 9.0 12.0 6.0 8 8.2 27 10 36 SW9 30°
KB M-05 1,000 500 250 125 7 1.00 5 12 3.4 KB M-05 5 18 M5 9.0 12.0 6.0 8 8.2 27 10 36 SW9 30°
KB M-06 1,400 700 400 200 8 1.50 10 15 4.7 KB M-06 6 20 M6 10.0 13.0 7.0 9 9.2 30 12 40 SW11 29°
KB M-08 2,100 1,050 700 350 11 5.00 12 40 8.6 KB M-08 8 24 M8 13.0 16.0 9.0 12 12.2 36 16 48 SW14 25°
KB M-10 3,100 1,550 800 400 13 15.00 20 50 14.6 KB M-10 10 30 M10 15.0 19.0 10.5 14 14.2 43 20 58 SW17 25°
KB M-10-F 3,100 1,550 800 400 13 6.00 20 50 14.6 KB M-10-F 10 30 M10 x 1.25 15.0 19.0 10.5 14 14.2 43 20 58 SW17 25°
KB M-12 129) 3,600 1,800 900 450 15 20.00 30 70 22.0 KB M-12 12 34 M12 – – 12.0 16 16.2 50 25 67 SW17 25°
KB M-12-F 3,600 1,800 900 450 15 15.00 30 70 22.0 KB M-12-F 12 34 M12 x 1.25 18.0 22.0 12.0 16 16.2 50 22 67 SW19 25°
KB M-14 4,000 2,000 1,000 500 17 25.00 35 75 30.9 KB M-14 14 38 M14 20.0 25.0 13.5 19 19.2 57 25 76 SW22 25°
KB M-14-F 4,000 2,000 1,000 500 17 25.00 35 75 30.9 KB M-14-F 14 38 M14 x 1.5 20.0 25.0 13.5 19 19.2 57 25 76 SW22 25°
KB M-16 4,200 2,100 1,300 650 19 30.00 40 110 39.6 KB M-16 16 42 M16 22.0 27.0 15.0 21 21.2 64 28 85 SW22 23°
KB M-16-F 4,200 2,100 1,300 650 19 27.50 40 110 39.6 KB M-16-F 16 42 M16 x 1.5 22.0 27.0 15.0 21 21.2 64 28 85 SW22 23°
KB M-18 4,600 2,300 1,600 800 21 45.00 45 150 55.0 KB M-18 18 46 M18 x 1.5 25.0 31.0 16.5 23 23.2 71 32 94 SW27 23°
KB M-20 5,400 2,700 2,100 1,050 22 60.00 55 200 73.5 KB M-20 20 50 M20 x 1.5 28.0 34.0 18.0 25 25.2 77 33 102 SW30 23°
KB M-20-M20 5,400 2,700 2,100 1,050 22 60.00 55 200 73.5 KB M-20-M20 20 50 M20 x 2.5 28.0 34.0 18.0 25 25.2 77 33 102 SW30 23°
KB M-22 7,000 3,500 2,200 1,100 25 75.00 60 – 94.8 KB M-22 22 56 M22 x 1.5 30.0 37.0 20.0 28 – 84 37 112 SW32 22°
KB M-25 8,500 4,250 2,300 1,150 28 120.00 60 – 119.8 KB M-25 25 60 M24 x 2.0 32.0 41.0 22.0 31 – 94 42 124 SW36 22°
KB M-30 10,500 5,250 2,500 1,250 34 135.00 60 – 177.0 KB M-30 30 70 M30 x 2.0 37.0 50.0 25.0 37 – 110 50 145 SW41 22°
KB M-30-M27x2 10,500 5,250 2,500 1,250 34 135.00 60 – 189.6 KB M-30-M27x2 30 70 M27 x 2.0 37.0 50.0 25.0 37 – 110 50 145 SW41 22°
ASEAN 09/2023 ASEAN 09/2023 listed here. Example: KRBM-10-MH (Inner Ø: 10mm).
129) Integrated lock nut. Drawing as for KCRM, page 879 Rod ends can be ordered in metric dimensions with stainless steel sleeve with the addition of MH after the part numbers
