igubal igubal rod ends | Product range igubal rod ends | Product range igubal
®
®
®
rod ends rod ends

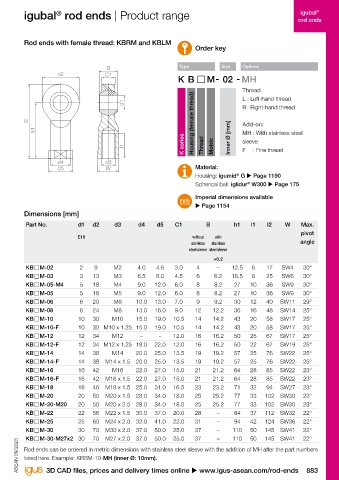

Rod ends with female thread: KBRM and KBLM Rod ends with female thread: KBRM and KBLM
Order key
● Predecessor model of KCRM
● Maintenance-free dry operation B Type Size Options
● High rigidity d2 C1
● Very high durability under alternating loads
● Compensation of misalignment errors Thread
● Compensation of edge loads L : Left-hand thread
● Resistant to dirt, dust and lint d1 R : Right-hand thread
● Resistant to corrosion and chemicals
● Vibration-dampening l2 Housing (female thread) Add-on:
● Suitable for rotating, oscillating and linear movements h1 MH : With stainless steel
● Lightweight K series Inner Ø [mm] sleeve
● Dimensional series K following DIN ISO 12240 l1 Thread Metric F : Fine thread
Standard design Stainless steel sleeve
● Available with stainless steel sleeve for higher tightening
version (MH) d4 d3
torque d5 W Material:
®
● Adapter screw with circlip available Housing: igumid G u Page 1190
Online service life calculation u Accessories, page 1015 Spherical ball: iglidur W300 u Page 175
®
u www.igus-asean.com/igubal-expert
Imperial dimensions available
u Page 1154
Technical data
Dimensions [mm]
Part No. Max. static Max. static Min. Max. Max. Weight
tensile axial load thread tightening tightening torque Part No. d1 d2 d3 d4 d5 C1 B h1 l1 l2 W Max.
strain depth torque through ball pivot
E10 without with
stainless stainless angle
Short- Long- Short- Long- Threads Female without stainless with stainless
term term term term thread steel sleeve steel sleeve steel sleeve steel sleeve
[N] [N] [N] [N] [mm] [Nm] [Nm] [Nm] [g] +0.2
KB M-02 200 100 50 25 4 0.30 1 – 0.4 KB M-02 2 9 M2 4.0 4.6 3.0 4 – 12.5 6 17 SW4 30°
KB M-03 800 400 100 50 5 0.50 2 4 2.7 KB M-03 3 13 M3 6.5 8.0 4.5 6 6.2 18.5 8 25 SW6 30°
KB M-05-M4 1,000 500 250 125 7 0.75 5 12 3.5 KB M-05-M4 5 18 M4 9.0 12.0 6.0 8 8.2 27 10 36 SW9 30°
KB M-05 1,000 500 250 125 7 1.00 5 12 3.4 KB M-05 5 18 M5 9.0 12.0 6.0 8 8.2 27 10 36 SW9 30°
KB M-06 1,400 700 400 200 8 1.50 10 15 4.7 KB M-06 6 20 M6 10.0 13.0 7.0 9 9.2 30 12 40 SW11 29°
KB M-08 2,100 1,050 700 350 11 5.00 12 40 8.6 KB M-08 8 24 M8 13.0 16.0 9.0 12 12.2 36 16 48 SW14 25°
KB M-10 3,100 1,550 800 400 13 15.00 20 50 14.6 KB M-10 10 30 M10 15.0 19.0 10.5 14 14.2 43 20 58 SW17 25°
KB M-10-F 3,100 1,550 800 400 13 6.00 20 50 14.6 KB M-10-F 10 30 M10 x 1.25 15.0 19.0 10.5 14 14.2 43 20 58 SW17 25°
KB M-12 129) 3,600 1,800 900 450 15 20.00 30 70 22.0 KB M-12 12 34 M12 – – 12.0 16 16.2 50 25 67 SW17 25°
KB M-12-F 3,600 1,800 900 450 15 15.00 30 70 22.0 KB M-12-F 12 34 M12 x 1.25 18.0 22.0 12.0 16 16.2 50 22 67 SW19 25°
KB M-14 4,000 2,000 1,000 500 17 25.00 35 75 30.9 KB M-14 14 38 M14 20.0 25.0 13.5 19 19.2 57 25 76 SW22 25°
KB M-14-F 4,000 2,000 1,000 500 17 25.00 35 75 30.9 KB M-14-F 14 38 M14 x 1.5 20.0 25.0 13.5 19 19.2 57 25 76 SW22 25°
KB M-16 4,200 2,100 1,300 650 19 30.00 40 110 39.6 KB M-16 16 42 M16 22.0 27.0 15.0 21 21.2 64 28 85 SW22 23°
KB M-16-F 4,200 2,100 1,300 650 19 27.50 40 110 39.6 KB M-16-F 16 42 M16 x 1.5 22.0 27.0 15.0 21 21.2 64 28 85 SW22 23°
KB M-18 4,600 2,300 1,600 800 21 45.00 45 150 55.0 KB M-18 18 46 M18 x 1.5 25.0 31.0 16.5 23 23.2 71 32 94 SW27 23°
KB M-20 5,400 2,700 2,100 1,050 22 60.00 55 200 73.5 KB M-20 20 50 M20 x 1.5 28.0 34.0 18.0 25 25.2 77 33 102 SW30 23°
KB M-20-M20 5,400 2,700 2,100 1,050 22 60.00 55 200 73.5 KB M-20-M20 20 50 M20 x 2.5 28.0 34.0 18.0 25 25.2 77 33 102 SW30 23°
KB M-22 7,000 3,500 2,200 1,100 25 75.00 60 – 94.8 KB M-22 22 56 M22 x 1.5 30.0 37.0 20.0 28 – 84 37 112 SW32 22°
KB M-25 8,500 4,250 2,300 1,150 28 120.00 60 – 119.8 KB M-25 25 60 M24 x 2.0 32.0 41.0 22.0 31 – 94 42 124 SW36 22°
KB M-30 10,500 5,250 2,500 1,250 34 135.00 60 – 177.0 KB M-30 30 70 M30 x 2.0 37.0 50.0 25.0 37 – 110 50 145 SW41 22°
KB M-30-M27x2 10,500 5,250 2,500 1,250 34 135.00 60 – 189.6 KB M-30-M27x2 30 70 M27 x 2.0 37.0 50.0 25.0 37 – 110 50 145 SW41 22°
ASEAN 09/2023 ASEAN 09/2023 listed here. Example: KRBM-10-MH (Inner Ø: 10mm).
129) Integrated lock nut. Drawing as for KCRM, page 879 Rod ends can be ordered in metric dimensions with stainless steel sleeve with the addition of MH after the part numbers

882 Online tools and more information u www.igus-asean.com/rod-ends 3D CAD files, prices and delivery times online u www.igus-asean.com/rod-ends 883
