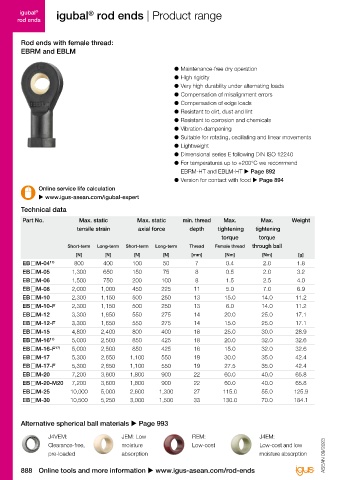

igubal igubal rod ends | Product range igubal rod ends | Product range igubal
®
®
®
rod ends rod ends
Rod ends with female thread: Rod ends with female thread:
EBRM and EBLM EBRM and EBLM Order key

B
● Maintenance-free dry operation d2 C1 Type Size
● High rigidity
● Very high durability under alternating loads Options:
● Compensation of misalignment errors d1 Thread
● Compensation of edge loads L : Left-hand thread
● Resistant to dirt, dust and lint
l2 R : Right-hand thread
● Resistant to corrosion and chemicals Add-on:
● Vibration-dampening h1 Housing (female thread) F : Fine thread
● Suitable for rotating, oscillating and linear movements
● Lightweight l1 E series Thread Inner Ø [mm]
● Dimensional series E following DIN ISO 12240 d4 d3 Metric
● For temperatures up to +200°C we recommend d5 W
EBRM-HT and EBLM-HT u Page 892 Spherical ball material
®
®
● Version for contact with food u Page 894 Material: Blank : iglidur W300 J4 : iglidur J4
®
®
®
Online service life calculation Housing: igumid G u Page 1190 R : iglidur R J4V : iglidur J4V
®
®
u www.igus-asean.com/igubal-expert Spherical ball: iglidur W300 u Page 175 J : iglidur J EK : Stainless steel
(AISI 303)
Technical data Dimensions [mm]
Part No. Max. static Max. static min. thread Max. Max. Weight Part No. d1 d2 d3 d4 d5 C1 B h1 l1 l2 W Max.
tensile strain axial force depth tightening tightening E10 pivot
torque torque angle
Short-term Long-term Short-term Long-term Thread Female thread through ball EB M-04 17) 4 15 M4 – – 3.5 5 22.5 9.5 30.0 SW8 33°
[N] [N] [N] [N] [mm] [Nm] [Nm] [g] EB M-05 5 19 M5 9.0 11 4.4 6 30 12.0 39.5 SW9 33°
EB M-04 17) 800 400 100 50 7 0.4 2.0 1.8 EB M-06 6 21 M6 11.0 13 4.4 6 30 12.0 40.5 SW11 27°
EB M-05 1,300 650 150 75 8 0.5 2.0 3.2 EB M-08 8 24 M8 13.0 16 6.0 8 36 14.0 48.0 SW14 24°
EB M-06 1,500 750 200 100 8 1.5 2.5 4.0 EB M-10 10 29 M10 15.0 19 7.0 9 43 18.0 57.5 SW17 24°
EB M-08 2,000 1,000 450 225 11 5.0 7.0 6.9 EB M-10-F 10 29 M10 x 1.25 15.0 19 7.0 9 43 18.0 57.5 SW17 24°
EB M-10 2,300 1,150 500 250 13 15.0 14.0 11.2 EB M-12 12 34 M12 18.0 22 8.0 10 50 20.0 67.0 SW19 21°
EB M-10-F 2,300 1,150 500 250 13 6.0 14.0 11.2 EB M-12-F 12 34 M12 x 1.25 18.0 22 8.0 10 50 20.0 67.0 SW19 21°
EB M-12 3,300 1,650 550 275 14 20.0 25.0 17.1 EB M-15 15 40 M14 21.0 26 10.0 12 61 26.0 81.0 SW22 21°
EB M-12-F 3,300 1,650 550 275 14 15.0 25.0 17.1 EB M-16 17) 16 43 M16 – – 10.5 13 64.5 26.5 86.0 SW22 21°
EB M-15 4,800 2,400 800 400 18 25.0 30.0 28.9 EB M-16-F 17) 16 43 M16 x 1.5 – – 10.5 13 64.5 26.5 86.0 SW22 21°
EB M-16 17) 5,000 2,500 850 425 18 20.0 32.0 32.6 EB M-17 17 46 M16 24.0 30 11.0 14 67 27.0 90.0 SW27 18°
EB M-16-F 17) 5,000 2,500 850 425 18 15.0 32.0 32.6 EB M-17-F 17 46 M16 x 1.5 24.0 30 11.0 14 67 27.0 90.0 SW27 18°
EB M-17 5,300 2,650 1,100 550 19 30.0 35.0 42.4 EB M-20 20 53 M20 x 1.5 27.0 34 13.0 16 77 31.0 103.5 SW30 16°
EB M-17-F 5,300 2,650 1,100 550 19 27.5 35.0 42.4 EB M-20-M20 20 53 M20 x 2.5 27.0 34 13.0 16 77 31.0 103.5 SW30 16°
EB M-20 7,200 3,600 1,800 900 22 60.0 40.0 65.8 EB M-25 25 64 M24 x 2.0 34.0 41 17.0 20 94 38.0 126.5 SW36 16°
EB M-20-M20 7,200 3,600 1,800 900 22 60.0 40.0 65.8 EB M-30 30 73 M30 x 2.0 41.0 48 19.0 22 110 47.0 146.5 SW41 13°
EB M-25 10,000 5,000 2,600 1,300 27 115.0 55.0 125.9 17) Special design with hexagonal foot
EB M-30 10,500 5,250 3,000 1,500 33 130.0 70.0 184.1 For another spherical bearing material than iglidur W300, please add "J" to the part number. Example: EBRM -05-J.
®

Alternative spherical ball materials u Page 993 Alternative spherical ball materials u Page 993

J4VEM: JEM: Low REM: J4EM: EK:
Clearance-free, moisture Low-cost Low-cost and low Stainless steel Imperial dimensions available
pre-loaded absorption moisture absorption ASEAN 09/2023 ASEAN 09/2023 spherical ball u Page 1152

888 Online tools and more information u www.igus-asean.com/rod-ends 3D CAD files, prices and delivery times online u www.igus-asean.com/rod-ends 889
