igubal igubal rod ends | Product range igubal rod ends | Product range igubal
®
®
rod ends rod ends

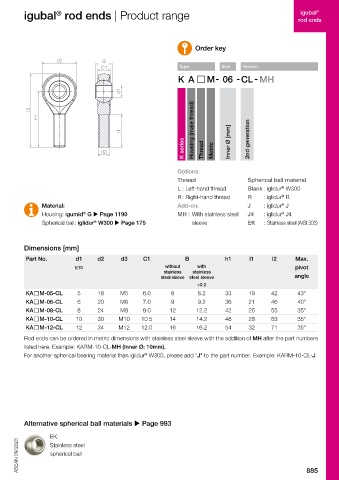

Rod ends, male thread; 2nd generation:
KARM CL Order key

d2 B
● New design resists dirt C1 Type Size Version
● Compensation of misalignment errors
● Lightweight
● Absolute corrosion resistance d1
● Available with stainless steel sleeve for higher
tightening torque l2
● Dimensional series K following DIN ISO 12240 h1
● Adapter screw with circlip available
l1 Housing (male thread)
u Accessories, page 1015 Inner Ø [mm] 2nd generation
K series Thread
d3 Metric

Options:
Thread Spherical ball material
L : Left-hand thread Blank : iglidur W300
®
R : Right-hand thread R : iglidur R
®
®
Material: Add-on: J : iglidur J
®
Housing: igumid G u Page 1190 MH : With stainless steel J4 : iglidur J4
®
®
Spherical ball: iglidur W300 u Page 175 sleeve EK : Stainless steel (AISI 303)

Technical data Dimensions [mm]
Part No. Max. static Max. static min. Max. Max. Weight Part No. d1 d2 d3 C1 B h1 l1 l2 Max.
tensile strain axial force thread tightening tightening torque E10 without with pivot
stainless stainless
depth torque through ball steel sleeve steel sleeve angle
Short-term Long-term Short-term Long-term Thread Male thread without with +0.2
stainless stainless
steel sleeve steel sleeve KA M-05-CL 5 18 M5 6.0 8 8.2 33 19 42 43°
[N] [N] [N] [N] [mm] [Nm] [Nm] [Nm] [g] KA M-06-CL 6 20 M6 7.0 9 9.2 36 21 46 40°
KA M-05-CL 800 400 80 40 13 0.4 5 12 2.3 KA M-08-CL 8 24 M8 9.0 12 12.2 42 25 55 35°
KA M-06-CL 1,000 500 100 50 15 0.5 10 15 3.5 KA M-10-CL 10 30 M10 10.5 14 14.2 48 28 63 35°
KA M-08-CL 1,700 850 200 100 18 2.0 12 40 6.2 KA M-12-CL 12 34 M12 12.0 16 16.2 54 32 71 35°
KA M-10-CL 2,500 1,250 300 150 20 5.0 20 50 11.2 Rod ends can be ordered in metric dimensions with stainless steel sleeve with the addition of MH after the part numbers
KA M-12-CL 2,700 1,350 400 200 22 6.0 30 70 15.6 listed here. Example: KARM-10-CL-MH (Inner Ø: 10mm).
For another spherical bearing material than iglidur W300, please add "J" to the part number. Example: KARM -10-CL-J.
®

Alternative spherical ball materials u Page 993 Alternative spherical ball materials u Page 993

RKM: JKM: Low WKM-MH: J4KM: EK:
Low-cost moisture Standard spherical Low-cost and low Stainless steel
absorption ball with stainless moisture absorption ASEAN 09/2023 ASEAN 09/2023 spherical ball
steel sleeve
884 Online tools and more information u www.igus-asean.com/rod-ends 885
