igubal igubal rod ends | Product range igubal rod ends | Product range igubal
®
®
®
rod ends rod ends

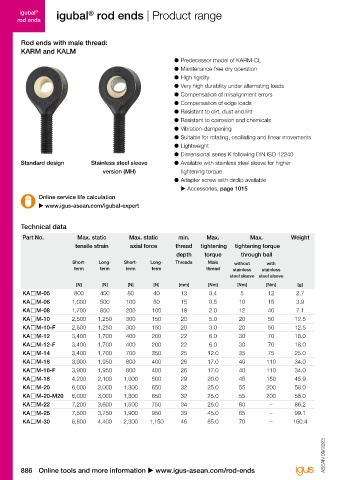

Rod ends with male thread: Rod ends with male thread:
KARM and KALM KARM and KALM Order key

● Predecessor model of KARM-CL B
● Maintenance-free dry operation d2 C1 Type Size Options
● High rigidity
● Very high durability under alternating loads Thread
● Compensation of misalignment errors L : Left-hand thread
● Compensation of edge loads d1 R : Right-hand thread
● Resistant to dirt, dust and lint
● Resistant to corrosion and chemicals l2 Add-on:
● Vibration-dampening h1 Housing (male thread) MH : With stainless steel
● Suitable for rotating, oscillating and linear movements l1 sleeve
● Lightweight K series Thread Inner Ø [mm] F : Fine thread
● Dimensional series K following DIN ISO 12240 d3 Metric
Standard design Stainless steel sleeve ● Available with stainless steel sleeve for higher
version (MH) tightening torque Material:
®
● Adapter screw with circlip available Housing: igumid G u Page 1190
u Accessories, page 1015 Spherical ball: iglidur W300 u Page 175
®
Online service life calculation
u www.igus-asean.com/igubal-expert Imperial dimensions available
u Page 1153

Technical data Dimensions [mm]
Part No. Max. static Max. static min. Max. Max. Weight Part No. d1 d2 d3 C1 B h1 l1 l2 Max.
tensile strain axial force thread tightening tightening torque E10 without with pivot
stainless
stainless
depth torque through ball steel sleeve steel sleeve angle
Short- Long- Short- Long- Threads Male without with +0.2
term term term term thread stainless stainless KA M-05 5 18 M5 6.0 8 8.2 33 19 42 30°
steel sleeve steel sleeve
KA M-06 6 20 M6 7.0 9 9.2 36 21 46 29°
[N] [N] [N] [N] [mm] [Nm] [Nm] [Nm] [g] KA M-08 8 24 M8 9.0 12 12.2 42 25 55 25°
KA M-05 800 400 80 40 13 0.4 5 12 2.7 KA M-10 10 30 M10 10.5 14 14.2 48 28 63 25°
KA M-06 1,000 500 100 50 15 0.5 10 15 3.9 KA M-10-F 10 30 M10 x 1.25 10.5 14 14.2 48 28 63 25°
KA M-08 1,700 850 200 100 18 2.0 12 40 7.1 KA M-12 12 34 M12 12.0 16 16.2 54 32 71 25°
KA M-10 2,500 1,250 300 150 20 5.0 20 50 12.5 KA M-12-F 12 34 M12 x 1.25 12.0 16 16.2 54 32 71 25°
KA M-10-F 2,500 1,250 300 150 20 3.0 20 50 12.5 KA M-14 14 38 M14 13.5 19 19.2 61 36 79 25°
KA M-12 3,400 1,700 400 200 22 6.0 30 70 18.0 KA M-16 16 42 M16 15.0 21 21.2 66 37 88 23°
KA M-12-F 3,400 1,700 400 200 22 6.0 30 70 18.0 KA M-16-F 16 42 M16 x 1.5 15.0 21 21.2 66 37 88 23°
KA M-14 3,400 1,700 700 350 25 12.0 35 75 25.0 KA M-18 18 46 M18 x 1.5 16.5 23 23.2 72 41 96 23°
KA M-16 3,900 1,950 800 400 26 17.0 40 110 34.0 KA M-20 20 50 M20 x 1.5 18.0 25 25.2 78 45 104 23°
KA M-16-F 3,900 1,950 800 400 26 17.0 40 110 34.0 KA M-20-M20 20 50 M20 x 2.5 18.0 25 25.2 78 45 104 23°
KA M-18 4,200 2,100 1,000 500 29 20.0 45 150 45.9 KA M-22 22 56 M22 x 1.5 20.0 28 – 84 48 112 22°
KA M-20 6,000 3,000 1,300 650 32 25.0 55 200 58.0 KA M-25 25 61 M24 x 2.0 22.0 31 – 95 55 126 22°
KA M-20-M20 6,000 3,000 1,300 650 32 25.0 55 200 58.0 KA M-30 30 71 M30 x 2.0 25.0 37 – 112 66 147 22°
KA M-22 7,200 3,600 1,500 750 34 25.0 60 – 86.2
KA M-25 7,500 3,750 1,900 950 39 45.0 65 – 99.1 Rod ends can be ordered in metric dimensions with stainless steel sleeve with the addition of MH after the part numbers
KA M-30 8,800 4,400 2,300 1,150 46 85.0 70 – 160.4 listed here. Example: KABM-10-MH (Inner Ø: 10mm).

ASEAN 09/2023 ASEAN 09/2023

886 Online tools and more information u www.igus-asean.com/rod-ends 3D CAD files, prices and delivery times online u www.igus-asean.com/rod-ends 887
