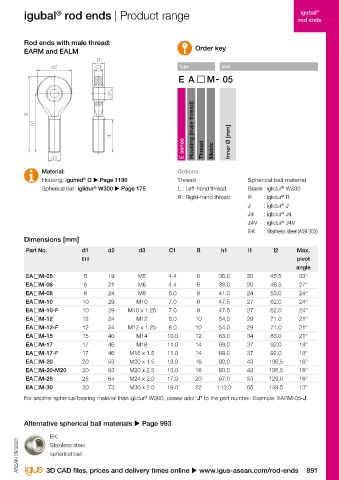

igubal igubal rod ends | Product range igubal rod ends | Product range igubal
®
®
rod ends rod ends
Rod ends with male thread: Rod ends with male thread:
EARM and EALM EARM and EALM Order key

● Maintenance-free dry operation B
● High rigidity d2 C1 Type Size
● Very high durability under alternating loads
● Compensation of misalignment errors
● Compensation of edge loads d1
● Resistant to dirt, dust and lint
● Resistant to corrosion and chemicals
l2
● Vibration-dampening h1
● Suitable for rotating, oscillating and linear movements Housing (male thread)
● Lightweight l1
● Dimensional series E following DIN ISO 12240 E series Thread Inner Ø [mm]
● For temperatures up to +200°C we recommend Metric
d3
EARM-HT and EALM-HT u Page 893
Online service life calculation Material: Options:
®
u www.igus-asean.com/igubal-expert Housing: igumid G u Page 1190 Thread Spherical ball material
Spherical ball: iglidur W300 u Page 175 L : Left-hand thread Blank : iglidur W300
®
®
R : Right-hand thread R : iglidur R
®
J : iglidur J
®
J4 : iglidur J4
®
J4V : iglidur J4V
®
EK : Stainless steel (AISI 303)
Technical data Dimensions [mm]
Part No. Max. static Max. static min. thread Max. Max. Weight Part No. d1 d2 d3 C1 B h1 l1 l2 Max.
tensile strain axial force depth tightening tightening E10 pivot
torque torque angle
Short-term Long-term Short-term Long-term Thread Male thread through ball EA M-05 5 19 M5 4.4 6 36.0 20 45.5 33°
[N] [N] [N] [N] [mm] [Nm] [Nm] [g] EA M-06 6 21 M6 4.4 6 36.0 20 46.5 27°
EA M-05 550 275 50 25 14 0.4 2.0 2.2 EA M-08 8 24 M8 6.0 8 41.0 24 53.0 24°
EA M-06 850 425 80 40 14 0.5 2.5 2.7 EA M-10 10 29 M10 7.0 9 47.5 27 62.0 24°
EA M-08 1,600 800 160 80 17 2.0 7.0 5.1 EA M-10-F 10 29 M10 x 1.25 7.0 9 47.5 27 62.0 24°
EA M-10 2,600 1,300 250 125 19 5.0 14.0 8.4 EA M-12 12 34 M12 8.0 10 54.0 29 71.0 21°
EA M-10-F 2,600 1,300 250 125 19 3.0 14.0 8.4 EA M-12-F 12 34 M12 x 1.25 8.0 10 54.0 29 71.0 21°
EA M-12 3,100 1,550 300 150 20 6.0 25.0 14.3 EA M-15 15 40 M14 10.0 12 63.0 34 83.0 21°
EA M-12-F 3,100 1,550 300 150 20 6.0 25.0 14.3 EA M-17 17 46 M16 11.0 14 69.0 37 92.0 18°
EA M-15 3,400 1,700 600 300 24 12.5 30.0 21.1 EA M-17-F 17 46 M16 x 1.5 11.0 14 69.0 37 92.0 18°
EA M-17 3,600 1,800 900 450 26 17.5 35.0 30.2 EA M-20 20 53 M20 x 1.5 13.0 16 80.0 43 106,5 16°
EA M-17-F 3,600 1,800 900 450 26 21.0 35.0 30.2 EA M-20-M20 20 53 M20 x 2.5 13.0 16 80.0 43 106,5 16°
EA M-20 6,800 3,400 1,700 850 30 25.0 40.0 57.3 EA M-25 25 64 M24 x 2.0 17.0 20 97.0 53 129.0 16°
EA M-20-M20 6,800 3,400 1,700 850 30 25.0 40.0 57.3 EA M-30 30 73 M30 x 2.0 19.0 22 113.0 65 149.5 13°
EA M-25 7,000 3,500 1,000 500 37 45.0 55.0 94.8 For another spherical bearing material than iglidur W300, please add "J" to the part number. Example: EARM -05-J.
®
EA M-30 7,000 3,500 2,000 1,000 46 85.0 70.0 156.4

Alternative spherical ball materials u Page 993 Alternative spherical ball materials u Page 993

J4VEM: JEM: Low REM: J4EM: EK:
Clearance-free, moisture Low-cost Low-cost and low Stainless steel
pre-loaded absorption moisture absorption ASEAN 09/2023 ASEAN 09/2023 spherical ball

890 Online tools and more information u www.igus-asean.com/rod-ends 3D CAD files, prices and delivery times online u www.igus-asean.com/rod-ends 891
