igubal igubal rod ends | Product range igubal rod ends | Product range igubal
®
®
®
rod ends rod ends

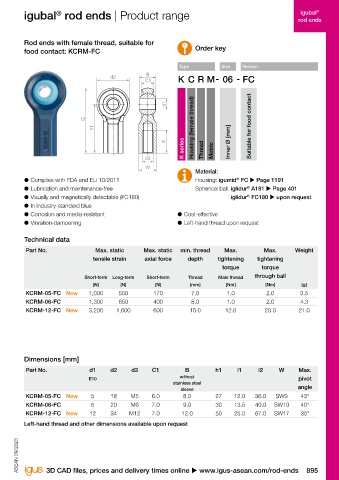

Rod ends with female thread, suitable for Rod ends with female thread, suitable for
food contact: EBRM-FC Order key food contact: KCRM-FC Order key

Type Size Version Type Size Version
B B B
d2 C1 d2 d2 C1 C1

d1 d1 d1

l2 l2 l2
h1 Housing (female thread) Suitable for food contact h1 h1 Housing (female thread) Suitable for food contact
E series Thread Metric K series Thread Metric
l1 Inner Ø [mm] l1 l1 Inner Ø [mm]
d4 d3 d3 d3
d5 W W W
Material: Material:
®
®
● Complies with FDA and EU 10/2011 Housing: igumid FC u Page 1191 ● Complies with FDA and EU 10/2011 Housing: igumid FC u Page 1191
®
®
● Lubrication and maintenance-free Spherical ball: iglidur A181 u Page 401 ● Lubrication and maintenance-free Spherical ball: iglidur A181 u Page 401
®
®
● Visually and magnetically detectable (FC180) iglidur FC180 u upon request ● Visually and magnetically detectable (FC180) iglidur FC180 u upon request
● In industry-standard blue ● In industry-standard blue
● Corrosion and media-resistant ● Cost-effective ● Corrosion and media-resistant ● Cost-effective
● Vibration-dampening ● Left-hand thread upon request ● Vibration-dampening ● Left-hand thread upon request
Technical data Technical data
Part No. Max. static Max. static min. thread Max. Max. Weight Part No. Max. static Max. static min. thread Max. Max. Weight
tensile strain axial force depth tightening tightening tensile strain axial force depth tightening tightening
torque torque torque torque
Short-term Long-term Short-term Long-term Thread Female thread through ball Short-term Long-term Short-term Thread Male thread through ball
[N] [N] [N] [N] [mm] [Nm] [Nm] [g] [N] [N] [N] [mm] [Nm] [Nm] [g]
EBRM-04-FC New 700 350 100 50 7.0 0.4 1.5 1.9 KCRM-05-FC New 1,000 500 170 7.0 1.0 2.0 3.5
EBRM-05-FC New 1,100 550 150 75 8.0 0.5 1.5 3.9 KCRM-06-FC 1,300 650 400 8.0 1.0 2.0 4.3
EBRM-06-FC 1,300 650 300 150 8.0 1.5 2.0 4.0 KCRM-12-FC New 3,200 1,600 600 15.0 12.0 20.0 21.0
EBRM-08-FC 1,900 950 500 250 11.0 5.0 4.0 7.0
EBRM-10-FC 2,220 1,100 500 250 13.0 10.0 6.0 11.4
EBRM-10-FC-F 2,220 1,100 500 250 13.0 10.0 6.0 11.4
EBRM-12-FC 3,000 1,500 800 400 14.0 15.0 6.0 17.4

Dimensions [mm] Dimensions [mm]
Part No. d1 d2 d3 d4 d5 C1 B h1 l1 l2 W Max. Part No. d1 d2 d3 C1 B h1 l1 l2 W Max.
E10 pivot E10 without pivot
stainless steel
angle sleeve angle
EBRM-04-FC New 4 15 M4 – – 3.5 5 22.5 9.5 30.0 SW8 33° KCRM-05-FC New 5 18 M5 6.0 8.0 27 12.0 36.0 SW9 43°
EBRM-05-FC New 5 19 M5 9.0 11 4.4 6 30 12 40.5 SW9 33° KCRM-06-FC 6 20 M6 7.0 9.0 30 13.5 40.0 SW10 40°
EBRM-06-FC 6 21 M6 11.0 13 4.4 6 30 12 40.5 SW11 27° KCRM-12-FC New 12 34 M12 7.0 12.0 50 25.0 67.0 SW17 35°
EBRM-08-FC 8 24 M8 13.0 16 6.0 8 36 14 48.0 SW14 24° Left-hand thread and other dimensions available upon request
EBRM-10-FC 10 29 M10 15.0 19 7.0 9 43 18 57.5 SW17 24°
EBRM-10-FC-F 10 29 M10 x 1.25 15.0 19 7.0 9 43 18 57.5 SW17 24°
EBRM-12-FC 12 34 M12 18.0 22 8.0 10 50 20 67.0 SW19 21°

Left-hand thread and other dimensions available upon request ASEAN 09/2023 ASEAN 09/2023
894 Online tools and more information u www.igus-asean.com/rod-ends 3D CAD files, prices and delivery times online u www.igus-asean.com/rod-ends 895
