igubal igubal rod ends | Product range igubal rod ends | Product range igubal
®
®
rod ends rod ends

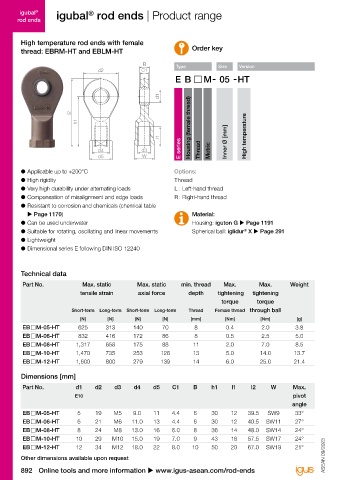

High temperature rod ends with female High temperature rod ends with male
thread: EBRM-HT and EBLM-HT Order key thread: EARM-HT and EALM-HT Order key

B Type Size Version B Type Size Version
d2 C1 d2 C1

d1 d1

l2 l2
h1 Housing (female thread) h1

l1 Inner Ø [mm] High temperature l1 Housing (male thread) Inner Ø [mm] High temperature
d4 d3 E series Thread Metric E series Thread Metric
d5 W d3

● Applicable up to +200°C Options: ● Applicable up to +200°C Options:
● High rigidity Thread ● High rigidity Thread
● Very high durability under alternating loads L : Left-hand thread ● Very high durability under alternating loads L : Left-hand thread
● Compensation of misalignment and edge loads R : Right-hand thread ● Compensation of misalignment and edge loads R : Right-hand thread
● Resistant to corrosion and chemicals (chemical table ● Resistant to corrosion and chemicals (chemical table
u Page 1170) Material: u Page 1170) Material:
● Can be used underwater Housing: iguton G u Page 1191 ● Can be used underwater Housing: iguton G u Page 1191
®
®
● Suitable for rotating, oscillating and linear movements Spherical ball: iglidur X u Page 291 ● Suitable for rotating, oscillating and linear movements Spherical ball: iglidur X u Page 291
● Lightweight ● Lightweight
● Dimensional series E following DIN ISO 12240 ● Dimensional series E following DIN ISO 12240

Technical data Technical data

Part No. Max. static Max. static min. thread Max. Max. Weight Part No. Max. static Max. static min. thread Max. Max. Weight
tensile strain axial force depth tightening tightening tensile strain axial force depth tightening tightening
torque torque torque torque
Short-term Long-term Short-term Long-term Thread Female thread through ball Short-term Long-term Short-term Long-term Thread Male thread through ball
[N] [N] [N] [N] [mm] [Nm] [Nm] [g] [N] [N] [N] [N] [mm] [Nm] [Nm] [g]
EB M-05-HT 625 313 140 70 8 0.4 2.0 3.8 EA M-05-HT 380 190 20 10 14 0.4 2.0 2.8
EB M-06-HT 832 416 172 86 8 0.5 2.5 5.0 EA M-06-HT 600 300 30 15 14 0.5 2.5 3.4
EB M-08-HT 1,317 658 175 88 11 2.0 7.0 8.5 EA M-08-HT 931 465 48 24 17 2.0 7.0 6.1
EB M-10-HT 1,470 735 253 126 13 5.0 14.0 13.7 EA M-10-HT 1,125 563 57 28 19 5.0 14.0 10.2
EB M-12-HT 1,600 800 279 139 14 6.0 25.0 21.4 EA M-12-HT 1,200 600 65 33 20 6.0 25.0 15.7

Dimensions [mm] Dimensions [mm]
Part No. d1 d2 d3 d4 d5 C1 B h1 l1 l2 W Max. Part No. d1 d2 d3 C1 B h1 l1 l2 Max.
E10 pivot E10 pivot
angle angle
EB M-05-HT 5 19 M5 9.0 11 4.4 6 30 12 39.5 SW9 33° EA M-05-HT 5 19 M5 4.4 6 36.0 20 45.5 33°
EB M-06-HT 6 21 M6 11.0 13 4.4 6 30 12 40.5 SW11 27° EA M-06-HT 6 21 M6 4.4 6 36.0 20 46.5 27°
EB M-08-HT 8 24 M8 13.0 16 6.0 8 36 14 48.0 SW14 24° EA M-08-HT 8 24 M8 6.0 8 41.0 24 53.0 24°
EB M-10-HT 10 29 M10 15.0 19 7.0 9 43 18 57.5 SW17 24° EA M-10-HT 10 29 M10 7.0 9 47.5 27 62.0 24°
EB M-12-HT 12 34 M12 18.0 22 8.0 10 50 20 67.0 SW19 21° EA M-12-HT 12 34 M12 8.0 10 54.0 29 71.0 21°

Other dimensions available upon request ASEAN 09/2023 ASEAN 09/2023 Other dimensions available upon request
892 Online tools and more information u www.igus-asean.com/rod-ends 3D CAD files, prices and delivery times online u www.igus-asean.com/rod-ends 893
