P. 117
drylin W drylin W
®
®
®
®
hybrid roller drylin W hybrid roller bearings | Product range drylin W hybrid roller bearings | Product range hybrid roller
bearings bearings

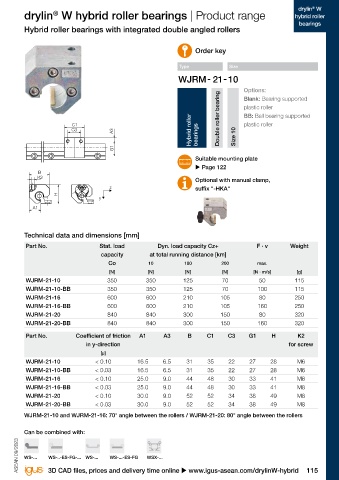

Hybrid roller bearings with a plastic roller Hybrid roller bearings with integrated double angled rollers
Order key Order key
Type Size Type Size
C1
C3 Options: Options:
A3
Blank: Bearing supported Blank: Bearing supported
G1 plastic roller plastic roller
C1 BB: Ball bearing supported Double roller bearing BB: Ball bearing supported
C3 With single roller plastic roller plastic roller
A3 Hybrid roller bearings Hybrid roller bearings
G1 Size 10 Size 10
WJRM-01-10
WJRM-01-16 WJRM-01-16 Suitable mounting plate Suitable mounting plate
WJRM-01-20 WJRM-01-20
H B2 u Page 122 u Page 122
K3
y z Installation position 02 in installation size Optional with manual clamp,
A1 WJRM-01-10
WJRM-01-16 K2 B WJRM-01-16 Q2 z y Ø10 when using a WJRM-02-10 hybrid roller y z suffix "-HKA"
WJRM-01-20 WJRM-01-20
H B2 bearing z y
K3 Q1
A1
Installation B Installation
K2 Q2
position 01 position 02
Q1
Technical data and dimensions [mm] Technical data and dimensions [mm]
Part No. Stat. load Dyn. load capacity Cy+ F · v Weight Part No. Stat. load Dyn. load capacity Cz+ F · v Weight
capacity at total running distance [km] capacity at total running distance [km]
Co 10 100 200 max. Co 10 100 200 max.
[N] [N] [N] [N] [N · m/s] [g] [N] [N] [N] [N] [N · m/s] [g]
WJRM-01-10 71) 250 250 90 50 50 46 WJRM-21-10 350 350 125 70 50 115
WJRM-01-10-BB 71) 250 250 90 50 100 46 WJRM-21-10-BB 350 350 125 70 100 115
WJRM-01-16 400 400 140 70 80 131 WJRM-21-16 600 600 210 105 80 250
WJRM-01-16-BB 400 400 140 70 160 131 WJRM-21-16-BB 600 600 210 105 160 250
WJRM-01-20 550 550 200 100 80 232 WJRM-21-20 840 840 300 150 80 320
WJRM-01-20-BB 550 550 200 100 160 232 WJRM-21-20-BB 840 840 300 150 160 320
Part No. Coefficient of friction A1 A3 B B2 C1 C3 G1 H K2 for K3 for Q1 Q2 Part No. Coefficient of friction A1 A3 B C1 C3 G1 H K2
in z-direction thread screw in y-direction for screw
[µ] [µ]
WJRM-01-10 71) < 0.10 16.5 6.5 25.3 2.5 35 22 27 18 M6 M5 – – WJRM-21-10 < 0.10 16.5 6.5 31 35 22 27 28 M6
WJRM-01-10-BB 71) < 0.03 16.5 6.5 25.3 2.5 35 22 27 18 M6 M5 – – WJRM-21-10-BB < 0.03 16.5 6.5 31 35 22 27 28 M6
WJRM-01-16 < 0.10 25.0 9.0 34.5 5.0 48 30 33 27 M8 M6 32 28 WJRM-21-16 < 0.10 25.0 9.0 44 48 30 33 41 M8
WJRM-01-16-BB < 0.03 25.0 9.0 34.5 5.0 48 30 33 27 M8 M6 32 28 WJRM-21-16-BB < 0.03 25.0 9.0 44 48 30 33 41 M8
WJRM-01-20 < 0.10 30.0 9.0 42.5 6.0 52 34 38 36 M8 M6 37 37 WJRM-21-20 < 0.10 30.0 9.0 52 52 34 38 49 M8
WJRM-01-20-BB < 0.03 30.0 9.0 42.5 6.0 52 34 38 36 M8 M6 37 37 WJRM-21-20-BB < 0.03 30.0 9.0 52 52 34 38 49 M8
71) Deviating from WJRM-02-10, available with an expanded opening angle for installation position 02 WJRM-21-10 and WJRM-21-16: 70° angle between the rollers / WJRM-21-20: 80° angle between the rollers
Can be combined with: Can be combined with:
ASEAN 09/2023 ASEAN 09/2023
WS-... WS-..-ES-FG-... WS-... WS-...-ES-FG WSX-... WS-... WS-..-ES-FG-... WS-... WS-...-ES-FG WSX-...
114 Online tools and more information u www.igus-asean.com/drylinW-hybrid 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinW-hybrid 115
